TCL5740 57 mm Micro Brushless DC Motor, 12/24 V

Specifications

Model: TCL5740-1245 / TCL5740-2445

Rated Voltage: 12 V / 24 V

Rated Power: 44 W / 70 W

Rated Speed: 3450 rpm / 3150 rpm

Share as

Request A Quote

Download PDF

Introduction

The TCL5740 is a compact 57 mm brushless DC motor available for 12 V / 24 V operation. The supplied performance table covers rated power of 44 W / 70 W, rated speeds of 3450 rpm / 3150 rpm, and rated torque of 1000 gf.cm / 2000 gf.cm. The source page also lists CW/CCW operation, FG signal output, and PWM speed control.

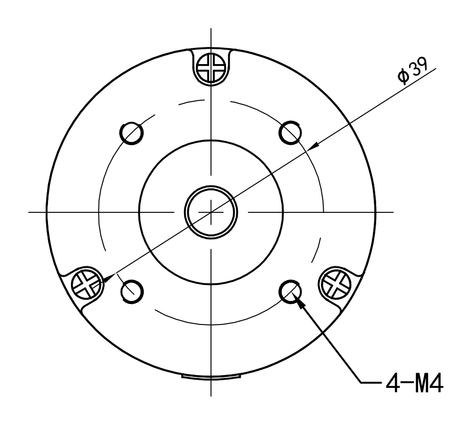

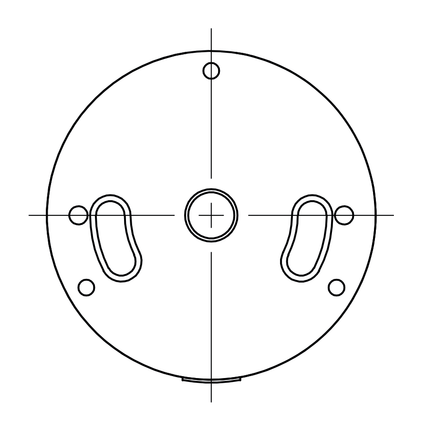

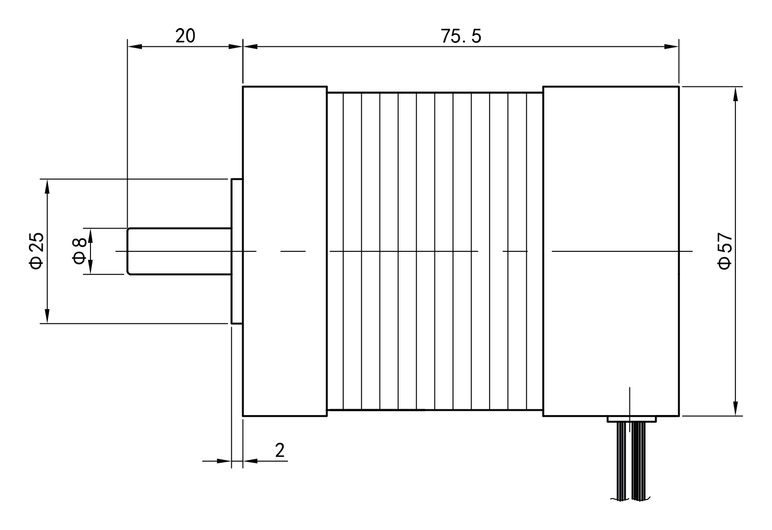

Model Dimension Drawings

Advantages

Compact frame: The 57 mm motor format supports space-constrained equipment designs.

Published performance options: Source-listed rated power is 44 W / 70 W, with rated speed of 3450 rpm / 3150 rpm.

Bidirectional operation: The source page lists CW/CCW rotation.

Speed-control and feedback functions: PWM speed control and FG signal output are listed on the source page.

Protection functions: Locked-rotor and overcurrent protection are listed in the function table.

Request A Quote

Motor Performance Parameters

Motor Model	Rated Voltage (V)	No-load Speed (rpm)	No-load Current (A)	Rated Torque (gf.cm)	Rated Speed (rpm)	Rated Current (A)	Rated Power (W)	Stall Torque (gf.cm)	Stall Current (A)
TCL5740-1245	12	4600	0.64	1000	3450	3.7	44	5600	24
TCL5740-2445	24	4500	0.32	2000	3150	2.9	70	7900	16
