TCL2847 28 mm Micro Brushless DC Motor, 12/24 V

Specifications

Model: TCL2847-1235 / TCL2847-2495

Rated Voltage: 12 V / 24 V

Rated Power: 12 W / 29 W

Rated Speed: 3031 rpm / 7600 rpm

Share as

Request A Quote

Download PDF

Introduction

The TCL2847 is a compact 28 mm brushless DC motor available for 12 V / 24 V operation. The supplied performance table covers rated power of 12 W / 29 W, rated speeds of 3031 rpm / 7600 rpm, and rated torque of 250 gf.cm / 300 gf.cm. The source page also lists CW/CCW operation, FG signal output, and PWM speed control.

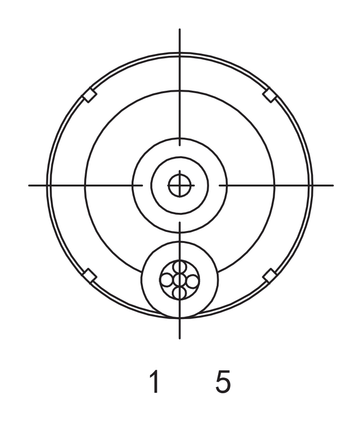

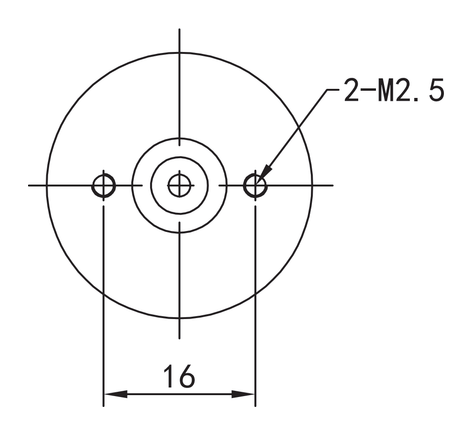

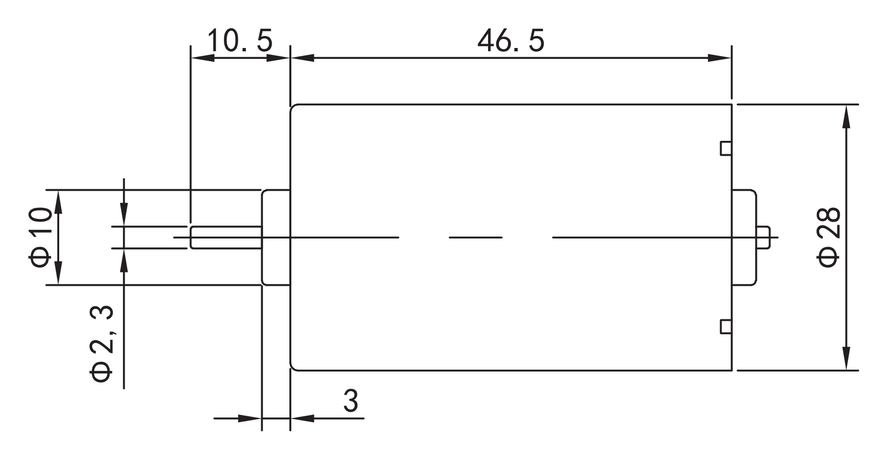

Model Dimension Drawings

Advantages

Compact frame: The 28 mm motor format supports space-constrained equipment designs.

Published performance options: Source-listed rated power is 12 W / 29 W, with rated speed of 3031 rpm / 7600 rpm.

Bidirectional operation: The source page lists CW/CCW rotation.

Speed-control and feedback functions: PWM speed control and FG signal output are listed on the source page.

Protection functions: Locked-rotor and overcurrent protection are listed in the function table.

Request A Quote

Motor Performance Parameters

Motor Model	Rated Voltage (V)	No-load Speed (rpm)	No-load Current (A)	Rated Torque (gf.cm)	Rated Speed (rpm)	Rated Current (A)	Rated Power (W)	Stall Torque (gf.cm)	Stall Current (A)
TCL2847-1235	12	3500	0.16	250	3031	1	12	2085.4	6.7
TCL2847-2495	24	9500	0.18	300	7600	1.2	29	1688.3	7.3
