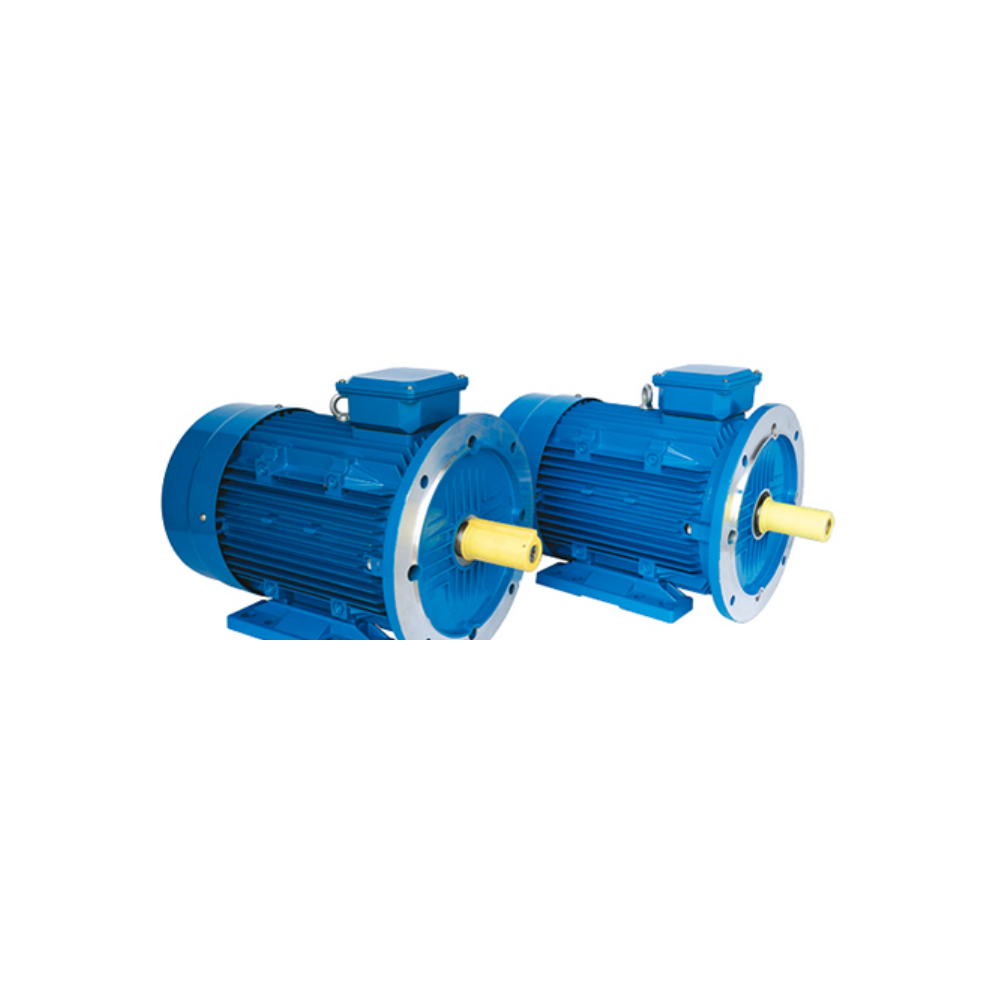

DYTY Self-Starting Permanent Magnet Synchronous Motor, 0.55–37 kW

Specifications

Model: DYTY Series

Rated Voltage: 380 V (other voltages available on request)

Rated Power: 0.55–37 kW

Rated Speed: 750–1,500 r/min

Share as

Request A Quote

Download PDF

Introduction

The DYTY series comprises self-starting three-phase permanent magnet synchronous motors rated from 0.55 to 37 kW. The catalog specifies a fully enclosed, self-cooled construction, F-class insulation, S1 duty, IC411 cooling and IP54 protection. Standard ratings are 50 Hz and 380 V, with other voltages available on request. The motors can start directly, or they can be started with a variable-frequency drive before switching to mains-frequency operation. The series is intended to replace Y-series low-voltage induction motors in applications including petrochemical, mining and textile equipment.

Model Designation

DYTY 90S-4 L: DYTY identifies the series; 90S is the frame size; 4 is the number of poles; L denotes an aluminium housing. If L is omitted, the housing is cast iron.

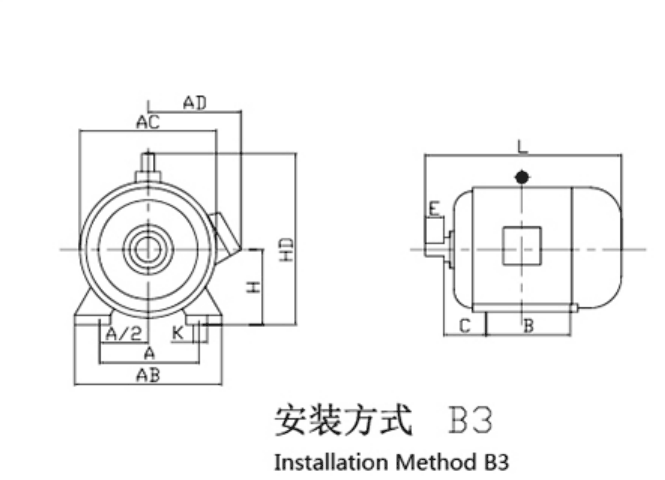

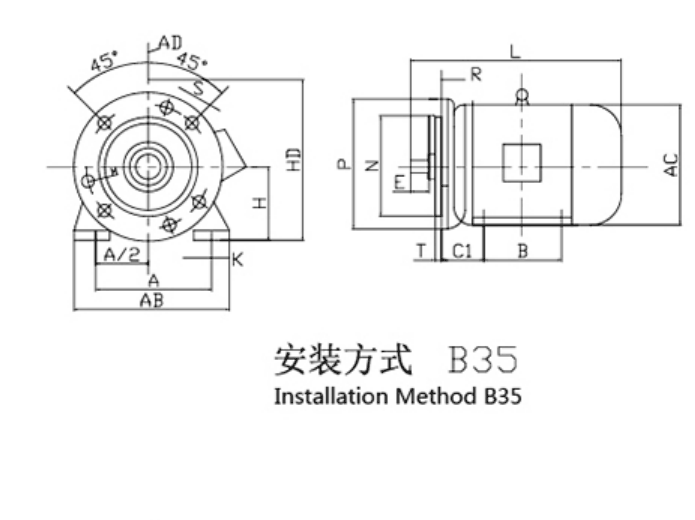

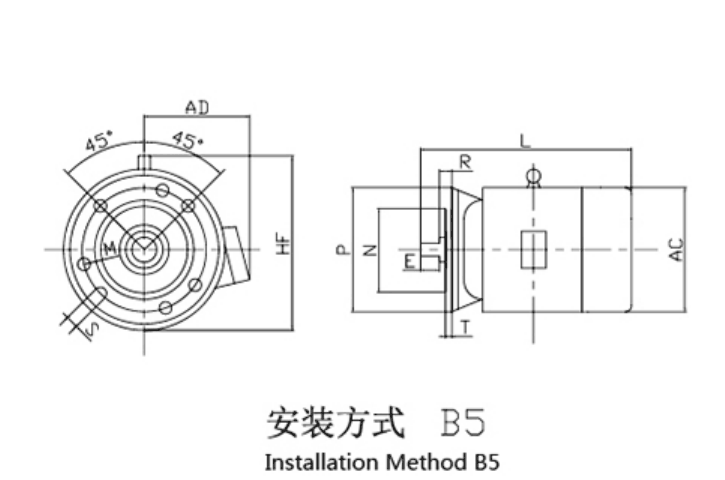

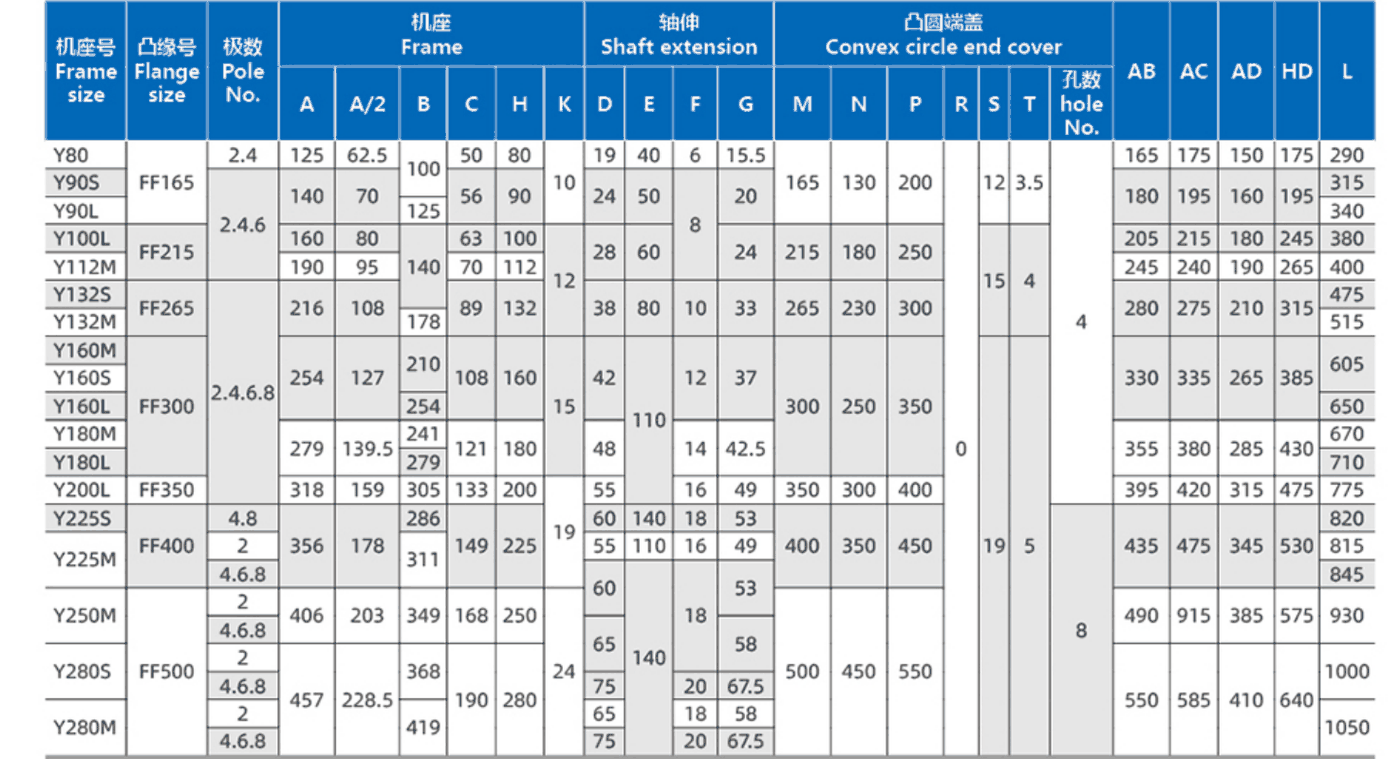

Model Dimension Drawings

Advantages

Self-starting operation: Supports direct starting and variable-frequency starting followed by transfer to mains-frequency operation.

Efficiency classification: The source catalog states compliance with Level 2 or higher under GB/T 30523-2013.

High power factor: Published model data list power factors from 0.90 to 0.98.

Starting capability: The catalog states that starting torque is approximately twice that of a comparable Y/Y2-series induction motor.

IEC-compatible platform: Power ratings and mounting dimensions are specified as conforming to IEC requirements.

Request A Quote

Technical Data

Model	Rated output (kW)	Rated voltage (V)	Rated current (A)	Poles	Power factor (cos φ)	Frequency (Hz)	Speed (r/min)	Rated torque (N·m)	Efficiency (%)
DYTY90S-4	1.1	380	2.1	4	0.92	50	1500	7.0	86
DYTY90L-4	1.5	380	2.8	4	0.92	50	1500	9.6	87.5
DYTY100L1-4	2.2	380	4.1	4	0.92	50	1500	14.0	89.4
DYTY100L2-4	3	380	5.5	4	0.92	50	1500	19.1	89.8
DYTY112M-4	4	380	6.9	4	0.98	50	1500	25.5	90
DYTY132S-4	5.5	380	9.3	4	0.98	50	1500	35.0	92
DYTY132M-4	7.5	380	12.6	4	0.98	50	1500	47.8	92.5
DYTY160M-4	11	380	18.3	4	0.98	50	1500	70.0	93
DYTY160L-4	15	380	24.7	4	0.98	50	1500	95.5	94
DYTY180M-4	18.5	380	30.4	4	0.98	50	1500	117.8	94.3
DYTY180L-4	22	380	36.1	4	0.98	50	1500	140.1	94.5
DYTY200L-4	30	380	49.0	4	0.98	50	1500	191.0	95
DYTY80M-6	0.55	380	1.1	6	0.9	50	1000	5.3	81.3
DYTY90S-6	0.75	380	1.4	6	0.95	50	1000	7.2	85.5
DYTY90L-6	1.1	380	2.0	6	0.95	50	1000	10.5	86
DYTY100L-6	1.5	380	2.6	6	0.98	50	1000	14.3	88
DYTY112M-6	2.2	380	3.9	6	0.98	50	1000	21.0	88
DYTY132S-6	3	380	5.2	6	0.98	50	1000	28.7	90
DYTY132M1-6	4	380	6.9	6	0.98	50	1000	38.2	90.2
DYTY132M2-6	5.5	380	9.4	6	0.98	50	1000	52.5	91
DYTY160M-6	7.5	380	12.6	6	0.98	50	1000	71.6	92
DYTY160L-6	11	380	18.3	6	0.98	50	1000	105.1	93
DYTY200L1-6	18.5	380	30.4	6	0.98	50	1000	176.7	94.0
DYTY200L2-6	22	380	35.9	6	0.98	50	1000	210.1	95
DYTY225M-6	30	380	49.0	6	0.98	50	1000	286.5	95
DYTY250M-6	37	380	60.9	6	0.98	50	1000	353.4	94.2
DYTY100L-8	1.1	380	2.0	8	0.98	50	750	14.0	85
DYTY112M-8	1.5	380	2.7	8	0.98	50	750	19.1	87.5
DYTY132S-8	2.2	380	3.8	8	0.98	50	750	28.0	89
DYTY132M-8	3	380	5.1	8	0.98	50	750	38.2	90.5
DYTY160M1-8	4	380	6.8	8	0.98	50	750	50.9	91
DYTY160M2-8	5.5	380	9.3	8	0.98	50	750	70.0	91.5
DYTY160L-8	7.5	380	12.6	8	0.98	50	750	95.5	92.3
DYTY180L-8	11	380	18.3	8	0.98	50	750	140.1	93
DYTY200L-8	15	380	24.9	8	0.98	50	750	191.0	93.1
DYTY225S-8	18.5	380	30.6	8	0.98	50	750	235.6	93.8
DYTY225M-8	22	380	36.3	8	0.98	50	750	280.1	94
DYTY250M-8	30	380	49.4	8	0.98	50	750	382.0	94.2
