TC2BLD100-RV025 57/60 mm Brushless DC Worm Gearmotor, 100 W, 12/24/36/48/310 V

Specifications

Model: TC2BLD100-RV025

Gearhead: RV025-□ (Worm gear reducer)

Rated Voltage: 12 V / 24 V / 36 V / 48 V / 310 V

Rated Power / Speed: 100 W / 2000 rpm

Share as

Request A Quote

Download PDF

Introduction

The TC2BLD100-RV025 combines the supplied 57/60 mm brushless DC motor with the Worm gear reducer. The supplied catalog specifies 100 W, a rated motor speed of 2000 rpm, rated motor torque of 0.48 N·m, and peak motor torque of 1.43 N·m. Available voltage and reduction-ratio options are listed in the tables below.

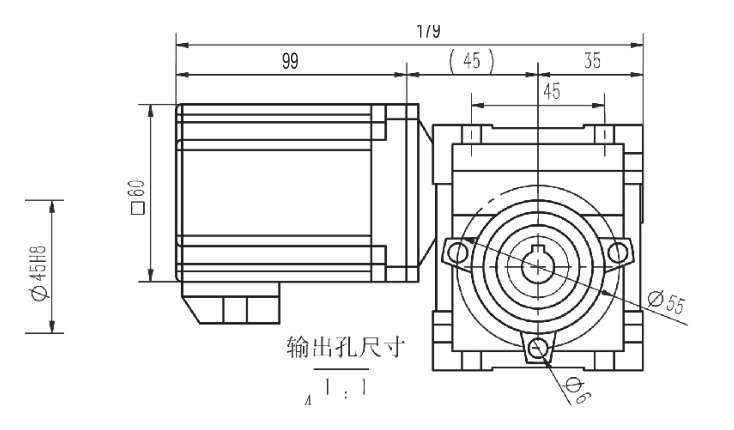

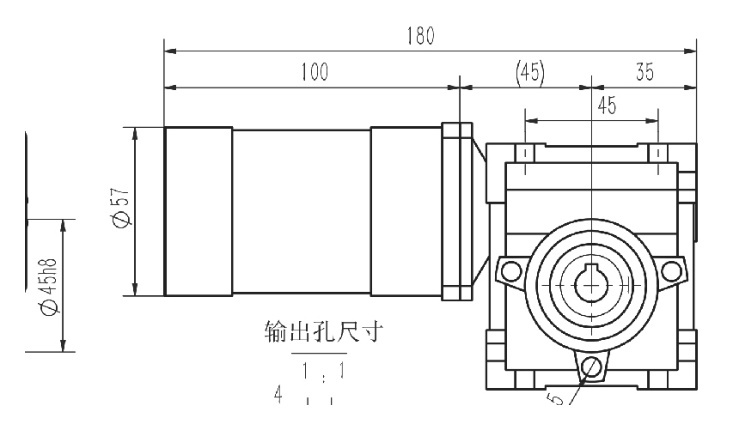

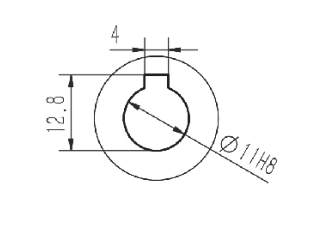

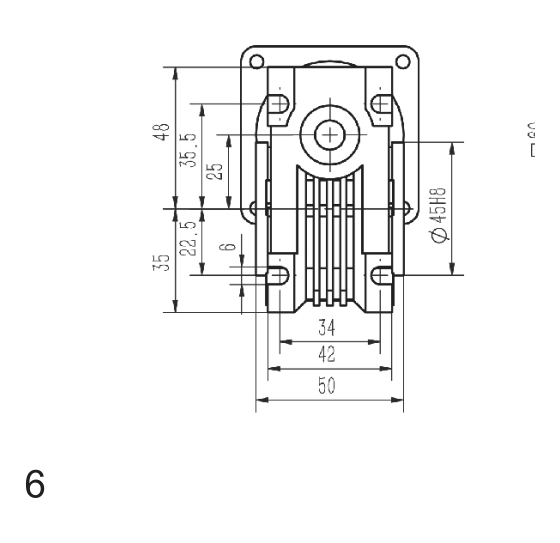

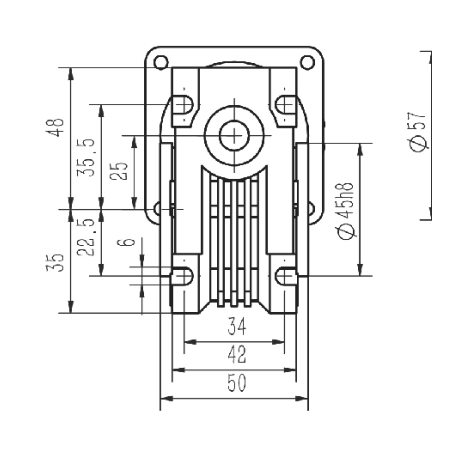

Model Dimension Drawings

Advantages

Matched drive configuration: The supplied 57/60 mm brushless DC motor is paired with the Worm gear reducer.

Catalog-rated performance: 100 W at 2000 rpm, with rated motor torque of 0.48 N·m.

Peak motor torque: Up to 1.43 N·m according to the supplied catalog page.

Voltage options: 12 V / 24 V / 36 V / 48 V / 310 V.

Reduction-ratio selection: 5, 7.5, 10, 15, 20, 30, 40, 50, 60.

Request A Quote

Continuous Rating Specifications

Model	Voltage (V)	Rated Power (W)	No-load Speed (rpm)	Rated Speed (rpm)	Rated Current (A)	Rated Torque (N.m)	Peak Torque (N.m)
TC2BLD100-12A-20S	12	100	2800	2000	10.42	0.48	1.43
TC2BLD100-24A-20S	24	100	2800	2000	5.21	0.48	1.43
TC2BLD100-36A-20S	36	100	2800	2000	3.47	0.48	1.43
TC2BLD100-48A-20S	48	100	2800	2000	2.6	0.48	1.43
TC2BLD100-310A-20S	310	100	2700	2000	0.4	0.48	1.43

Gearhead Options

Gearhead Type	Gearhead Model	Available Reduction Ratios
Worm gear reducer	RV025-□	5, 7.5, 10, 15, 20, 30, 40, 50, 60

Catalog note: actual output speed may be approximately 2%-20% lower than the calculated value, depending on load.
