TC2BLD150-PLF060 57/60 mm Brushless DC Planetary Gearmotor, 150 W, 12/24/36/48/310 V

Specifications

Model: TC2BLD150-PLF060

Gearhead: PLF060-□ (Precision planetary gearhead)

Rated Voltage: 12 V / 24 V / 36 V / 48 V / 310 V

Rated Power / Speed: 150 W / 3000 rpm

Share as

Request A Quote

Download PDF

Introduction

The TC2BLD150-PLF060 combines the supplied 57/60 mm brushless DC motor with the Precision planetary gearhead. The supplied catalog specifies 150 W, a rated motor speed of 3000 rpm, rated motor torque of 0.48 N·m, and peak motor torque of 1.43 N·m. Available voltage and reduction-ratio options are listed in the tables below.

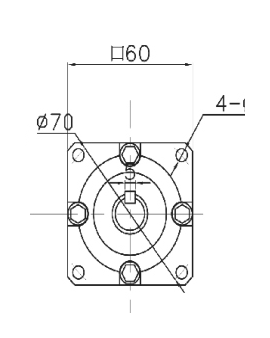

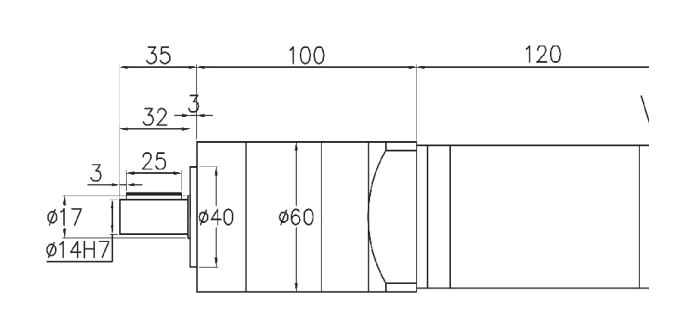

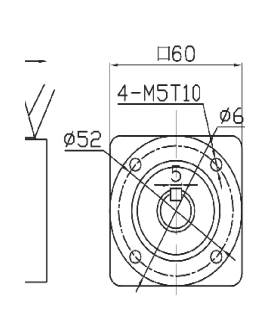

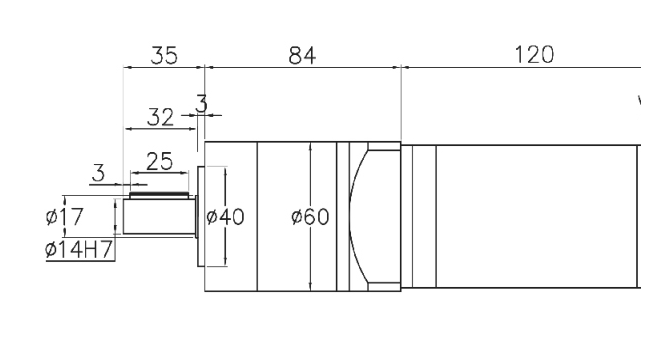

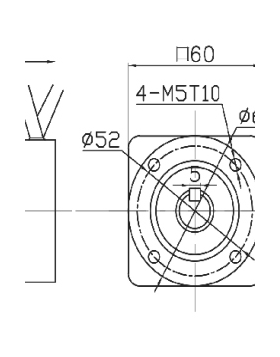

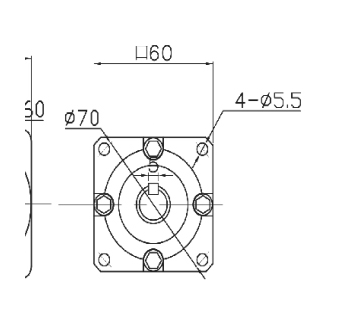

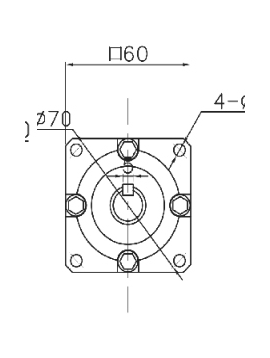

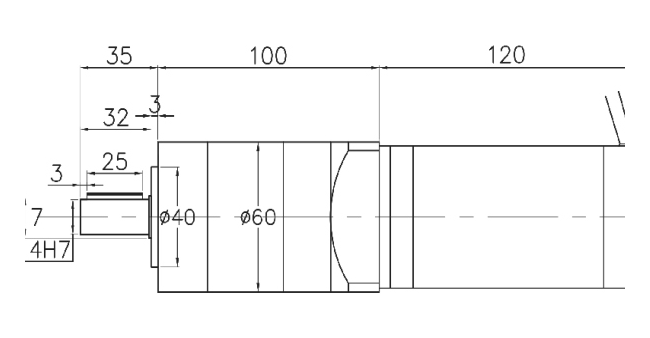

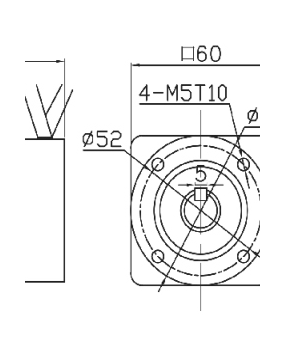

Model Dimension Drawings

Advantages

Matched drive configuration: The supplied 57/60 mm brushless DC motor is paired with the Precision planetary gearhead.

Catalog-rated performance: 150 W at 3000 rpm, with rated motor torque of 0.48 N·m.

Peak motor torque: Up to 1.43 N·m according to the supplied catalog page.

Voltage options: 12 V / 24 V / 36 V / 48 V / 310 V.

Reduction-ratio selection: 4, 5, 7, 10, 16, 20, 25, 28, 35, 40, 50, 70, 80, 100, 125, 140, 175, 200, 250.

Request A Quote

Continuous Rating Specifications

Model	Voltage (V)	Rated Power (W)	No-load Speed (rpm)	Rated Speed (rpm)	Rated Current (A)	Rated Torque (N.m)	Peak Torque (N.m)
TC2BLD150-12A-30S	12	150	3300	3000	15.63	0.48	1.43
TC2BLD150-24A-30S	24	150	3300	3000	7.81	0.48	1.43
TC2BLD150-36A-30S	36	150	3300	3000	5.21	0.48	1.43
TC2BLD150-48A-30S	48	150	3300	3000	3.91	0.48	1.43
TC2BLD150-310A-30S	310	150	3300	3000	0.6	0.48	1.43

Gearhead Options

Gearhead Type	Gearhead Model	Available Reduction Ratios
Precision planetary gearhead	PLF060-□	4, 5, 7, 10, 16, 20, 25, 28, 35, 40, 50, 70, 80, 100, 125, 140, 175, 200, 250

Catalog note: actual output speed may be approximately 2%-20% lower than the calculated value, depending on load.
