TCJ4260 42 mm Micro Brushless DC Motor, 12/24 V

Specifications

Model: TCJ4260-1255 / TCJ4260-2445

Rated Voltage: 12 V / 24 V

Rated Power: 30 W / 40 W

Rated Speed: 4200 rpm / 3250 rpm

Share as

Request A Quote

Download PDF

Introduction

The TCJ4260 is a compact 42 mm brushless DC motor available for 12 V / 24 V operation. The supplied performance table covers rated power of 30 W / 40 W, rated speeds of 4200 rpm / 3250 rpm, and rated torque of 800 gf.cm / 1000 gf.cm. The source page also lists CW/CCW operation, FG signal output, and PWM speed control.

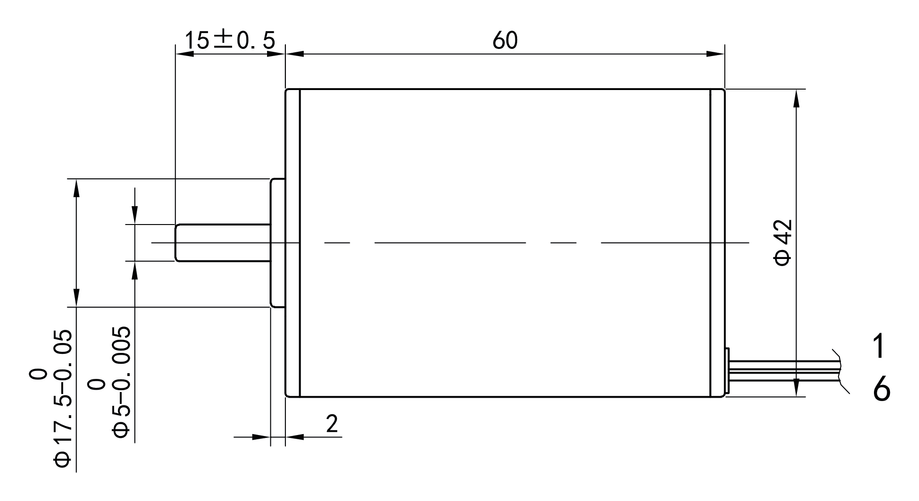

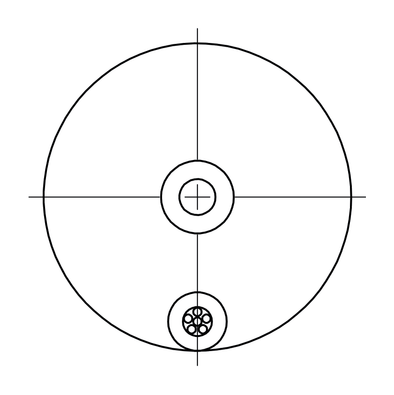

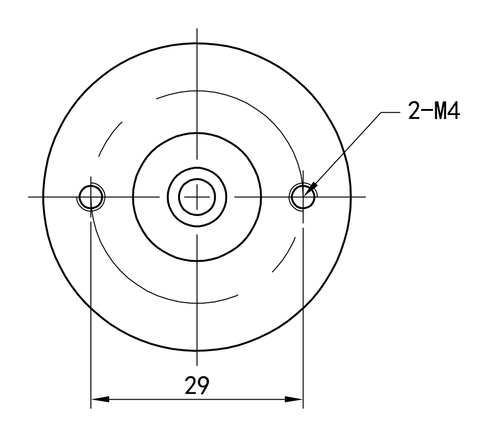

Model Dimension Drawings

Advantages

Compact frame: The 42 mm motor format supports space-constrained equipment designs.

Published performance options: Source-listed rated power is 30 W / 40 W, with rated speed of 4200 rpm / 3250 rpm.

Bidirectional operation: The source page lists CW/CCW rotation.

Speed-control and feedback functions: PWM speed control and FG signal output are listed on the source page.

Protection functions: Locked-rotor and overcurrent protection are listed in the function table.

Request A Quote

Motor Performance Parameters

Motor Model	Rated Voltage (V)	No-load Speed (rpm)	No-load Current (A)	Rated Torque (gf.cm)	Rated Speed (rpm)	Rated Current (A)	Rated Power (W)	Stall Torque (gf.cm)	Stall Current (A)
TCJ4260-1255	12	5600	0.28	800	4200	2.5	30	3500	14
TCJ4260-2445	24	4500	0.18	1000	3250	1.7	40	5400	10
