TCL2847-PG28 28 mm Micro Brushless DC Planetary Gearmotor, 12/24 V

Specifications

Model: TCL2847-1235-PG28-XX / TCL2847-2495-PG28-XX

Rated Voltage: 12 V / 24 V

Rated Power: 12 W / 29 W

Gearbox Reduction Ratio: 3.7-731

Share as

Request A Quote

Download PDF

Introduction

The TCL2847-PG28 combines a compact 28 mm brushless DC motor with a reduction gearbox for lower-speed, higher-torque operation. The supplied variants operate at 12 V / 24 V with rated power of 12 W / 29 W. Available reduction ratios from 3.7-731:1 provide rated output speeds of 4-2054 rpm and rated output torque up to 50 kgf.cm.

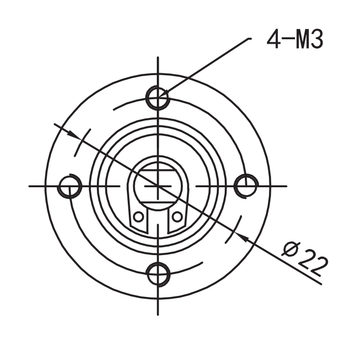

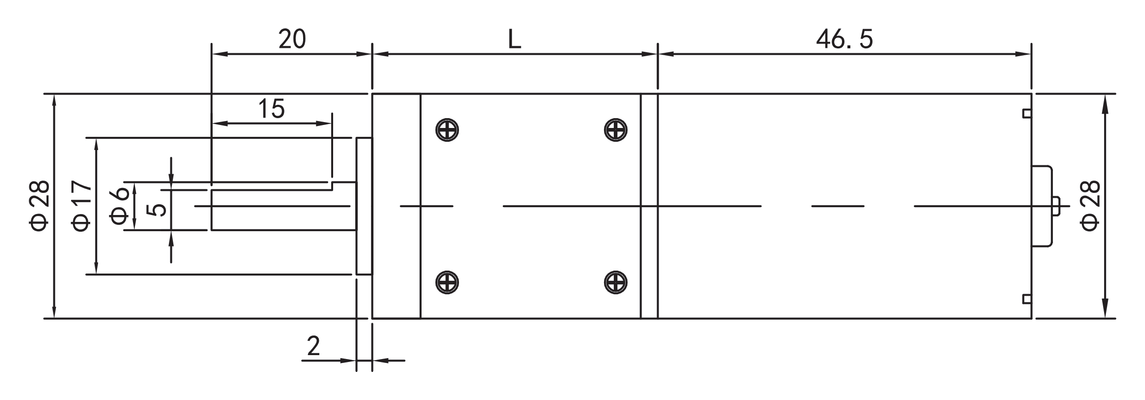

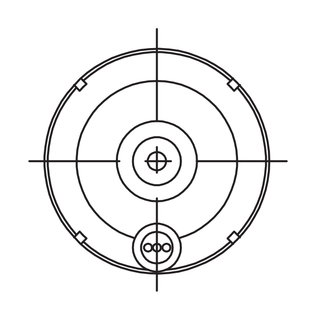

Model Dimension Drawings

Advantages

Compact geared configuration: Integrates a 28 mm brushless DC motor and gearbox in one assembly.

Broad ratio selection: Available reduction ratios range from 3.7:1 to 731:1.

Multiple output-torque options: Rated output torque reaches up to 50 kgf.cm, depending on ratio and voltage.

Published gearbox efficiency: The supplied table lists efficiency values from 50% to 80%.

Voltage options: Available in 12 V / 24 V versions.

Request A Quote

Motor Performance Parameters

Motor Model	Rated Voltage (V)	No-load Speed (rpm)	No-load Current (A)	Rated Torque (gf.cm)	Rated Speed (rpm)	Rated Current (A)	Rated Power (W)	Stall Torque (gf.cm)	Stall Current (A)
TCL2847-1235	12	3500	0.16	250	3000	1	12	2000	6.7
TCL2847-2495	24	9500	0.18	300	7600	1.2	29	1600	7.3

Geared Motor Performance Parameters

TCL2847-1235-PG28-XX | Rated Voltage: 12 V

Reduction Ratio	No-load Speed (rpm)	No-load Current (A)	Rated Torque (kgf.cm)	Rated Speed (rpm)	Rated Current (A)	Rated Power (W)	Efficiency (%)	Length (mm)
3.7	946	0.16	0.74	811	1	12	80	73.8
5.2	673	0.16	1.04	577	1	12	80	73.8
13.7	255	0.16	2.4	219	1	12	70	81.9
19.2	182	0.16	3.36	156	1	12	70	81.9
27	130	0.16	4.73	111	1	12	70	81.9
50.5	69	0.16	7.58	59	1	12	60	6
71	49	0.16	10.65	42	1	12	60	6
100	35	0.16	15	30	1	12	60	6
139	25	0.16	20.85	22	1	12	60	6
187.5	19	0.16	23.44	16	1	12	50	101.1
263	13	0.16	32.88	11	1	12	50	101.1
370	9	0.16	46.25	8	1	12	50	101.1
520	7	0.16	50	6	1	12	50	101.1
731	5	0.16	50	4	1	12	50	101.1

TCL2847-2495-PG28-XX | Rated Voltage: 24 V

Reduction Ratio	No-load Speed (rpm)	No-load Current (A)	Rated Torque (kgf.cm)	Rated Speed (rpm)	Rated Current (A)	Rated Power (W)	Efficiency (%)	Length (mm)
3.7	2568	0.2	0.89	2054	1.2	29	80	73.8
5.2	1827	0.2	1.25	1462	1.2	29	80	73.8
13.7	693	0.2	2.88	555	1.2	29	70	81.9
19.2	495	0.2	4.03	396	1.2	29	70	81.9
27	352	0.2	5.67	281	1.2	29	70	81.9
50.5	188	0.2	9.09	150	1.2	29	60	6
71	134	0.2	12.78	107	1.2	29	60	6
100	95	0.2	18	76	1.2	29	60	6
139	68	0.2	25.02	55	1.2	29	60	6
187.5	51	0.2	28.13	41	1.2	29	50	101.1
263	36	0.2	39.45	29	1.2	29	50	101.1
370	26	0.2	50	21	1.2	29	50	101.1
520	18	0.2	50	15	1.2	29	50	101.1
731	13	0.2	50	10	1.2	29	50	101.1
