TC5BLD90-RV025 86 mm Brushless DC Worm Gearmotor, 90 W, 12/24/36/48/310 V

Specifications

Model: TC5BLD90-RV025

Gearhead: RV025-□ (Worm gear reducer)

Rated Voltage: 12 V / 24 V / 36 V / 48 V / 310 V

Rated Power / Speed: 90 W / 2000 rpm

Share as

Request A Quote

Download PDF

Introduction

The TC5BLD90-RV025 combines the supplied 86 mm brushless DC motor with the Worm gear reducer. The supplied catalog specifies 90 W, a rated motor speed of 2000 rpm, rated motor torque of 0.43 N·m, and peak motor torque of 1.29 N·m. Available voltage and reduction-ratio options are listed in the tables below.

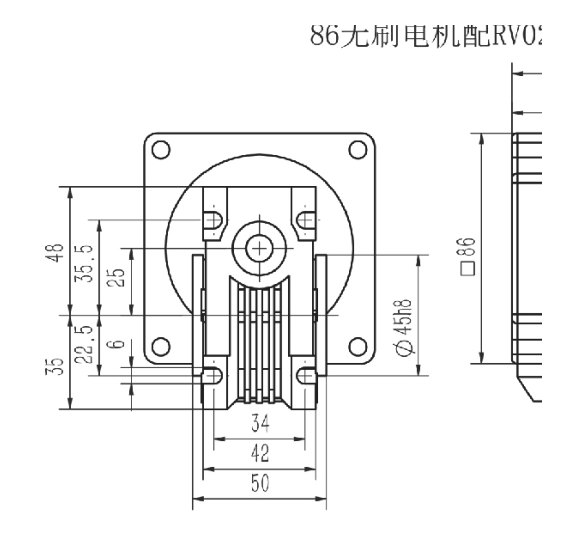

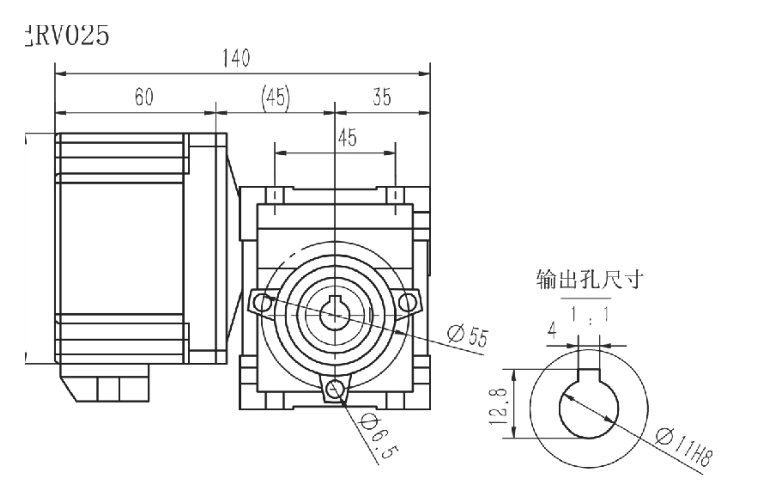

Model Dimension Drawings

Advantages

Matched drive configuration: The supplied 86 mm brushless DC motor is paired with the Worm gear reducer.

Catalog-rated performance: 90 W at 2000 rpm, with rated motor torque of 0.43 N·m.

Peak motor torque: Up to 1.29 N·m according to the supplied catalog page.

Voltage options: 12 V / 24 V / 36 V / 48 V / 310 V.

Reduction-ratio selection: 7.5, 10, 15, 20, 25, 30, 40, 50, 60.

Request A Quote

Continuous Rating Specifications

Model	Voltage (V)	Rated Power (W)	No-load Speed (rpm)	Rated Speed (rpm)	Rated Current (A)	Rated Torque (N.m)	Peak Torque (N.m)
TC5BLD90-12A-20S	12	90	2700	2000	9.38	0.43	1.29
TC5BLD90-24A-20S	24	90	2700	2000	4.69	0.43	1.29
TC5BLD90-36A-20S	36	90	2700	2000	3.13	0.43	1.29
TC5BLD90-48A-20S	48	90	2700	2000	2.34	0.43	1.29
TC5BLD90-310A-20S	310	90	2600	2000	0.36	0.43	1.29

Gearhead Options

Gearhead Type	Gearhead Model	Available Reduction Ratios
Worm gear reducer	RV025-□	7.5, 10, 15, 20, 25, 30, 40, 50, 60

Catalog note: actual output speed may be approximately 2%-20% lower than the calculated value, depending on load.
