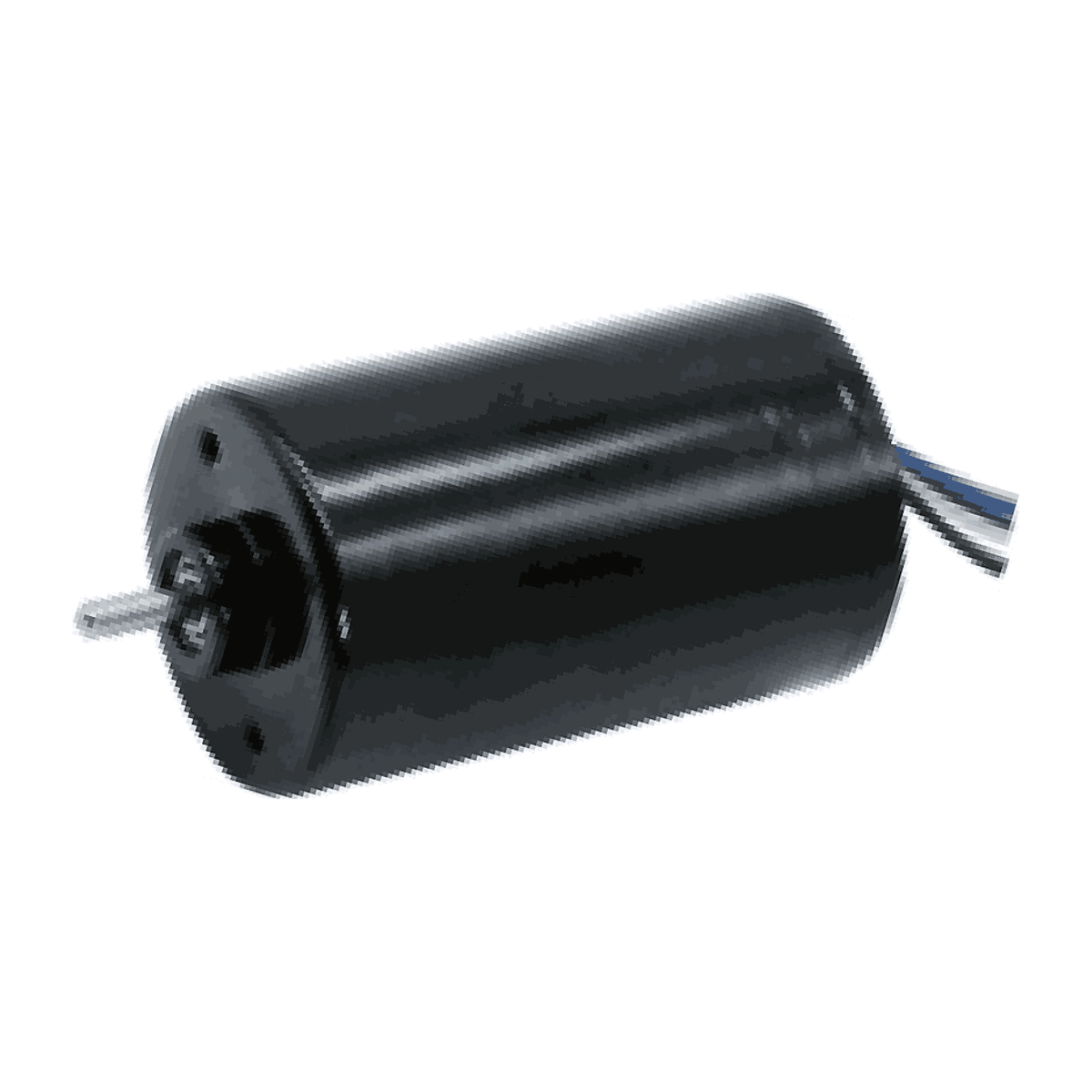

TCL3657 36 mm Micro Brushless DC Motor, 12/24 V

Specifications

Model: TCL3657-1240 / TCL3657-2460

Rated Voltage: 12 V / 24 V

Rated Power: 14 W / 29 W

Rated Speed: 2500 rpm / 4200 rpm

Share as

Request A Quote

Download PDF

Introduction

The TCL3657 is a compact 36 mm brushless DC motor available for 12 V / 24 V operation. The supplied performance table covers rated power of 14 W / 29 W, rated speeds of 2500 rpm / 4200 rpm, and rated torque of 400 gf.cm / 500 gf.cm. The source page also lists CW/CCW operation, FG signal output, and PWM speed control.

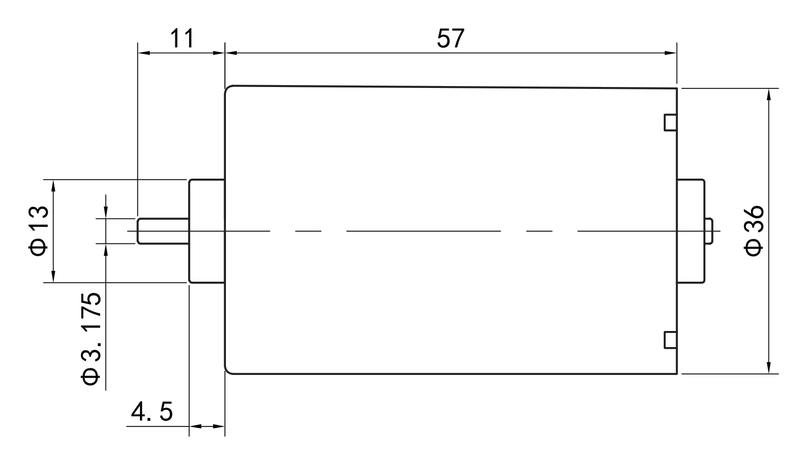

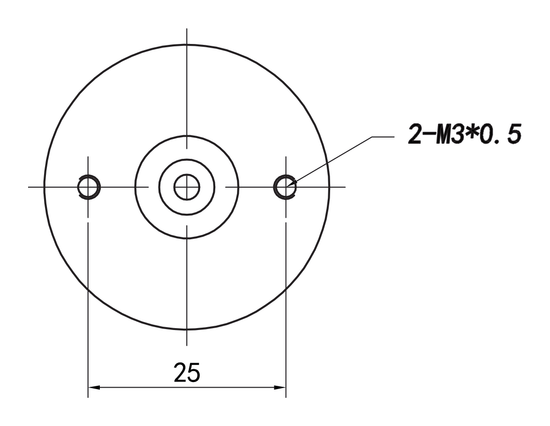

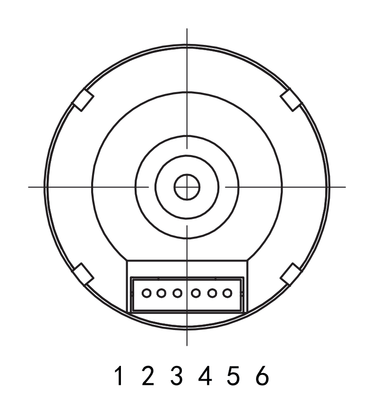

Model Dimension Drawings

Advantages

Compact frame: The 36 mm motor format supports space-constrained equipment designs.

Published performance options: Source-listed rated power is 14 W / 29 W, with rated speed of 2500 rpm / 4200 rpm.

Bidirectional operation: The source page lists CW/CCW rotation.

Speed-control and feedback functions: PWM speed control and FG signal output are listed on the source page.

Protection functions: Locked-rotor and overcurrent protection are listed in the function table.

Request A Quote

Motor Performance Parameters

Motor Model	Rated Voltage (V)	No-load Speed (rpm)	No-load Current (A)	Rated Torque (gf.cm)	Rated Speed (rpm)	Rated Current (A)	Rated Power (W)	Stall Torque (gf.cm)	Stall Current (A)
TCL3657-1240	12	3800	0.13	400	2500	1.2	14	1450	5
TCL3657-2460	24	5800	0.13	500	4200	1.2	29	2100	6
