TCL5760 57 mm Micro Brushless DC Motor, 12/24 V

Specifications

Model: TCL5760-1260 / TCL5760-2450

Rated Voltage: 12 V / 24 V

Rated Power: 70 W / 85 W

Rated Speed: 4200 rpm / 3500 rpm

Share as

Request A Quote

Download PDF

Introduction

The TCL5760 is a compact 57 mm brushless DC motor available for 12 V / 24 V operation. The supplied performance table covers rated power of 70 W / 85 W, rated speeds of 4200 rpm / 3500 rpm, and rated torque of 2000 gf.cm / 2500 gf.cm. The source page also lists CW/CCW operation, FG signal output, and PWM speed control.

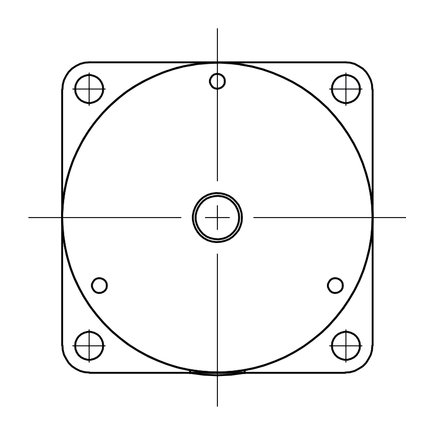

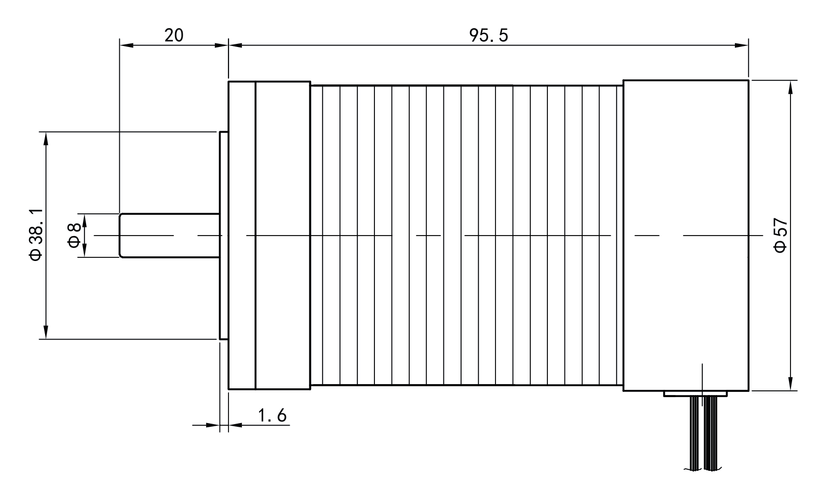

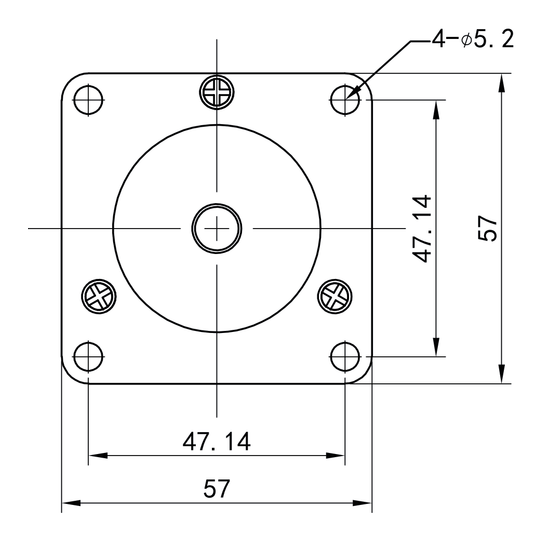

Model Dimension Drawings

Advantages

Compact frame: The 57 mm motor format supports space-constrained equipment designs.

Published performance options: Source-listed rated power is 70 W / 85 W, with rated speed of 4200 rpm / 3500 rpm.

Bidirectional operation: The source page lists CW/CCW rotation.

Speed-control and feedback functions: PWM speed control and FG signal output are listed on the source page.

Protection functions: Locked-rotor and overcurrent protection are listed in the function table.

Request A Quote

Motor Performance Parameters

Motor Model	Rated Voltage (V)	No-load Speed (rpm)	No-load Current (A)	Rated Torque (gf.cm)	Rated Speed (rpm)	Rated Current (A)	Rated Power (W)	Stall Torque (gf.cm)	Stall Current (A)
TCL5760-1260	12	6000	0.45	2000	4200	5.5	70	7500	30
TCL5760-2450	24	5000	0.37	2500	3500	3.5	85	8500	17
