TC5BLD150-RV030 86 mm Brushless DC Worm Gearmotor, 150 W, 12/24/36/48/310 V

Specifications

Model: TC5BLD150-RV030

Gearhead: RV030-□ (Worm gear reducer)

Rated Voltage: 12 V / 24 V / 36 V / 48 V / 310 V

Rated Power / Speed: 150 W / 2000 rpm

Share as

Request A Quote

Download PDF

Introduction

The TC5BLD150-RV030 combines the supplied 86 mm brushless DC motor with the Worm gear reducer. The supplied catalog specifies 150 W, a rated motor speed of 2000 rpm, rated motor torque of 0.72 N·m, and peak motor torque of 2.15 N·m. Available voltage and reduction-ratio options are listed in the tables below.

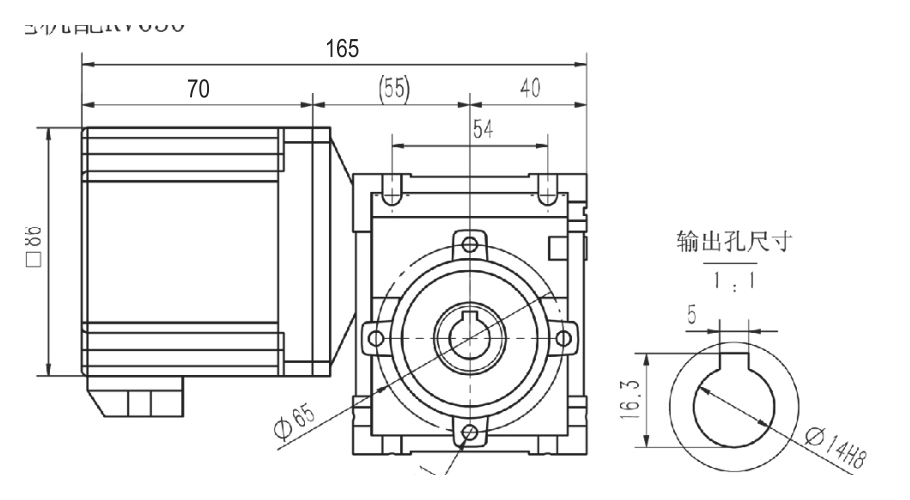

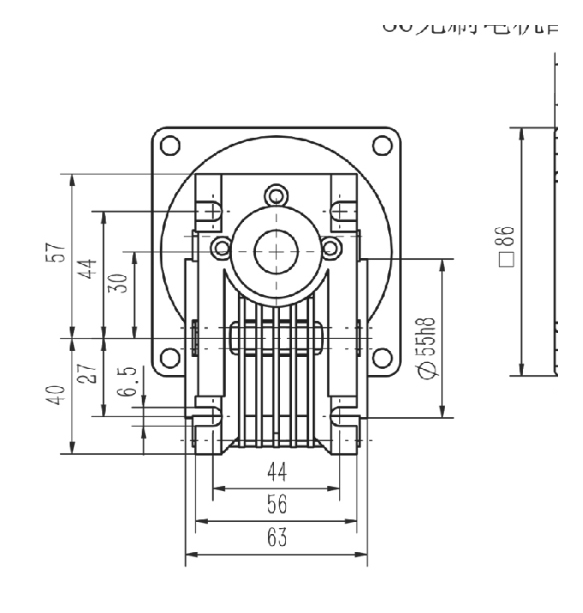

Model Dimension Drawings

Advantages

Matched drive configuration: The supplied 86 mm brushless DC motor is paired with the Worm gear reducer.

Catalog-rated performance: 150 W at 2000 rpm, with rated motor torque of 0.72 N·m.

Peak motor torque: Up to 2.15 N·m according to the supplied catalog page.

Voltage options: 12 V / 24 V / 36 V / 48 V / 310 V.

Reduction-ratio selection: 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80.

Request A Quote

Continuous Rating Specifications

Model	Voltage (V)	Rated Power (W)	No-load Speed (rpm)	Rated Speed (rpm)	Rated Current (A)	Rated Torque (N.m)	Peak Torque (N.m)
TC5BLD150-12A-20S	12	150	2700	2000	15.63	0.72	2.15
TC5BLD150-24A-20S	24	150	2700	2000	7.81	0.72	2.15
TC5BLD150-36A-20S	36	150	2700	2000	5.21	0.72	2.15
TC5BLD150-48A-20S	48	150	2700	2000	3.91	0.72	2.15
TC5BLD150-310A-20S	310	150	2600	2000	0.6	0.72	2.15

Gearhead Options

Gearhead Type	Gearhead Model	Available Reduction Ratios
Worm gear reducer	RV030-□	7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80

Catalog note: actual output speed may be approximately 2%-20% lower than the calculated value, depending on load.
