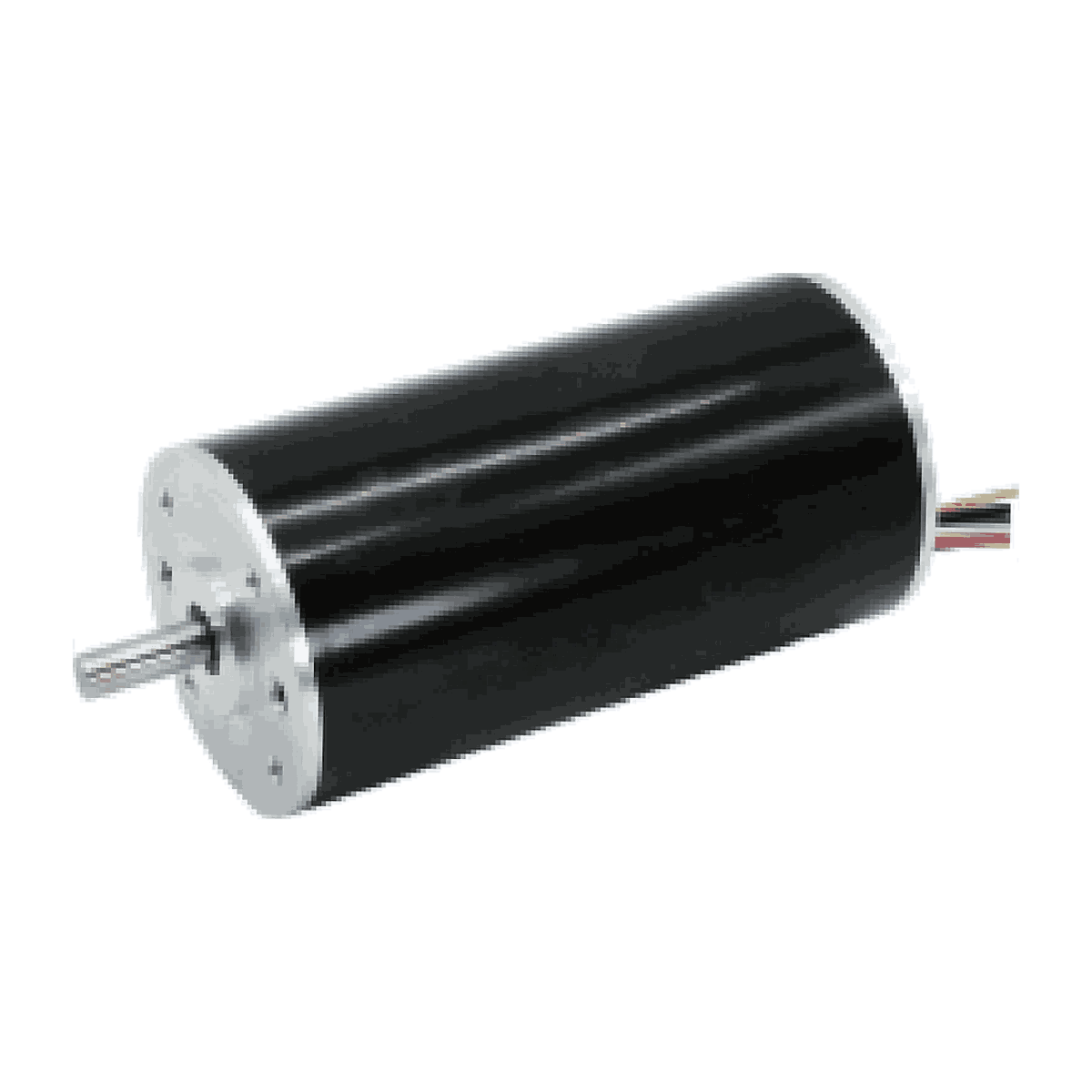

TCJ4280 42 mm Micro Brushless DC Motor, 12/24 V

Specifications

Model: TCJ4280-1260 / TCJ4280-2475

Rated Voltage: 12 V / 24 V

Rated Power: 50 W / 75 W

Rated Speed: 5000 rpm / 5900 rpm

Share as

Request A Quote

Download PDF

Introduction

The TCJ4280 is a compact 42 mm brushless DC motor available for 12 V / 24 V operation. The supplied performance table covers rated power of 50 W / 75 W, rated speeds of 5000 rpm / 5900 rpm, and rated torque of 1000 gf.cm / 1200 gf.cm. The source page also lists CW/CCW operation, FG signal output, and PWM speed control.

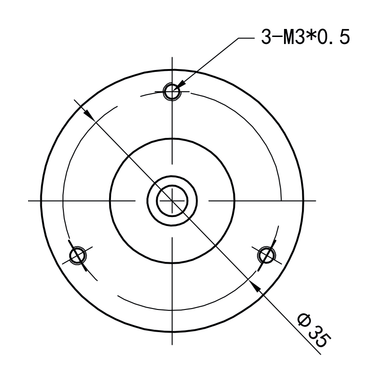

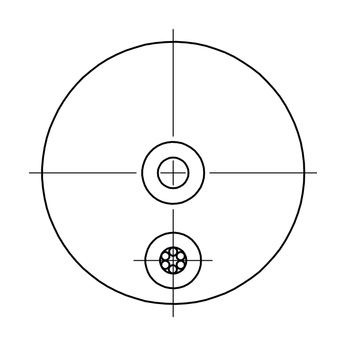

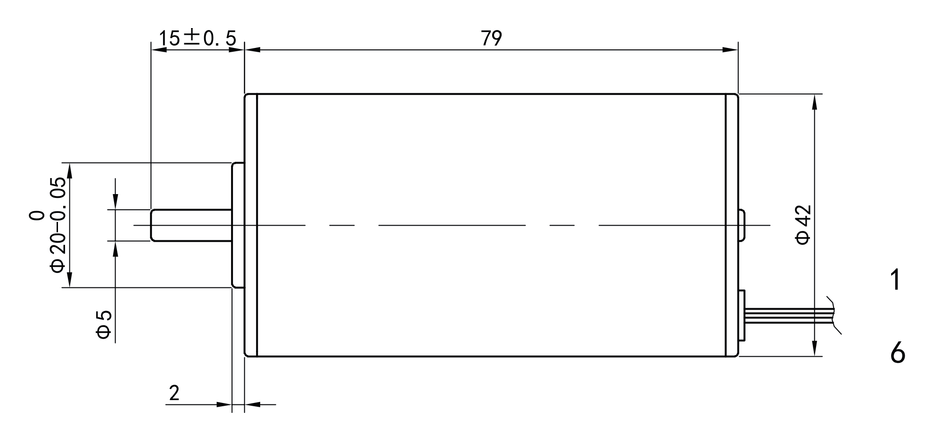

Model Dimension Drawings

Advantages

Compact frame: The 42 mm motor format supports space-constrained equipment designs.

Published performance options: Source-listed rated power is 50 W / 75 W, with rated speed of 5000 rpm / 5900 rpm.

Bidirectional operation: The source page lists CW/CCW rotation.

Speed-control and feedback functions: PWM speed control and FG signal output are listed on the source page.

Protection functions: Locked-rotor and overcurrent protection are listed in the function table.

Request A Quote

Motor Performance Parameters

Motor Model	Rated Voltage (V)	No-load Speed (rpm)	No-load Current (A)	Rated Torque (gf.cm)	Rated Speed (rpm)	Rated Current (A)	Rated Power (W)	Stall Torque (gf.cm)	Stall Current (A)
TCJ4280-1260	12	5800	0.27	1000	5000	4.3	50	8500	21
TCJ4280-2475	24	7500	0.37	1200	5900	3	75	7000	24
