TC110BLD2000-PLE090 110 mm Brushless DC Planetary Gearmotor, 2000 W, 48/310 V

Specifications

Model: TC110BLD2000-PLE090

Gearhead: PLE090-□ (Precision planetary gearhead)

Rated Voltage: 48 V / 310 V

Rated Power / Speed: 2000 W / 3000 rpm

Share as

Request A Quote

Download PDF

Introduction

The TC110BLD2000-PLE090 combines the supplied 110 mm brushless DC motor with the Precision planetary gearhead. The supplied catalog specifies 2000 W, a rated motor speed of 3000 rpm, rated motor torque of 6.37 N·m, and peak motor torque of 19.1 N·m. Available voltage and reduction-ratio options are listed in the tables below.

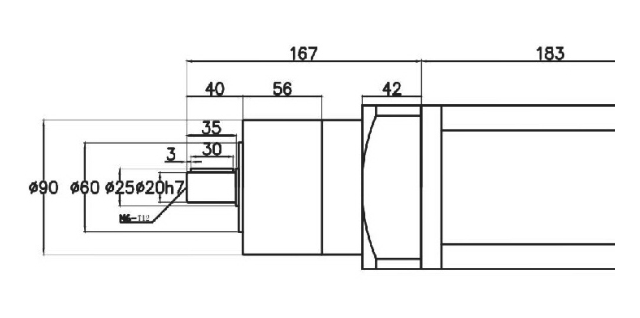

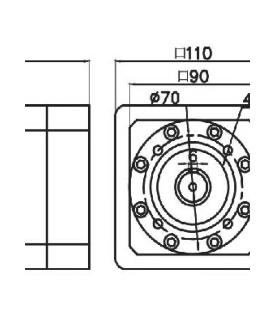

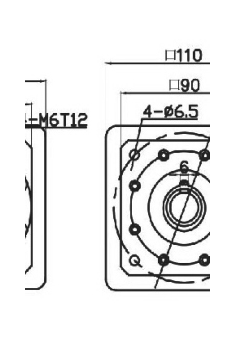

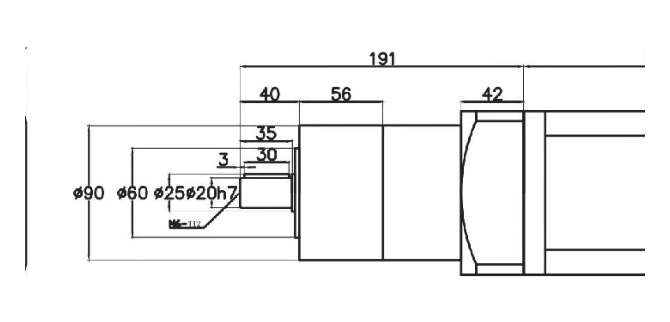

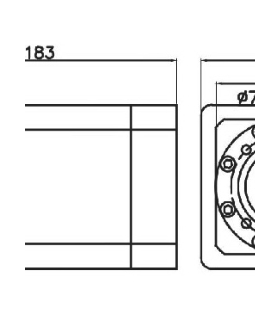

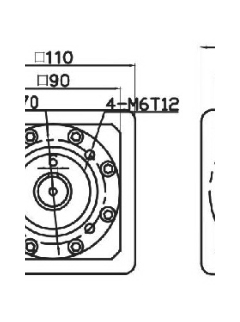

Model Dimension Drawings

Advantages

Matched drive configuration: The supplied 110 mm brushless DC motor is paired with the Precision planetary gearhead.

Catalog-rated performance: 2000 W at 3000 rpm, with rated motor torque of 6.37 N·m.

Peak motor torque: Up to 19.1 N·m according to the supplied catalog page.

Voltage options: 48 V / 310 V.

Reduction-ratio selection: 4, 5, 7, 10, 16, 20, 25, 28, 35, 40, 50, 70, 80, 100, 125, 140, 175, 200, 250.

Request A Quote

Continuous Rating Specifications

Model	Voltage (V)	Rated Power (W)	No-load Speed (rpm)	Rated Speed (rpm)	Rated Current (A)	Rated Torque (N.m)	Peak Torque (N.m)
TC110BLD2000-48A-30S	48	2000	3300	3000	52.08	6.37	19.1
TC110BLD2000-310A-30S	310	2000	3300	3000	8.06	6.37	19.1

Gearhead Options

Gearhead Type	Gearhead Model	Available Reduction Ratios
Precision planetary gearhead	PLE090-□	4, 5, 7, 10, 16, 20, 25, 28, 35, 40, 50, 70, 80, 100, 125, 140, 175, 200, 250

Catalog note: actual output speed may be approximately 2%-20% lower than the calculated value, depending on load.
