TCJ2439 24 mm Micro Brushless DC Motor, 12/24 V

Specifications

Model: TCJ2439-1275 / TCJ2439-2465

Rated Voltage: 12 V / 24 V

Rated Power: 14 W / 12 W

Rated Speed: 6400 rpm / 5700 rpm

Share as

Request A Quote

Download PDF

Introduction

The TCJ2439 is a compact 24 mm brushless DC motor available for 12 V / 24 V operation. The supplied performance table covers rated power of 14 W / 12 W, rated speeds of 6400 rpm / 5700 rpm, and rated torque of 135 gf.cm / 145 gf.cm. The source page also lists CW/CCW operation, FG signal output, and PWM speed control.

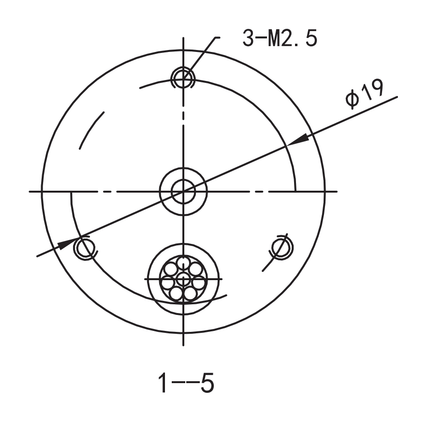

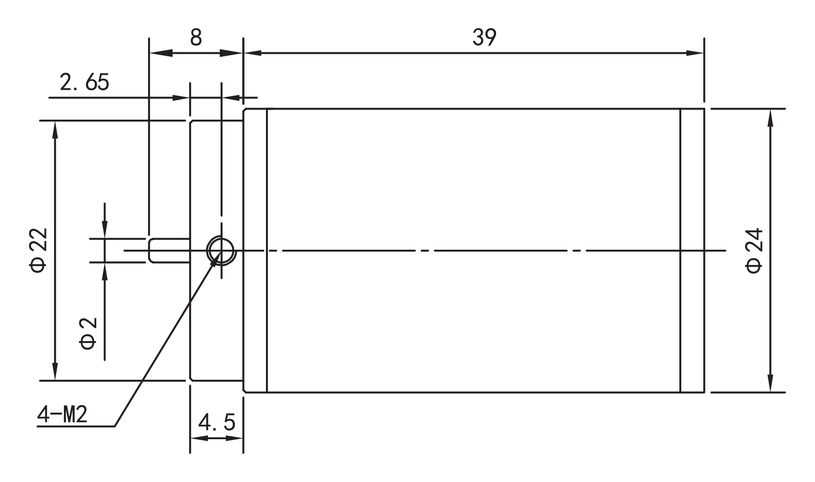

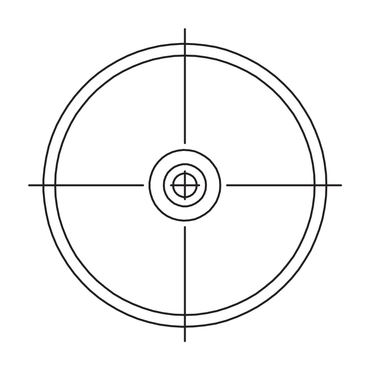

Model Dimension Drawings

Advantages

Compact frame: The 24 mm motor format supports space-constrained equipment designs.

Published performance options: Source-listed rated power is 14 W / 12 W, with rated speed of 6400 rpm / 5700 rpm.

Bidirectional operation: The source page lists CW/CCW rotation.

Speed-control and feedback functions: PWM speed control and FG signal output are listed on the source page.

Protection functions: Locked-rotor and overcurrent protection are listed in the function table.

Request A Quote

Motor Performance Parameters

Motor Model	Rated Voltage (V)	No-load Speed (rpm)	No-load Current (A)	Rated Torque (gf.cm)	Rated Speed (rpm)	Rated Current (A)	Rated Power (W)	Stall Torque (gf.cm)	Stall Current (A)
TCJ2439-1275	12	7500	0.18	135	6400	1.1	14	967	6.6
TCJ2439-2465	24	6500	0.06	145	5700	0.5	12	1200	3.7
