TCL5720 57 mm Micro Brushless DC Motor, 12/24 V

Specifications

Model: TCL5720-1220 / TCL5720-24140

Rated Voltage: 12 V / 24 V

Rated Power: 8.5 W / 190 W

Rated Speed: 1450 rpm / 9800 rpm

Share as

Request A Quote

Download PDF

Introduction

The TCL5720 is a compact 57 mm brushless DC motor available for 12 V / 24 V operation. The supplied performance table covers rated power of 8.5 W / 190 W, rated speeds of 1450 rpm / 9800 rpm, and rated torque of 500 gf.cm / 1500 gf.cm. The source page also lists CW/CCW operation, FG signal output, and PWM speed control.

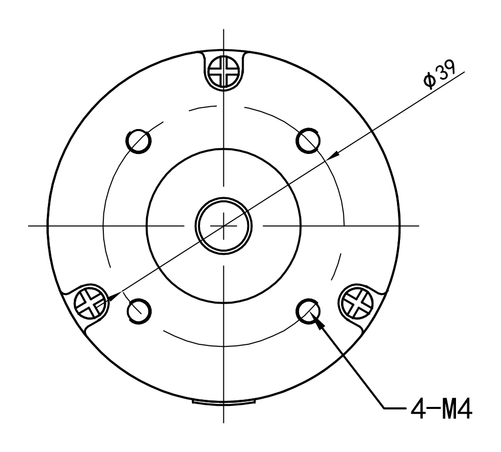

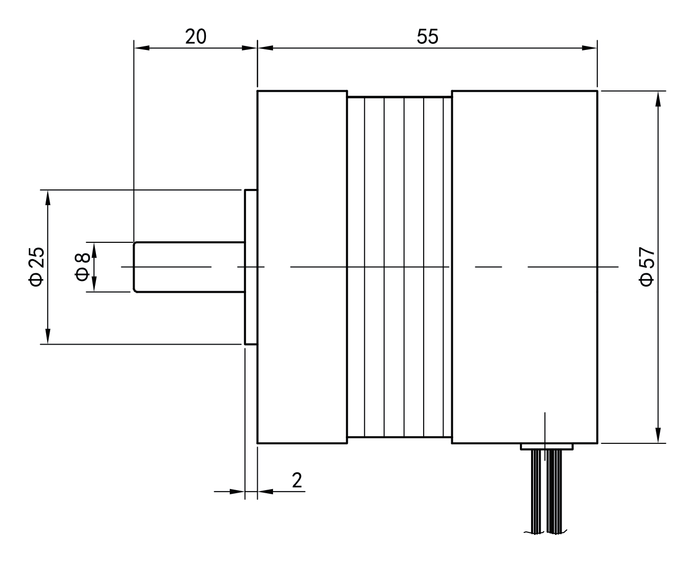

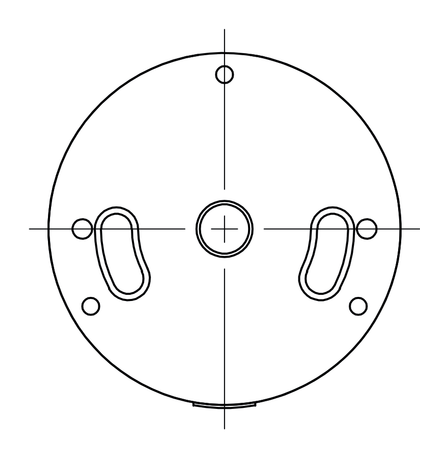

Model Dimension Drawings

Advantages

Compact frame: The 57 mm motor format supports space-constrained equipment designs.

Published performance options: Source-listed rated power is 8.5 W / 190 W, with rated speed of 1450 rpm / 9800 rpm.

Bidirectional operation: The source page lists CW/CCW rotation.

Speed-control and feedback functions: PWM speed control and FG signal output are listed on the source page.

Protection functions: Locked-rotor and overcurrent protection are listed in the function table.

Request A Quote

Motor Performance Parameters

Motor Model	Rated Voltage (V)	No-load Speed (rpm)	No-load Current (A)	Rated Torque (gf.cm)	Rated Speed (rpm)	Rated Current (A)	Rated Power (W)	Stall Torque (gf.cm)	Stall Current (A)
TCL5720-1220	12	1900	0.12	500	1450	0.7	8.5	2700	4.8
TCL5720-24140	24	14000	1.15	1500	9800	7.8	190	12000	80
