TCJ3650-PG36 36 mm Micro Brushless DC Planetary Gearmotor, 12/24 V

Specifications

Model: TCJ3650-1245-PG36-XX / TCJ3650-24180-PG36-XX

Rated Voltage: 12 V / 24 V

Rated Power: 14 W / 65 W

Gearbox Reduction Ratio: 3.7-731

Share as

Request A Quote

Download PDF

Introduction

The TCJ3650-PG36 combines a compact 36 mm brushless DC motor with a reduction gearbox for lower-speed, higher-torque operation. The supplied variants operate at 12 V / 24 V with rated power of 14 W / 65 W. Available reduction ratios from 3.7-731:1 provide rated output speeds of 5-1162 rpm and rated output torque up to 50 kgf.cm.

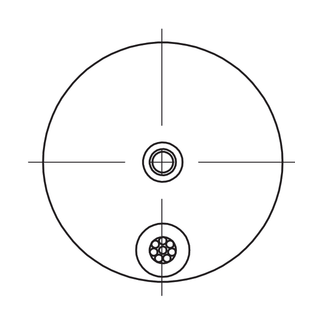

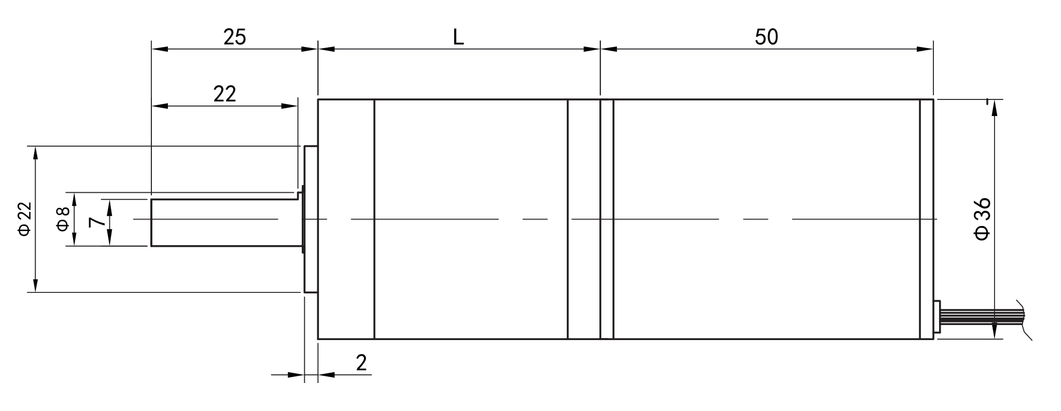

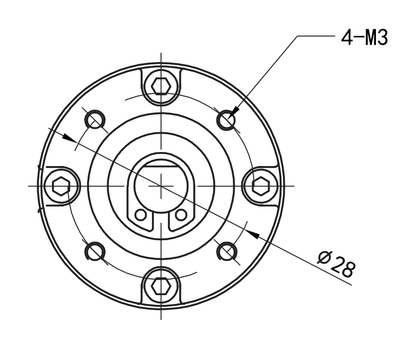

Model Dimension Drawings

Advantages

Compact geared configuration: Integrates a 36 mm brushless DC motor and gearbox in one assembly.

Broad ratio selection: Available reduction ratios range from 3.7:1 to 731:1.

Multiple output-torque options: Rated output torque reaches up to 50 kgf.cm, depending on ratio and voltage.

Published gearbox efficiency: The supplied table lists efficiency values from 50% to 80%.

Voltage options: Available in 12 V / 24 V versions.

Request A Quote

Motor Performance Parameters

Motor Model	Rated Voltage (V)	No-load Speed (rpm)	No-load Current (A)	Rated Torque (gf.cm)	Rated Speed (rpm)	Rated Current (A)	Rated Power (W)	Stall Torque (gf.cm)	Stall Current (A)
TCJ3650-1245	12	4300	0.14	250	3800	1.2	14	2600	10
TCJ3650-24180	24	18000	0.3	500	16000	2.7	65	3000	15

Geared Motor Performance Parameters

TCJ3650-1245-PG36-XX | Rated Voltage: 12 V

Reduction Ratio	No-load Speed (rpm)	No-load Current (A)	Rated Torque (kgf.cm)	Rated Speed (rpm)	Rated Current (A)	Rated Power (W)	Efficiency (%)	Length (mm)
3.7	1162	0.16	0.74	1027	1.2	14	80	77.3
5.2	827	0.16	1.04	731	1.2	14	80	77.3
13.7	314	0.16	2.4	277	1.2	14	70	85.4
19.2	224	0.16	3.36	198	1.2	14	70	85.4
27	159	0.16	4.73	141	1.2	14	70	85.4
50.5	85	0.16	7.58	75	1.2	14	60	93.5
71	61	0.16	10.65	54	1.2	14	60	93.5
100	43	0.16	15	38	1.2	14	60	93.5
139	31	0.16	20.85	27	1.2	14	60	93.5
187.5	23	0.16	23.44	20	1.2	14	50	104.6
263	16	0.16	32.88	14	1.2	14	50	104.6
370	12	0.16	46.25	10	1.2	14	50	104.6
520	8	0.16	50	7	1.2	14	50	104.6
731	6	0.16	50	5	1.2	14	50	104.6

TCJ3650-24180-PG36-XX | Rated Voltage: 24 V

Reduction Ratio	No-load Speed (rpm)	No-load Current (A)	Rated Torque (kgf.cm)	Rated Speed (rpm)	Rated Current (A)	Rated Power (W)	Efficiency (%)	Length (mm)
3.7	4865	0.32	1.48	1162	2.7	65	80	77.3
5.2	3462	0.32	2.08	827	2.7	65	80	77.3
13.7	1314	0.32	4.8	314	2.7	65	70	85.4
19.2	938	0.32	6.72	224	2.7	65	70	85.4
27	667	0.32	9.45	159	2.7	65	70	85.4
50.5	356	0.32	15.15	85	2.7	65	60	93.5
71	254	0.32	21.3	61	2.7	65	60	93.5
100	180	0.32	30	43	2.7	65	60	93.5
139	129	0.32	41.7	31	2.7	65	60	93.5
187.5	96	0.32	46.88	23	2.7	65	50	104.6
263	68	0.32	50	16	2.7	65	50	104.6
370	49	0.32	50	12	2.7	65	50	104.6
520	35	0.32	50	8	2.7	65	50	104.6
731	25	0.32	50	6	2.7	65	50	104.6
