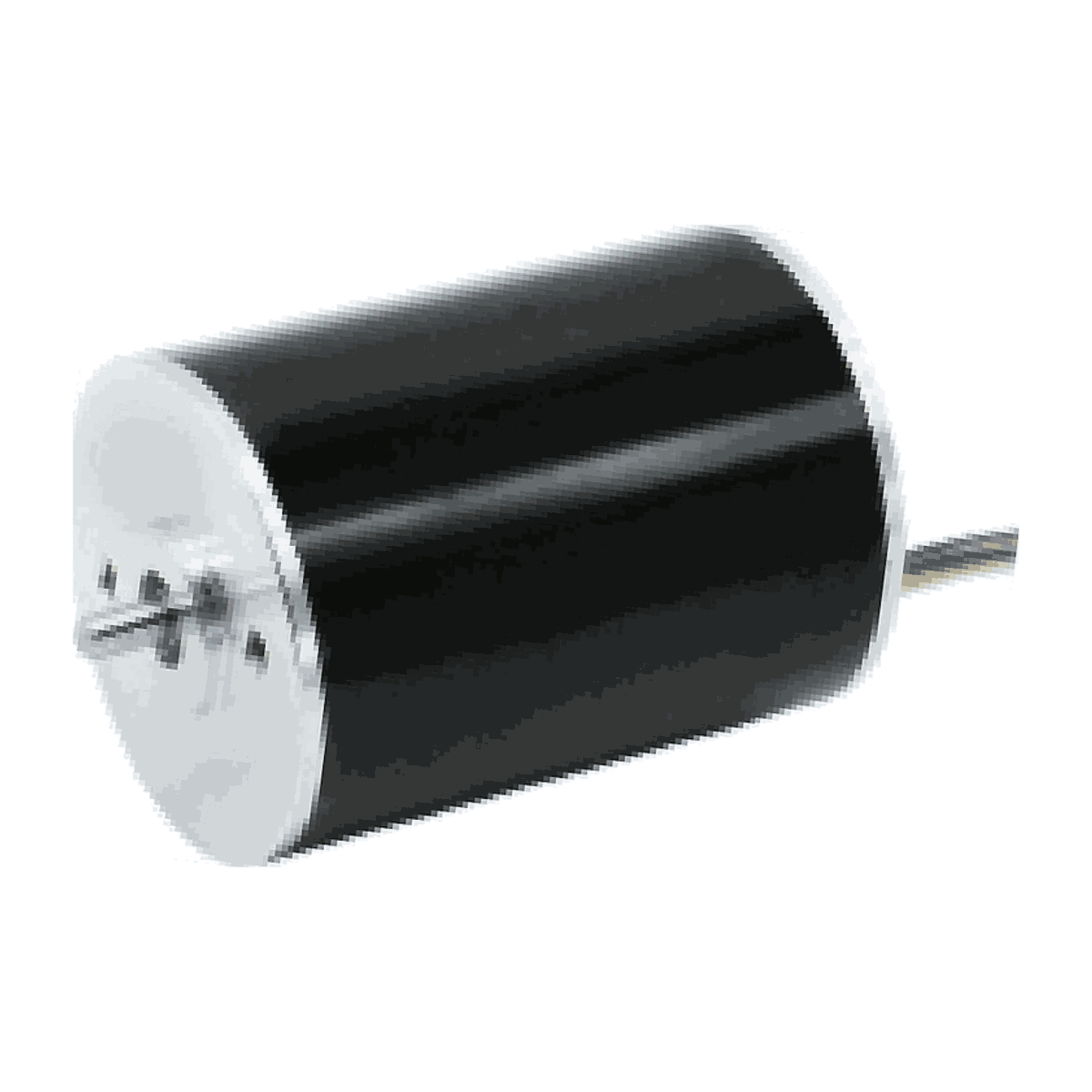

TCJ4560 45 mm Micro Brushless DC Motor, 12/24 V

Specifications

Model: TCJ4560-1250 / TCJ4560-2475

Rated Voltage: 12 V / 24 V

Rated Power: 50 W / 72 W

Rated Speed: 3700 rpm / 5500 rpm

Share as

Request A Quote

Download PDF

Introduction

The TCJ4560 is a compact 45 mm brushless DC motor available for 12 V / 24 V operation. The supplied performance table covers rated power of 50 W / 72 W, rated speeds of 3700 rpm / 5500 rpm, and rated torque of 900 gf.cm / 1000 gf.cm. The source page also lists CW/CCW operation, FG signal output, and PWM speed control.

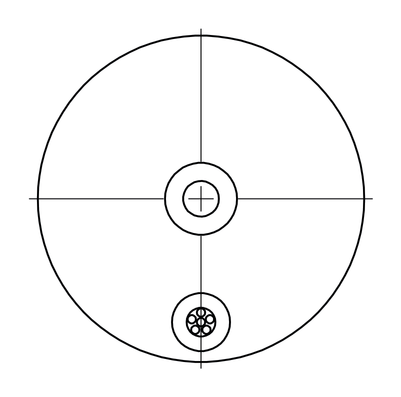

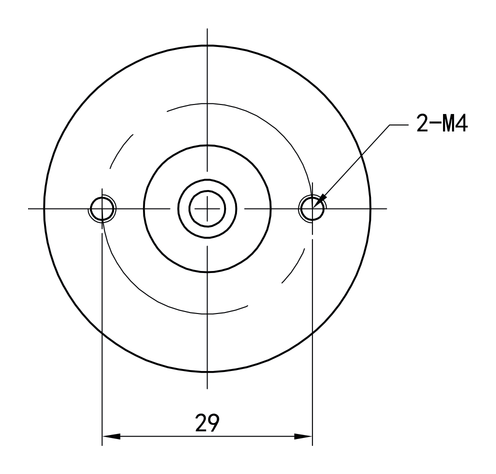

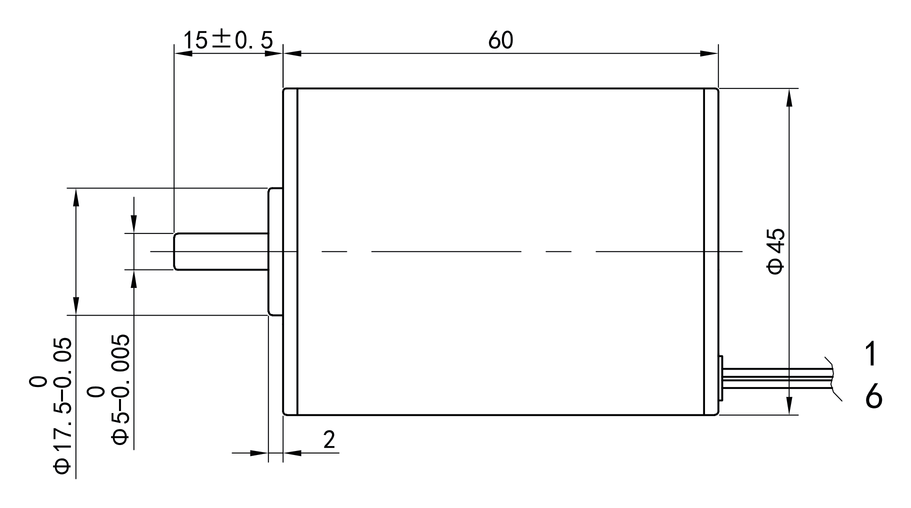

Model Dimension Drawings

Advantages

Compact frame: The 45 mm motor format supports space-constrained equipment designs.

Published performance options: Source-listed rated power is 50 W / 72 W, with rated speed of 3700 rpm / 5500 rpm.

Bidirectional operation: The source page lists CW/CCW rotation.

Speed-control and feedback functions: PWM speed control and FG signal output are listed on the source page.

Protection functions: Locked-rotor and overcurrent protection are listed in the function table.

Request A Quote

Motor Performance Parameters

Motor Model	Rated Voltage (V)	No-load Speed (rpm)	No-load Current (A)	Rated Torque (gf.cm)	Rated Speed (rpm)	Rated Current (A)	Rated Power (W)	Stall Torque (gf.cm)	Stall Current (A)
TCJ4560-1250	12	5000	0.23	900	3700	4.2	50	3500	13
TCJ4560-2475	24	7500	0.31	1000	5500	3	72	5000	17
