TCJ6595 65 mm Micro Brushless DC Motor, 12/24 V

Specifications

Model: TCJ6595-1275 / TCJ6595-24115

Rated Voltage: 12 V / 24 V

Rated Power: 175 W / 300 W

Rated Speed: 5700 rpm / 7650 rpm

Share as

Request A Quote

Download PDF

Introduction

The TCJ6595 is a compact 65 mm brushless DC motor available for 12 V / 24 V operation. The supplied performance table covers rated power of 175 W / 300 W, rated speeds of 5700 rpm / 7650 rpm, and rated torque of 3000 gf.cm / 4000 gf.cm. The source page also lists CW/CCW operation, FG signal output, and PWM speed control.

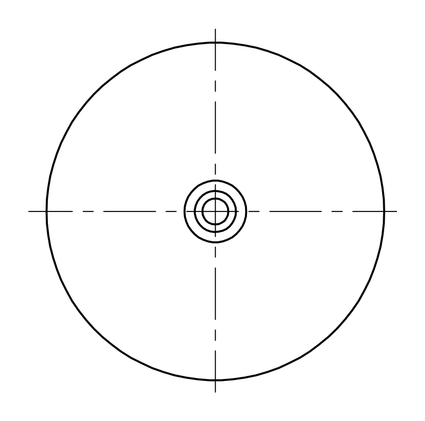

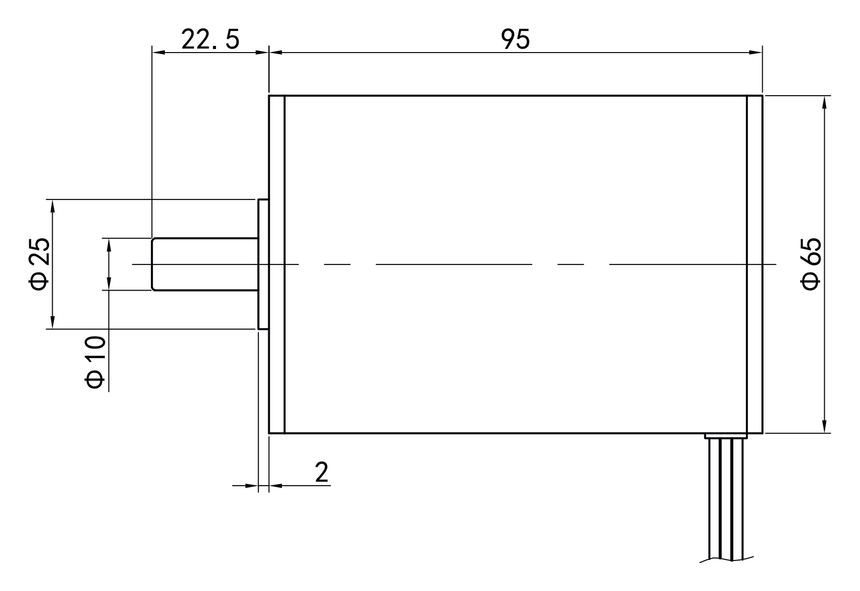

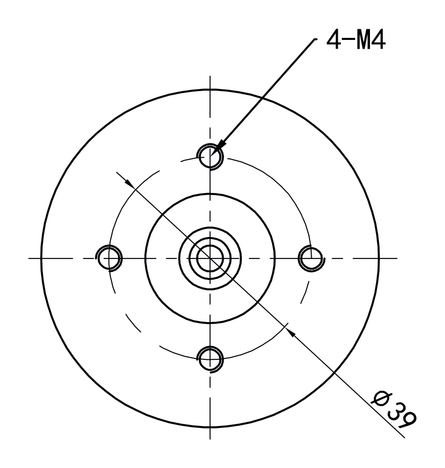

Model Dimension Drawings

Advantages

Compact frame: The 65 mm motor format supports space-constrained equipment designs.

Published performance options: Source-listed rated power is 175 W / 300 W, with rated speed of 5700 rpm / 7650 rpm.

Bidirectional operation: The source page lists CW/CCW rotation.

Speed-control and feedback functions: PWM speed control and FG signal output are listed on the source page.

Protection functions: Locked-rotor and overcurrent protection are listed in the function table.

Request A Quote

Motor Performance Parameters

Motor Model	Rated Voltage (V)	No-load Speed (rpm)	No-load Current (A)	Rated Torque (gf.cm)	Rated Speed (rpm)	Rated Current (A)	Rated Power (W)	Stall Torque (gf.cm)	Stall Current (A)
TCJ6595-1275	12	7500	1.8	3000	5700	14.3	175	12000	80
TCJ6595-24115	24	11500	1.56	4000	7650	12.5	300	15000	80
