TCL3657-PG36 36 mm Micro Brushless DC Planetary Gearmotor, 12/24 V

Specifications

Model: TCL3657-1240-PG36-XX / TCL3657-2460-PG36-XX

Rated Voltage: 12 V / 24 V

Rated Power: 14 W / 29 W

Gearbox Reduction Ratio: 3.7-731

Share as

Request A Quote

Download PDF

Introduction

The TCL3657-PG36 combines a compact 36 mm brushless DC motor with a reduction gearbox for lower-speed, higher-torque operation. The supplied variants operate at 12 V / 24 V with rated power of 14 W / 29 W. Available reduction ratios from 3.7-731:1 provide rated output speeds of 3-1135 rpm and rated output torque up to 50 kgf.cm.

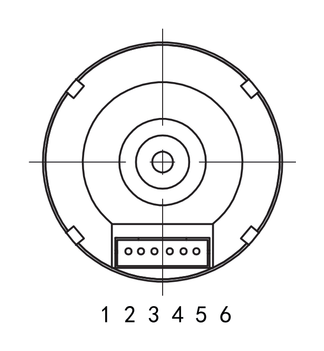

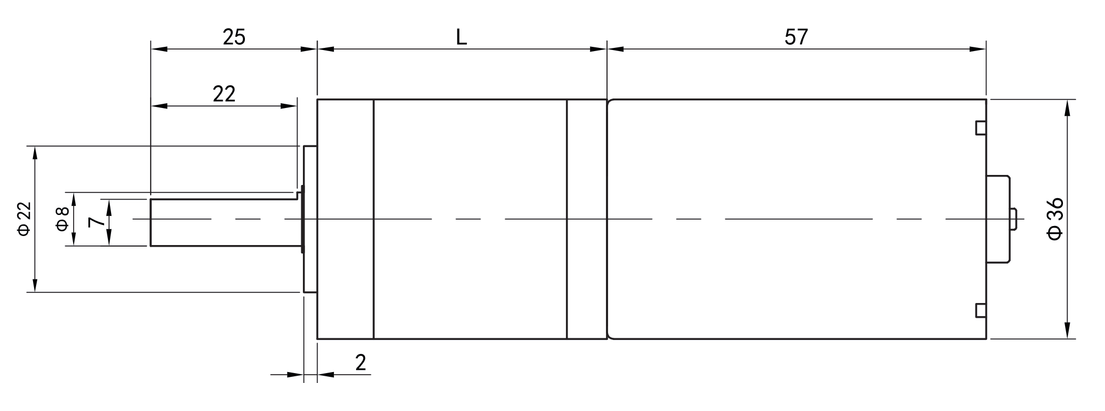

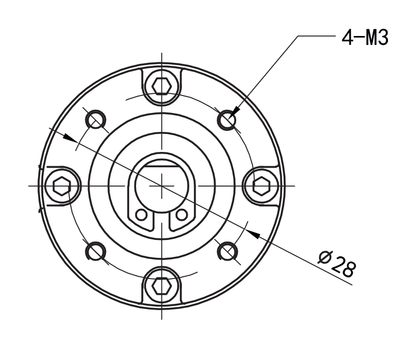

Model Dimension Drawings

Advantages

Compact geared configuration: Integrates a 36 mm brushless DC motor and gearbox in one assembly.

Broad ratio selection: Available reduction ratios range from 3.7:1 to 731:1.

Multiple output-torque options: Rated output torque reaches up to 50 kgf.cm, depending on ratio and voltage.

Published gearbox efficiency: The supplied table lists efficiency values from 50% to 80%.

Voltage options: Available in 12 V / 24 V versions.

Request A Quote

Motor Performance Parameters

Motor Model	Rated Voltage (V)	No-load Speed (rpm)	No-load Current (A)	Rated Torque (gf.cm)	Rated Speed (rpm)	Rated Current (A)	Rated Power (W)	Stall Torque (gf.cm)	Stall Current (A)
TCL3657-1240	12	3800	0.13	400	2500	1.2	14	1500	5
TCL3657-2460	24	5800	0.13	500	4200	1.2	29	2100	6

Geared Motor Performance Parameters

TCL3657-1240-PG36-XX | Rated Voltage: 12 V

Reduction Ratio	No-load Speed (rpm)	No-load Current (A)	Rated Torque (kgf.cm)	Rated Speed (rpm)	Rated Current (A)	Rated Power (W)	Efficiency (%)	Length (mm)
3.7	1027	0.15	1.18	676	1.2	14	80	84.3
5.2	731	0.15	1.66	481	1.2	14	80	84.3
13.7	277	0.15	3.84	182	1.2	14	70	92.4
19.2	198	0.15	5.38	130	1.2	14	70	92.4
27	141	0.15	7.56	93	1.2	14	70	92.4
50.5	75	0.15	12.12	50	1.2	14	60	100.5
71	54	0.15	17.04	35	1.2	14	60	100.5
100	38	0.15	24	25	1.2	14	60	100.5
139	27	0.15	33.36	18	1.2	14	60	100.5
187.5	20	0.15	37.5	13	1.2	14	50	111.6
263	14	0.15	50	10	1.2	14	50	111.6
370	10	0.15	50	7	1.2	14	50	111.6
520	7	0.15	50	5	1.2	14	50	111.6
731	5	0.15	50	3	1.2	14	50	111.6

TCL3657-2460-PG36-XX | Rated Voltage: 24 V

Reduction Ratio	No-load Speed (rpm)	No-load Current (A)	Rated Torque (kgf.cm)	Rated Speed (rpm)	Rated Current (A)	Rated Power (W)	Efficiency (%)	Length (mm)
3.7	1568	0.15	1.48	1135	1.2	29	80	84.3
5.2	1115	0.15	2.08	808	1.2	29	80	84.3
13.7	423	0.15	4.8	307	1.2	29	70	92.4
19.2	302	0.15	6.72	219	1.2	29	70	92.4
27	215	0.15	9.45	156	1.2	29	70	92.4
50.5	115	0.15	15.15	83	1.2	29	60	100.5
71	82	0.15	21.3	59	1.2	29	60	100.5
100	58	0.15	30	42	1.2	29	60	100.5
139	42	0.15	41.7	30	1.2	29	60	100.5
187.5	31	0.15	46.88	22	1.2	29	50	111.6
263	22	0.15	50	16	1.2	29	50	111.6
370	16	0.15	50	11	1.2	29	50	111.6
520	11	0.15	50	8	1.2	29	50	111.6
731	8	0.15	50	6	1.2	29	50	111.6
