TC5BLD750-RV050 86 mm Brushless DC Worm Gearmotor, 750 W, 24/36/48/310 V

Specifications

Model: TC5BLD750-RV050

Gearhead: RV050-□ (Worm gear reducer)

Rated Voltage: 24 V / 36 V / 48 V / 310 V

Rated Power / Speed: 750 W / 2000 rpm

Share as

Request A Quote

Download PDF

Introduction

The TC5BLD750-RV050 combines the supplied 86 mm brushless DC motor with the Worm gear reducer. The supplied catalog specifies 750 W, a rated motor speed of 2000 rpm, rated motor torque of 3.58 N·m, and peak motor torque of 10.74 N·m. Available voltage and reduction-ratio options are listed in the tables below.

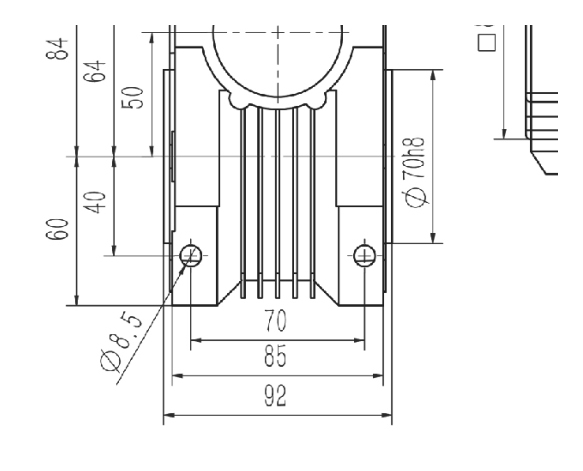

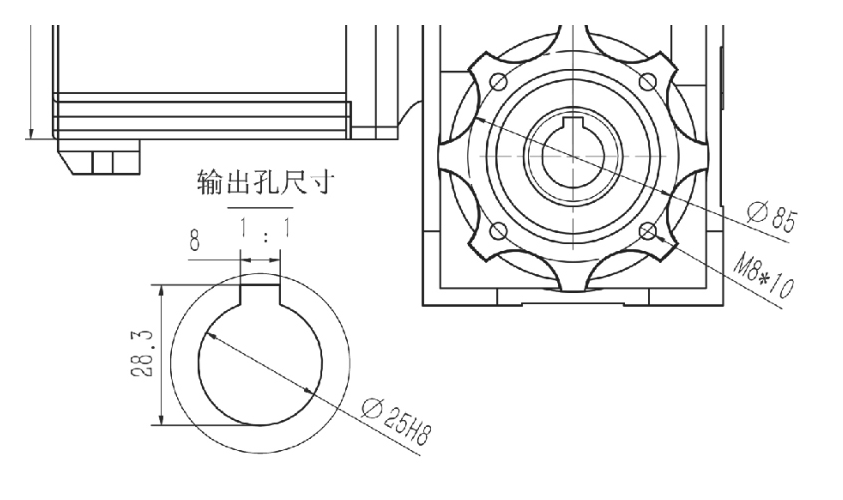

Model Dimension Drawings

Advantages

Matched drive configuration: The supplied 86 mm brushless DC motor is paired with the Worm gear reducer.

Catalog-rated performance: 750 W at 2000 rpm, with rated motor torque of 3.58 N·m.

Peak motor torque: Up to 10.74 N·m according to the supplied catalog page.

Voltage options: 24 V / 36 V / 48 V / 310 V.

Reduction-ratio selection: 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 100.

Request A Quote

Continuous Rating Specifications

Model	Voltage (V)	Rated Power (W)	No-load Speed (rpm)	Rated Speed (rpm)	Rated Current (A)	Rated Torque (N.m)	Peak Torque (N.m)
TC5BLD750-24A-20S	24	750	2700	2000	39.06	3.58	10.74
TC5BLD750-36A-20S	36	750	2700	2000	26.04	3.58	10.74
TC5BLD750-48A-20S	48	750	2700	2000	19.53	3.58	10.74
TC5BLD750-310A-20S	310	750	2600	2000	3.02	3.58	10.74

Gearhead Options

Gearhead Type	Gearhead Model	Available Reduction Ratios
Worm gear reducer	RV050-□	7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 100

Catalog note: actual output speed may be approximately 2%-20% lower than the calculated value, depending on load.
