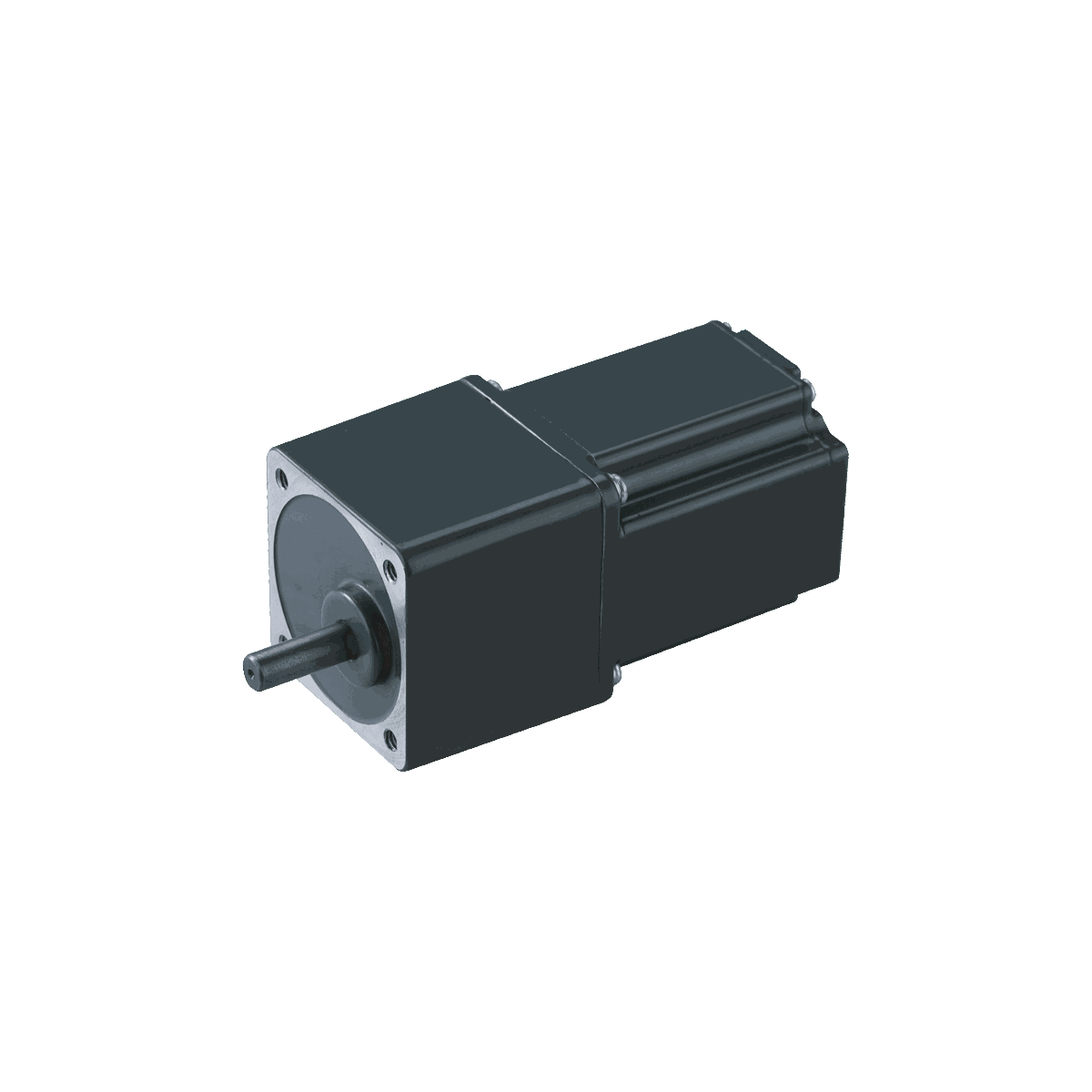

TC0BLD15-GN 42 mm Brushless DC Gearmotor, 15 W, 12/24/36/48/310 V

Specifications

Model: TC0BLD15-GN

Gearhead: 0GN□K (Long-life, low-noise gearhead)

Rated Voltage: 12 V / 24 V / 36 V / 48 V / 310 V

Rated Power / Speed: 15 W / 3000 rpm

Share as

Request A Quote

Download PDF

Introduction

The TC0BLD15-GN combines the supplied 42 mm brushless DC motor with the Long-life, low-noise gearhead. The supplied catalog specifies 15 W, a rated motor speed of 3000 rpm, rated motor torque of 0.05 N·m, and peak motor torque of 0.14 N·m. Available voltage and reduction-ratio options are listed in the tables below.

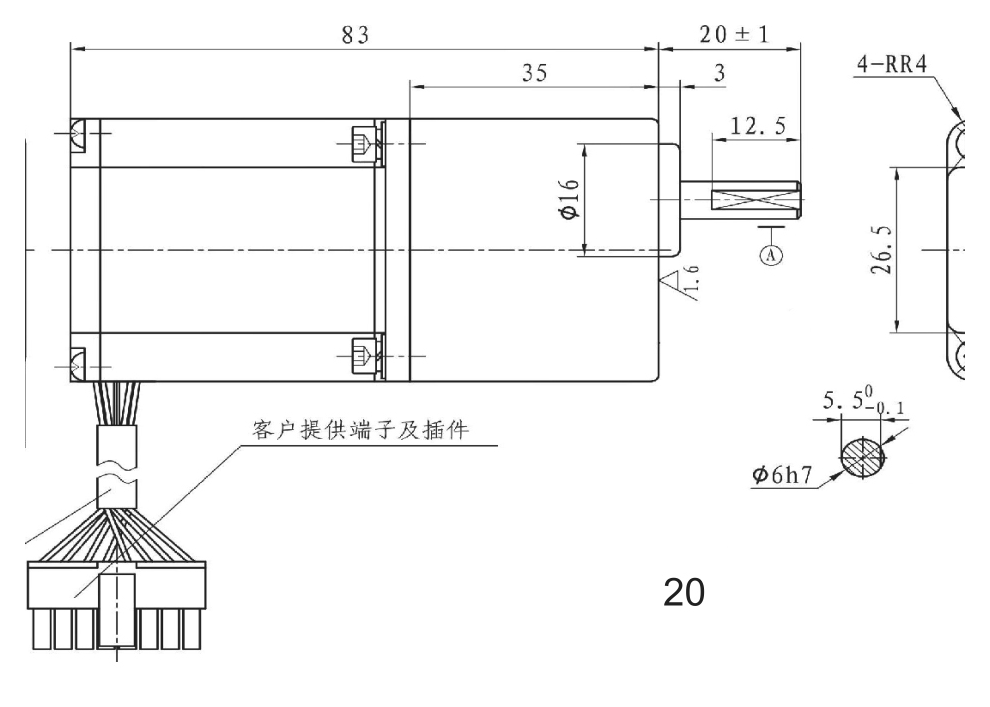

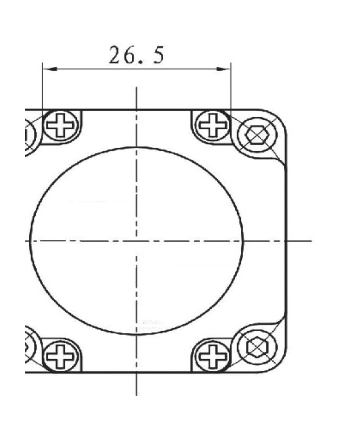

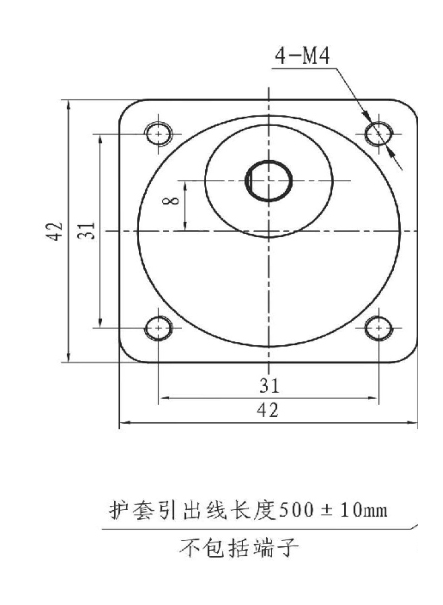

Model Dimension Drawings

Advantages

Matched drive configuration: The supplied 42 mm brushless DC motor is paired with the Long-life, low-noise gearhead.

Catalog-rated performance: 15 W at 3000 rpm, with rated motor torque of 0.05 N·m.

Peak motor torque: Up to 0.14 N·m according to the supplied catalog page.

Voltage options: 12 V / 24 V / 36 V / 48 V / 310 V.

Reduction-ratio selection: 5, 10, 15, 20, 30, 50, 100, 200.

Request A Quote

Continuous Rating Specifications

Model	Voltage (V)	Rated Power (W)	No-load Speed (rpm)	Rated Speed (rpm)	Rated Current (A)	Rated Torque (N.m)	Peak Torque (N.m)
TC0BLD15-12GN-30S	12	15	3300	3000	1.56	0.05	0.14
TC0BLD15-24GN-30S	24	15	3300	3000	0.78	0.05	0.14
TC0BLD15-36GN-30S	36	15	3300	3000	0.52	0.05	0.14
TC0BLD15-48GN-30S	48	15	3300	3000	0.39	0.05	0.14
TC0BLD15-310GN-30S	310	15	3300	3000	0.06	0.05	0.14

Gearhead Options

Gearhead Type	Gearhead Model	Available Reduction Ratios
Long-life, low-noise gearhead	0GN□K	5, 10, 15, 20, 30, 50, 100, 200

Catalog note: actual output speed may be approximately 2%-20% lower than the calculated value, depending on load.
