TC57BLD 57 mm Brushless DC Motor, 50-200 W

Specifications

Model: TC57BLD Series

Rated Voltage: 12 V / 24 V / 36 V / 48 V / 310 V DC or 220 V AC

Rated Power: 50-200 W

Rated Speed: 1,000-3,000 rpm

Share as

Request A Quote

Download PDF

Introduction

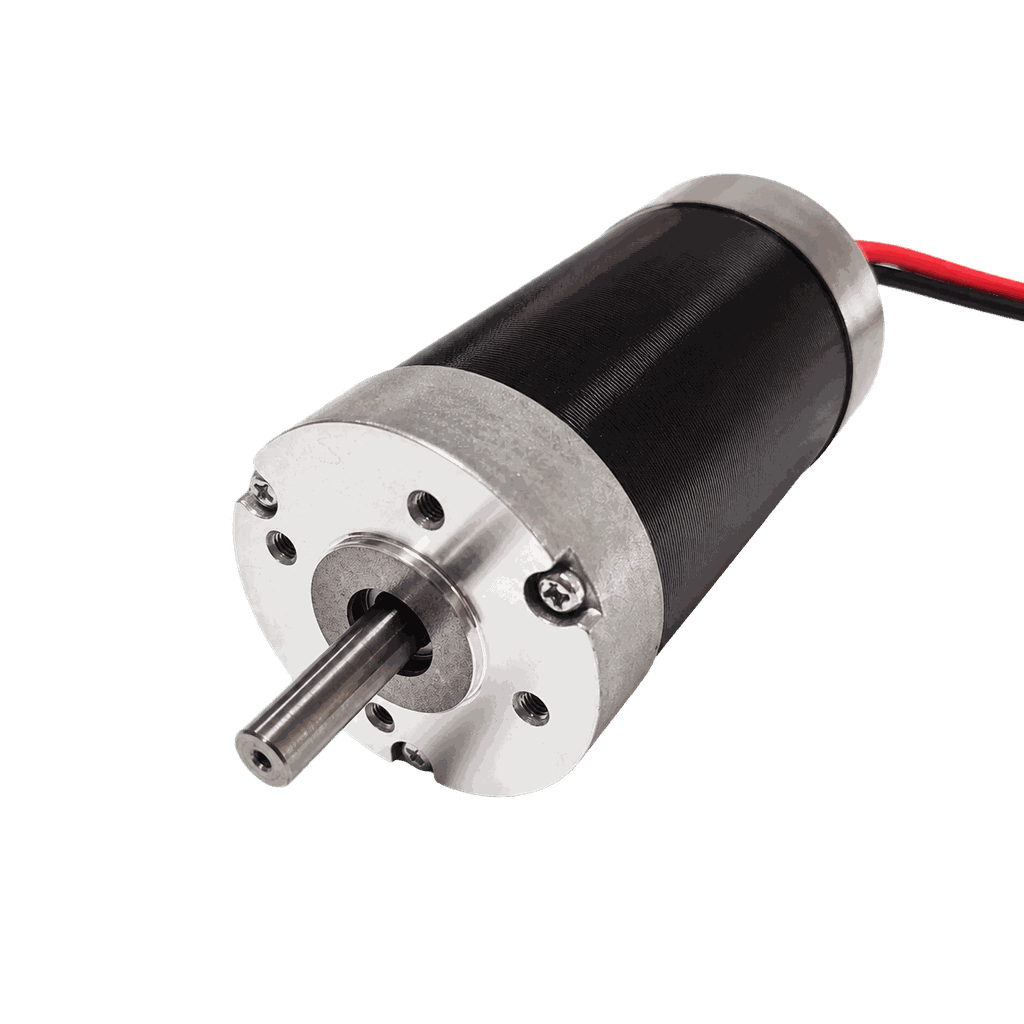

The TC57 series includes compact 57 mm square and round brushless DC motors with rated power from 50 to 200 W. Available voltage options include 12, 24, 36, 48, and 310 V DC or 220 V AC. Rated speeds range from 1,000 to 3,000 rpm, with rated torque up to 0.64 N.m and peak torque up to 1.91 N.m.

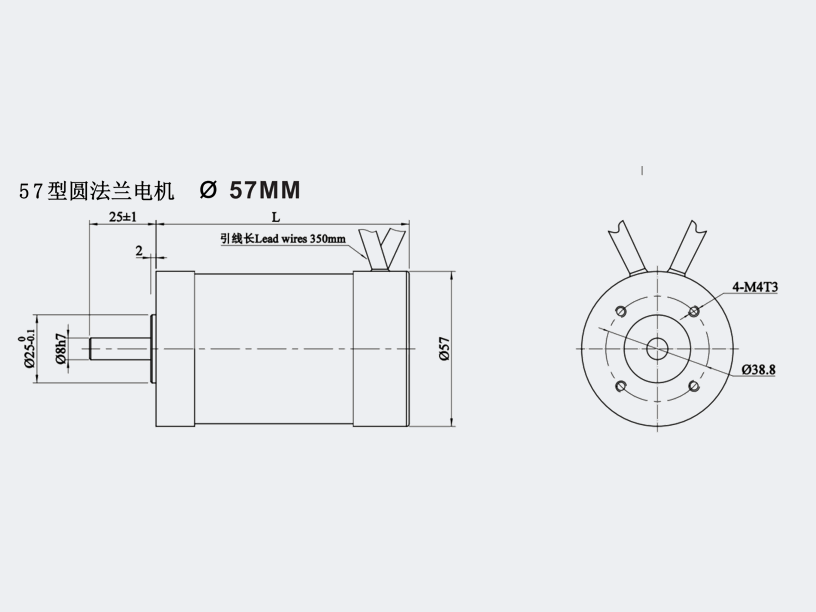

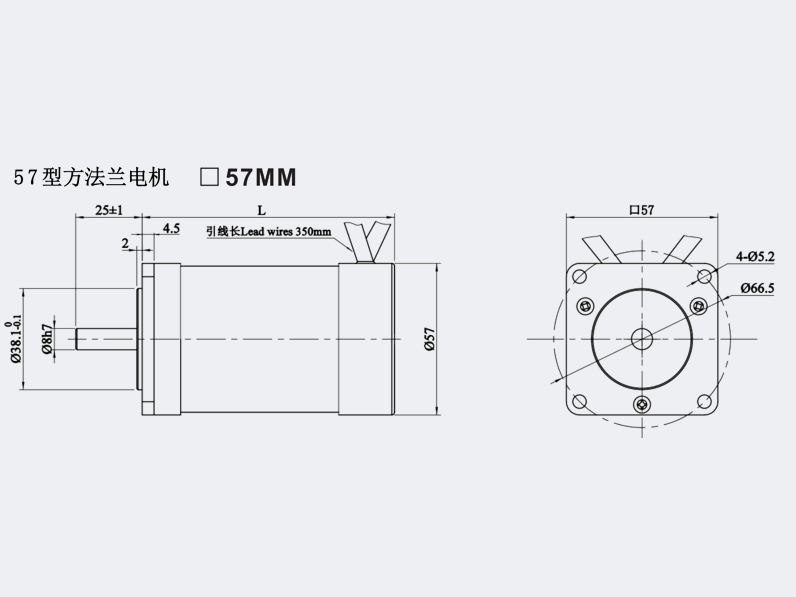

Model Dimension Drawings

Advantages

Compact frame options: Provides 50 W to 200 W of rated power in 57 mm square and round motor configurations.

Flexible speed and torque range: Covers rated speeds from 1,000 to 3,000 rpm with rated torque up to 0.64 N.m.

Strong short-term torque capability: Delivers peak torque up to 1.91 N.m for acceleration and intermittent loads.

Broad voltage selection: Supports 12, 24, 36, 48, and 310 V DC or 220 V AC versions.

Configurable operating specifications: Voltage, power, speed, ambient-temperature range, and IP class can be customized.

Request A Quote

Continuous Rating Specifications

Model	Voltage (V)	Rated Power (W)	Rated Speed (RPM)	Rated Current (A)	Rated Torque (N.m)	Peak Torque (N.m)	No-load Current (A)	Weight (kg)	Motor Length L (mm)
TC57BLD50-12A-30S	12	50	3000	6.0	0.16	0.48	≤1.2	0.6	55
TC57BLD50-24A-30S	24	50	3000	3.0	0.16	0.48	≤0.6	0.6	55
TC57BLD50-24A-10S	24	50	1000	3.0	0.48	1.43	≤0.6	1.0	95
TC57BLD50-24A-20S	24	50	2000	3.0	0.24	0.72	≤0.6	0.8	75
TC57BLD75-24A-30S	24	75	3000	4.5	0.24	0.72	≤0.9	0.8	75
TC57BLD100-24A-30S	24	100	3000	6.0	0.32	0.95	≤1.2	0.8	75
TC57BLD100-48A-30S	48	100	3000	3.0	0.32	0.95	≤0.6	0.8	75
TC57BLD100-24A-15S	24	100	1500	6.0	0.64	1.91	≤1.2	1.3	115
TC57BLD100-24A-20S	24	100	2000	6.0	0.48	1.43	≤1.2	1.0	95
TC57BLD100-36A-30S	36	100	3000	4.0	0.32	0.95	≤0.8	0.8	75
TC57BLD100-310A-30S	310/AC220	100	3000	0.5	0.32	0.95	≤0.12	0.8	75
TC57BLD100-310A-20S	310/AC220	100	2000	0.5	0.48	1.43	≤0.12	1.0	95
TC57BLD120-24A-30S	24	120	3000	7.1	0.38	1.15	≤1.2	1.0	95
TC57BLD150-24A-30S	24	150	3000	8.9	0.48	1.43	≤1.5	1.0	95
TC57BLD150-48A-30S	48	150	3000	4.5	0.48	1.43	≤0.9	1.0	95
TC57BLD150-310A-30S	310/AC220	150	3000	0.7	0.48	1.43	≤0.15	1.0	95
TC57BLD200-24A-30S	24	200	3000	11.6	0.64	1.91	≤2.0	1.3	115
TC57BLD200-36A-30S	36	200	3000	7.7	0.64	1.91	≤1.5	1.3	115
TC57BLD200-48A-30S	48	200	3000	5.8	0.64	1.91	≤1.2	1.3	115
TC57BLD200-310A-30S	310/AC220	200	3000	0.9	0.64	1.91	≤0.2	1.3	115

Customization note: Voltage, power, speed, ambient temperature (default: -10°C to +40°C), and IP class (default: IP20) can be customized.
