TCK1620-E-PG16 16 mm Slotless Brushless DC Planetary Gearmotor with 1024 PPR Encoder

Specifications

Model: TCK1620-E-PG16

Encoder Type: Magnetic Encoder

Encoder Resolution: 1,024 PPR

Encoder Supply Voltage: 3.0-5.5 V

Share as

Request A Quote

Download PDF

Introduction

The TCK1620-E-PG16 is a compact 16 mm brushless DC planetary gear motor with a non-contact magnetic encoder. The encoder provides 1,024 PPR as standard, with resolutions from 8 to 2,048 PPR available. It supports SPI and ABZ outputs, operates from 3.0 to 5.5 V, and handles speeds up to 20,000 rpm.

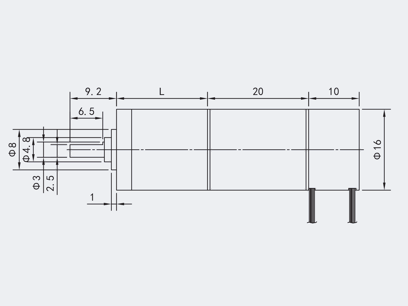

Model Dimension Drawings

Advantages

Ultra-compact integrated design: Combines a short-body slotless brushless motor, a PG16 planetary gearbox, and a magnetic encoder.

High-resolution feedback: Multiple resolutions from 8 to 2,048 PPR support a broad range of control requirements.

Flexible signal output: Supports both SPI communication and ABZ incremental feedback.

High-speed encoder capability: The non-contact magnetic encoder supports rotational speeds of up to 20,000 rpm.

Reliable electrical design: Operates from -40 C to 125 C and includes integrated pin and power-supply protection.

Request A Quote

Technical Datas

No motor performance parameter table is shown in the supplied TCK1620-E-PG16 image. The image contains encoder electrical properties only; no values have been inferred or copied from another model.
