TCK1242-PG12 12 mm Slotless Brushless DC Planetary Gearmotor, 12/24 V

Specifications

Model: TCK13A2-12230-PG12-XX/ TCK12A2-24230-PG12-XX
Rated Voltage: 12 V/24 V
Rated Power: 12 W
Gearbox Reduction Ratio: 4-625
Share as

Introduction

The TCK1242-PG12 combines a 12 mm brushless DC motor with a precision planetary gearbox. Available for 12 V or 24 V operation, it delivers 12 W rated power. Gear ratios from 4:1 to 625:1 are available, providing rated output speeds from 31 to 4,950 rpm and rated output torque up to 1.8 kgf·cm.

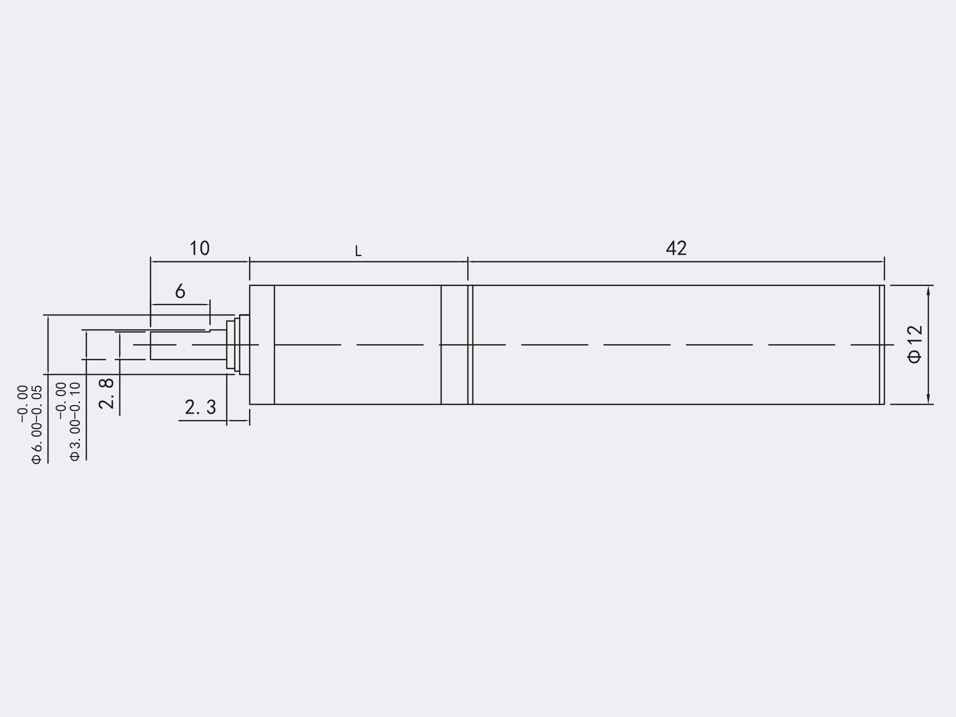

Model Dimension Drawings

Advantages

Compact 12 W geared solution: Combines a 12 W slotless brushless motor with a 12 mm planetary gearbox.
Wide range of gear ratios: Reduction ratios from 4:1 to 625:1 support a broad range of speed and torque requirements.
Multiple torque options: Provides rated output torque of up to 1.8 kgf·cm, depending on the selected gear ratio.
Efficient power transmission: Gearbox efficiency reaches up to 80%, depending on the selected reduction ratio.
Flexible voltage options: Available in both 12 V and 24 V versions.
Request A Quote

Motor Performance Parameters

Model

Rated Voltage (V)

No-load Speed (RPM)

No-load Current (A)

Rated Torque (gf.cm)

Rated Speed (RPM)

Rated Current (A)

Rated Power (W)

Stall Torque (gf.cm)

Stall Current (A)

TCK1242-12230

12

23000

0.16

40

19700

0.98

12

284

6.00

TCK1242-24230

24

23000

0.08

42

19800

0.51

12

311

3.00

Geared Motor Performance Parameters

Reduction Ratio

12V No-load Speed (RPM)

12V No-load Current (A)

12V Rated Torque (kgf.cm)

12V Rated Speed (RPM)

12V Rated Current (A)

12V Rated Power (W)

12V Efficiency (%)

12V Length L (mm)

24V No-load Speed (RPM)

24V No-load Current (A)

24V Rated Torque (kgf.cm)

24V Rated Speed (RPM)

24V Rated Current (A)

24V Rated Power (W)

24V Efficiency (%)

24V Length L (mm)

4

5750

0.16

0.12

4925

0.98

12

80

56.3

5750

0.08

0.13

4950

0.51

12

80

56.3

5

4600

0.16

0.16

3940

0.98

12

80

56.3

4600

0.08

0.16

3960

0.51

12

80

56.3

16

1437

0.16

0.48

1231

0.98

12

75

59.35

1437

0.08

0.50

1237

0.51

12

75

59.35

20

1150

0.16

0.60

985

0.98

12

75

59.35

1150

0.08

0.63

990

0.51

12

75

59.35

25

920

0.16

0.75

788

0.98

12

75

59.35

920

0.08

0.78

792

0.51

12

75

59.35

64

359

0.16

1.60

307

0.98

12

65

62.4

359

0.08

1.60

309

0.51

12

65

62.4

80

287

0.16

1.60

246

0.98

12

65

62.4

287

0.08

1.60

247

0.51

12

65

62.4

100

230

0.16

1.60

197

0.98

12

65

62.4

230

0.08

1.60

198

0.51

12

65

62.4

125

184

0.16

1.20

157

0.98

12

65

62.4

184

0.08

1.20

158

0.51

12

65

62.4

256

89

0.16

1.80

76

0.98

12

55

64.45

89

0.08

1.80

77

0.51

12

55

64.45

320

71

0.16

1.80

61

0.98

12

55

64.45

71

0.08

1.80

61

0.51

12

55

64.45

400

57

0.16

1.80

49

0.98

12

55

64.45

57

0.08

1.80

49

0.51

12

55

64.45

500

46

0.16

1.80

39

0.98

12

55

64.45

46

0.08

1.80

39

0.51

12

55

64.45

500

46

0.16

1.40

39

0.98

12

55

64.45

46

0.08

1.40

39

0.51

12

55

64.45

625

36

0.16

1.40

31

0.98

12

55

64.45

36

0.08

1.40

31

0.51

12

55

64.45
