TCK1233-E-PG12 12 mm Slotless Brushless DC Planetary Gearmotor with Encoder

Specifications

Model: TCK1242-E-PG12
Encoder Type: Magnetic Encoder
Encoder Resolution: 1,024 PPR
Encoder Supply Voltage: 3.0–5.5 V
Share as

Introduction

The TCK1233-E-PG12 combines a 12 mm brushless DC gear motor with a non-contact magnetic encoder. The standard encoder resolution is 1,024 PPR, with resolutions from 8 to 2,048 PPR available. It supports SPI and ABZ outputs, operates from 3.0 to 5.5 V, and is suitable for speeds up to 20,000 rpm.

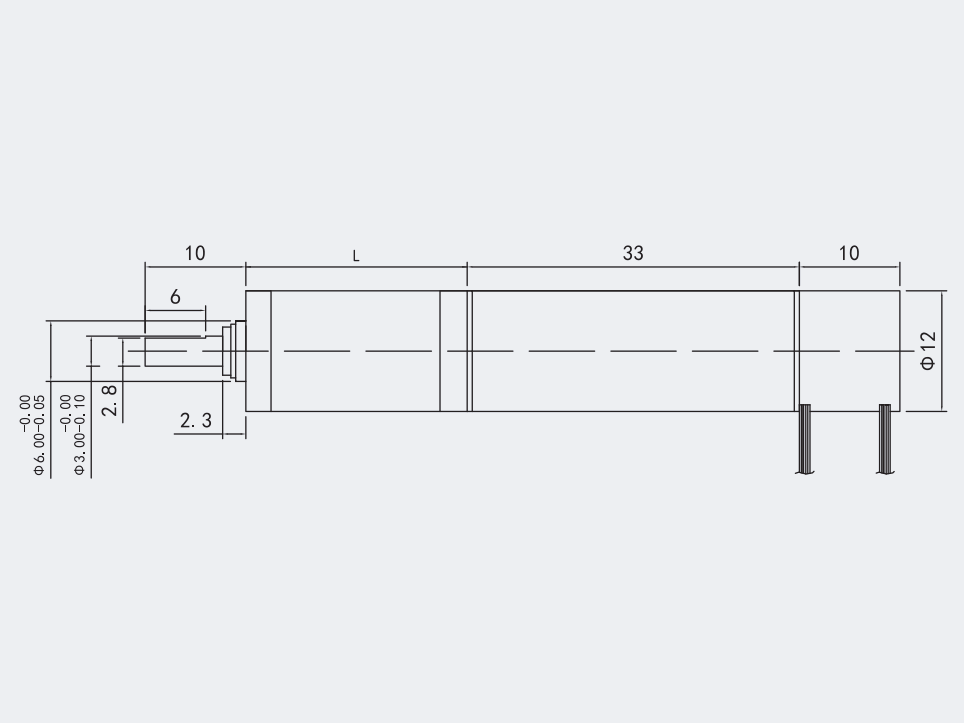

Model Dimension Drawings

Advantages

Compact integrated design: Combines a slotless brushless motor, a PG12 planetary gearbox, and a magnetic encoder in a 12 mm diameter package.
High-resolution feedback: Multiple encoder resolutions from 8 to 2,048 PPR support a wide range of motion-control requirements.
Versatile output interfaces: Supports SPI communication and ABZ incremental output for flexible system integration.
High-speed magnetic sensing: The non-contact encoder supports rotational speeds of up to 20,000 rpm.
Reliable operation: Supports an operating temperature range of −40°C to 125°C and includes integrated pin and power-supply protection.
