TCK1635-E-PG16 16 mm Slotless Brushless DC Planetary Gearmotor with 1024 PPR Encoder

Specifications

Model: TCK1635-E-PG16

Encoder Type: Magnetic Encoder

Encoder Resolution: 1,024 PPR

Encoder Supply Voltage: 3.0-5.5 V

Share as

Request A Quote

Download PDF

Introduction

The TCK1635-E-PG16 combines a compact 16 mm brushless DC motor, a precision planetary gearbox, and a non-contact magnetic encoder. The encoder provides 1,024 PPR as standard, supports SPI and ABZ outputs, operates from 3.0 to 5.5 V, and is suitable for speeds up to 20,000 rpm.

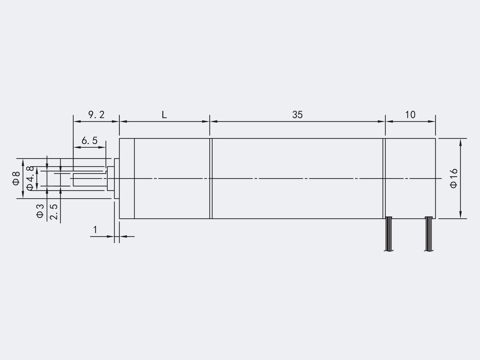

Model Dimension Drawings

Advantages

Integrated feedback solution: Combines a higher-output slotless brushless motor, a PG16 planetary gearbox, and a magnetic encoder.

High-resolution feedback: Encoder resolutions from 8 to 2,048 PPR support accurate speed and position feedback.

Versatile output interfaces: SPI communication and ABZ incremental output simplify integration with different control systems.

High-speed magnetic sensing: The non-contact encoder supports rotational speeds of up to 20,000 rpm.

Wide temperature tolerance: Designed for operation from -40 C to 125 C with integrated pin and power-supply protection.

Request A Quote

Technical Datas

No motor performance parameter table is shown in the supplied TCK1635-E-PG16 image. The image contains encoder electrical properties only; no values have been inferred or copied from another model.
