The TCK1233-PG12 combines a compact 12 mm brushless DC motor with a precision planetary gearbox. Available in 12 V and 24 V versions, it provides rated power from 7 W to 12 W. Gear ratios from 4:1 to 625:1 are available, with rated output speeds from 24 to 5,050 rpm and rated torque up to 1.8 kgf·cm.
Model | Rated Voltage (V) | No-load Speed (RPM) | No-load Current (A) | Rated Torque (gf.cm) | Rated Speed (RPM) | Rated Current (A) | Rated Power (W) | Stall Torque (gf.cm) | Stall Current (A) |
TCK1233-12180 | 12 | 18500 | 0.12 | 25 | 15000 | 0.53 | 7 | 128 | 2.30 |
TCK1233-24240 | 24 | 24000 | 0.09 | 27 | 20200 | 0.49 | 12 | 240 | 2.70 |

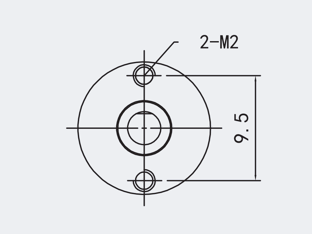

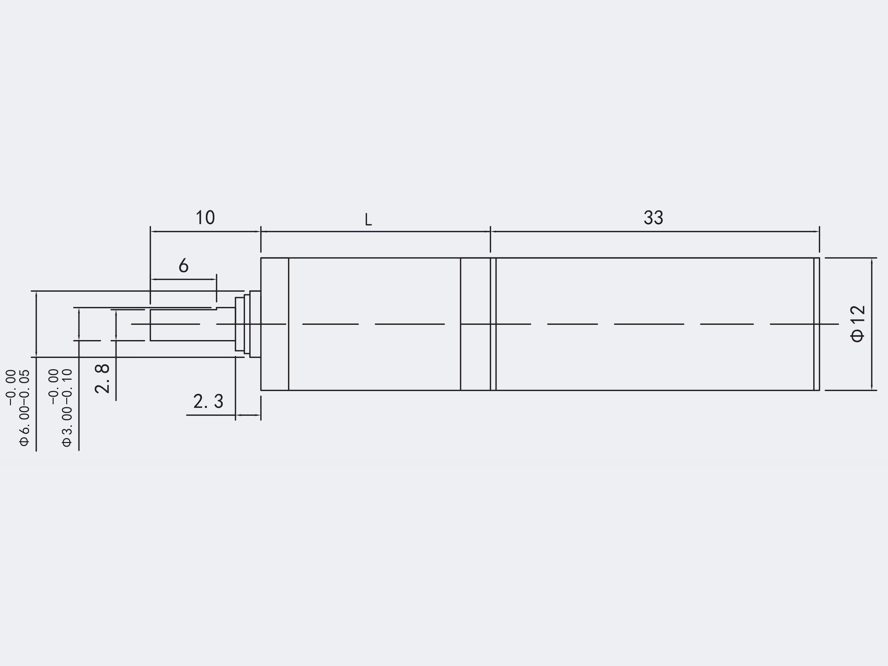

Reduction Ratio | 12V No-load Speed (RPM) | 12V No-load Current (A) | 12V Rated Torque (kgf.cm) | 12V Rated Speed (RPM) | 12V Rated Current (A) | 12V Rated Power (W) | 12V Efficiency (%) | 12V Length L (mm) | 24V No-load Speed (RPM) | 24V No-load Current (A) | 24V Rated Torque (kgf.cm) | 24V Rated Speed (RPM) | 24V Rated Current (A) | 24V Rated Power (W) | 24V Efficiency (%) | 24V Length L (mm) |
4 | 4625 | 0.12 | 0.08 | 3750 | 0.53 | 7 | 80 | 47.3 | 6000 | 0.09 | 0.11 | 5050 | 0.49 | 12 | 80 | 47.3 |
5 | 3700 | 0.12 | 0.10 | 3000 | 0.53 | 7 | 80 | 47.3 | 4800 | 0.09 | 0.14 | 4040 | 0.49 | 12 | 80 | 47.3 |
16 | 1565 | 0.12 | 0.30 | 937 | 0.53 | 7 | 75 | 50.35 | 1500 | 0.09 | 0.44 | 1262 | 0.49 | 12 | 75 | 50.35 |
20 | 925 | 0.12 | 0.38 | 750 | 0.53 | 7 | 75 | 50.35 | 1200 | 0.09 | 0.55 | 1010 | 0.49 | 12 | 75 | 50.35 |
25 | 740 | 0.12 | 0.46 | 600 | 0.53 | 7 | 75 | 50.35 | 960 | 0.09 | 0.69 | 808 | 0.49 | 12 | 75 | 50.35 |
64 | 289 | 0.12 | 1.04 | 234 | 0.53 | 7 | 65 | 53.4 | 375 | 0.09 | 1.54 | 315 | 0.49 | 12 | 65 | 53.4 |
80 | 231 | 0.12 | 1.30 | 187 | 0.53 | 7 | 65 | 53.4 | 300 | 0.09 | 1.60 | 252 | 0.49 | 12 | 65 | 53.4 |
100 | 185 | 0.12 | 1.60 | 150 | 0.53 | 7 | 65 | 53.4 | 240 | 0.09 | 1.60 | 202 | 0.49 | 12 | 65 | 53.4 |
125 | 148 | 0.12 | 1.20 | 120 | 0.53 | 7 | 65 | 53.4 | 192 | 0.09 | 1.20 | 161 | 0.49 | 12 | 65 | 53.4 |
256 | 72 | 0.12 | 1.80 | 58 | 0.53 | 7 | 55 | 55.45 | 93 | 0.09 | 1.80 | 78 | 0.49 | 12 | 55 | 55.45 |
320 | 57 | 0.12 | 1.80 | 46 | 0.53 | 7 | 55 | 55.45 | 75 | 0.09 | 1.80 | 63 | 0.49 | 12 | 55 | 55.45 |
400 | 46 | 0.12 | 1.80 | 37 | 0.53 | 7 | 55 | 55.45 | 60 | 0.09 | 1.80 | 50 | 0.49 | 12 | 55 | 55.45 |
500 | 37 | 0.12 | 1.80 | 30 | 0.53 | 7 | 55 | 55.45 | 48 | 0.09 | 1.80 | 40 | 0.49 | 12 | 55 | 55.45 |
500 | 37 | 0.12 | 1.40 | 30 | 0.53 | 7 | 55 | 55.45 | 48 | 0.09 | 1.40 | 40 | 0.49 | 12 | 55 | 55.45 |
625 | 29 | 0.12 | 1.40 | 24 | 0.53 | 7 | 55 | 55.45 | 38 | 0.09 | 1.40 | 32 | 0.49 | 12 | 55 | 55.45 |
