TC80 80 mm Brushless DC Motor, 150 W-1.2 kW

Specifications

Model: TC80BLD / TC80BLG Series
Rated Voltage: 12 V / 24 V / 36 V / 48 V / 310 V DC or 220 V AC
Rated Power: 150-1,200 W
Rated Speed: 1,500-20,000 rpm
Share as

Introduction

The TC80 series is a compact 80 mm brushless DC motor with rated power options from 150 to 1,200 W. Available voltages include 12, 24, 36, 48, and 310 V DC or 220 V AC. Standard rated speeds range from 1,500 to 3,000 rpm, while listed high-speed models reach 20,000 rpm. Rated torque reaches 3.2 N.m, with peak torque up to 9.5 N.m.

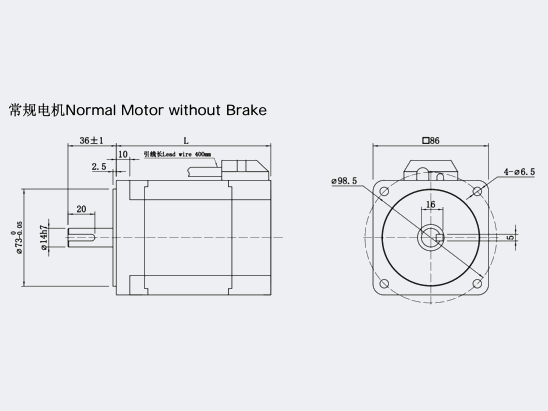

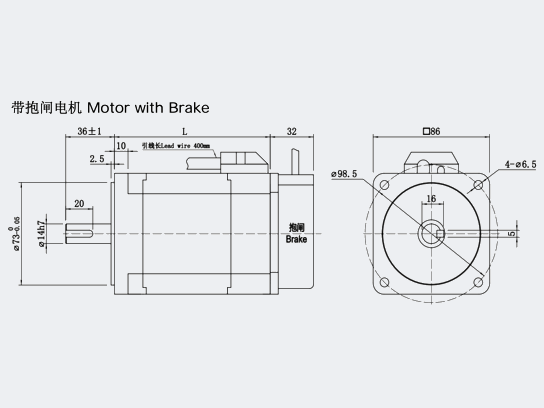

Model Dimension Drawings

Advantages

Wide power range: Covers rated outputs from 150 W to 1.2 kW in an 80 mm motor platform.
Standard and high-speed options: Standard models operate at 1,500 to 3,000 rpm, while listed high-speed versions reach 20,000 rpm.
High torque capability: Delivers rated torque up to 3.2 N.m and peak torque up to 9.5 N.m.
Broad voltage selection: Supports 12, 24, 36, 48, and 310 V DC or 220 V AC versions.
Configurable operating specifications: Voltage, power, speed, ambient-temperature range, and IP class can be customized.
Request A Quote

Continuous Rating Specifications

Model

Voltage
(V)

Rated Power
(W)

Rated Speed
(RPM)

Rated Current
(A)

Rated Torque
(N.m)

Peak Torque
(N.m)

No-load Current
(A)

Weight
(kg)

Motor Length L
(mm)

TC80BLD150-12A-15S

12

150

1500

17.9

1.0

2.9

≤3.0

2.0

95

TC80BLD150-24A-30S

24

150

3000

8.9

0.5

1.4

≤1.6

1.7

85

TC80BLD150-48A-30S

48

150

3000

4.5

0.5

1.4

≤1.0

1.7

85

TC80BLD150-310A-30S

310/AC220

150

3000

0.7

0.5

1.4

≤0.2

1.7

85

TC80BLD300-24A-30S

24

300

3000

16.7

1.0

2.9

≤3.0

2.0

95

TC80BLD300-36A-30S

36

300

2000

11.1

1.4

4.3

≤2.0

2.3

115

TC80BLD300-48A-30S

48

300

3000

8.3

1.0

2.9

≤1.6

2.0

95

TC80BLD300-310A-30S

310/AC220

300

3000

1.3

1.0

2.9

≤0.3

2.0

95

TC80BLD450-24A-30S

24

450

3000

23.4

1.4

4.3

≤4.0

2.3

115

TC80BLD450-48A-30S

48

450

3000

11.7

1.4

4.3

≤2.0

2.3

115

TC80BLD450-310A-30S

310/AC220

450

3000

1.8

1.4

4.3

≤0.3

2.3

115

TC80BLD550-48A-30S

48

550

3000

14.3

1.8

5.3

≤2.5

2.7

130

TC80BLD550-310A-30S

310/AC220

550

3000

2.2

1.8

5.3

≤0.3

2.7

130

TC80BLD1000-48A-200S

48

1000

20000

26.0

0.5

1.4

≤4.0

2.3

130

TC80BLD1200-31A-120S

310/AC220

1200

12000

4.8

1.0

2.9

≤0.8

2.5

130

TC80BLG750-48A-30S

48

750

3000

19.5

2.4

7.2

≤3.0

2.0

94

TC80BLG750-310A-30S

310

750

3000

3.0

2.4

7.2

≤0.5

2.0

94

TC80BLG1000-48A-30S

48

1000

3000

26.0

3.2

9.5

≤5.0

2.5

110

TC80BLG1000-310A-30S

310/AC220

1000

3000

4.0

3.2

9.5

≤0.7

2.5

110

Customization note: Voltage, power, speed, ambient temperature (default: -10°C to +40°C), and IP class (default: IP20) can be customized.
