The TCK1620-PG16 combines a compact 16 mm brushless DC motor with a precision planetary gearbox for high-torque, low-speed operation. Available in 12 V and 24 V versions, the motor has a rated power of 3 W. Gear ratios from 4:1 to 3,027:1 provide rated output speeds from 4 to 3,175 rpm and torque up to 2.4 kgf.cm.
Model | Rated Voltage (V) | No-load Speed (RPM) | No-load Current (A) | Rated Torque (gf.cm) | Rated Speed (RPM) | Rated Current (A) | Rated Power (W) | Stall Torque (gf.cm) | Stall Current (A) |
TCK1620-12150 | 12 | 15000 | 0.04 | 15 | 12500 | 0.26 | 3 | 106 | 1.40 |
TCK1620-24150 | 24 | 15000 | 0.02 | 17.5 | 12700 | 0.14 | 3 | 116 | 0.80 |

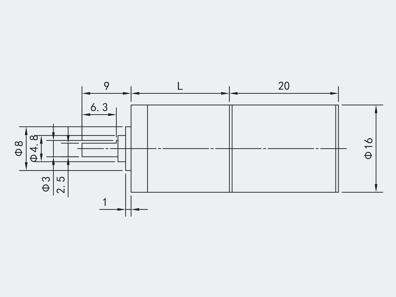

Reduction Ratio | 12V No-load Speed (RPM) | 12V No-load Current (A) | 12V Rated Torque (kgf.cm) | 12V Rated Speed (RPM) | 12V Rated Current (A) | 12V Rated Power (W) | 12V Efficiency (%) | 12V Length L (mm) | 24V No-load Speed (RPM) | 24V No-load Current (A) | 24V Rated Torque (kgf.cm) | 24V Rated Speed (RPM) | 24V Rated Current (A) | 24V Rated Power (W) | 24V Efficiency (%) | 24V Length L (mm) |
4 | 3750 | 0.04 | 0.05 | 3125 | 0.3 | 4 | 80 | 36.5 | 3750 | 0.02 | 0.05 | 3175 | 0.2 | 4 | 80 | 36.35 |
14 | 1071 | 0.04 | 0.14 | 892 | 0.3 | 4 | 70 | 40 | 1071 | 0.02 | 0.17 | 907 | 0.2 | 4 | 70 | 40 |
16 | 937 | 0.04 | 0.16 | 781 | 0.3 | 4 | 70 | 40 | 937 | 0.02 | 0.19 | 793 | 0.2 | 4 | 70 | 40 |
19 | 789 | 0.04 | 0.19 | 657 | 0.3 | 4 | 70 | 40 | 789 | 0.02 | 0.23 | 668 | 0.2 | 4 | 70 | 40 |
29 | 517 | 0.04 | 0.30 | 431 | 0.3 | 4 | 70 | 40 | 517 | 0.02 | 0.28 | 437 | 0.2 | 4 | 70 | 40 |
53 | 283 | 0.04 | 0.47 | 235 | 0.3 | 4 | 60 | 43.75 | 283 | 0.02 | 0.55 | 239 | 0.2 | 4 | 60 | 43.75 |
62 | 241 | 0.04 | 0.55 | 201 | 0.3 | 4 | 60 | 43.75 | 241 | 0.02 | 0.65 | 204 | 0.2 | 4 | 60 | 43.75 |
72 | 208 | 0.04 | 0.64 | 173 | 0.3 | 4 | 60 | 43.75 | 208 | 0.02 | 0.75 | 176 | 0.2 | 4 | 60 | 43.75 |
84 | 178 | 0.04 | 0.75 | 148 | 0.3 | 4 | 60 | 43.75 | 178 | 0.02 | 0.88 | 151 | 0.2 | 4 | 60 | 43.75 |
104 | 144 | 0.04 | 0.93 | 120 | 0.3 | 4 | 60 | 43.75 | 144 | 0.02 | 1.09 | 122 | 0.2 | 4 | 60 | 43.75 |
128 | 117 | 0.04 | 1.15 | 97 | 0.3 | 4 | 60 | 43.75 | 117 | 0.02 | 1.34 | 99 | 0.2 | 4 | 60 | 43.75 |
157 | 95 | 0.04 | 1.41 | 79 | 0.3 | 4 | 60 | 43.75 | 95 | 0.02 | 1.64 | 80 | 0.2 | 4 | 60 | 43.75 |
231 | 64 | 0.04 | 1.73 | 54 | 0.3 | 4 | 50 | 47.4 | 64 | 0.02 | 2.02 | 54 | 0.2 | 4 | 50 | 47.4 |
284 | 52 | 0.04 | 2.13 | 44 | 0.3 | 4 | 50 | 47.4 | 52 | 0.02 | 2.40 | 44 | 0.2 | 4 | 50 | 47.4 |
370 | 40 | 0.04 | 2.40 | 33 | 0.3 | 4 | 50 | 47.4 | 40 | 0.02 | 2.40 | 34 | 0.2 | 4 | 50 | 47.4 |
390 | 38 | 0.04 | 2.40 | 32 | 0.3 | 4 | 50 | 47.4 | 38 | 0.02 | 2.40 | 32 | 0.2 | 4 | 50 | 47.4 |
455 | 32 | 0.04 | 2.40 | 27 | 0.3 | 4 | 50 | 47.4 | 32 | 0.02 | 2.40 | 27 | 0.2 | 4 | 50 | 47.4 |
561 | 26 | 0.04 | 2.40 | 22 | 0.3 | 4 | 50 | 47.4 | 26 | 0.02 | 2.40 | 22 | 0.2 | 4 | 50 | 47.4 |
690 | 21 | 0.04 | 2.40 | 18 | 0.3 | 4 | 50 | 47.4 | 21 | 0.02 | 2.40 | 18 | 0.2 | 4 | 50 | 47.4 |
850 | 17 | 0.04 | 2.40 | 14 | 0.3 | 4 | 50 | 47.4 | 17 | 0.02 | 2.40 | 14 | 0.2 | 4 | 50 | 47.4 |
1014 | 14 | 0.04 | 2.40 | 12 | 0.3 | 4 | 40 | 51.05 | 14 | 0.02 | 2.40 | 12 | 0.2 | 4 | 40 | 51.05 |
1621 | 9 | 0.04 | 2.40 | 7 | 0.3 | 4 | 40 | 51.05 | 9 | 0.02 | 2.40 | 7 | 0.2 | 4 | 40 | 51.05 |
1996 | 7 | 0.04 | 2.40 | 6 | 0.3 | 4 | 40 | 51.05 | 7 | 0.02 | 2.40 | 6 | 0.2 | 4 | 40 | 51.05 |
3027 | 4 | 0.04 | 2.40 | 4 | 0.3 | 4 | 40 | 51.05 | 4 | 0.02 | 2.40 | 4 | 0.2 | 4 | 40 | 51.05 |
