TCK1223 12 × 23 mm Slotless Brushless DC Motor

Specifications

Model: TCK1223-12250 / TCK1223-24250

Rated Voltage: 12 V / 24 V

Rated Power: 6 W

Rated Speed: 16,900 rpm / 18,600 rpm

Share as

Request A Quote

Download PDF

Introduction

The TCK1223 is a compact 12 mm brushless DC motor with a rated power of 6 W. Available in 12 V and 24 V versions, it delivers rated speeds from 16,900 to 18,600 rpm and rated torque from 17.3 to 18.9 gf·cm. PWM speed control, CW/CCW rotation, FG signal output, and protection functions are supported.

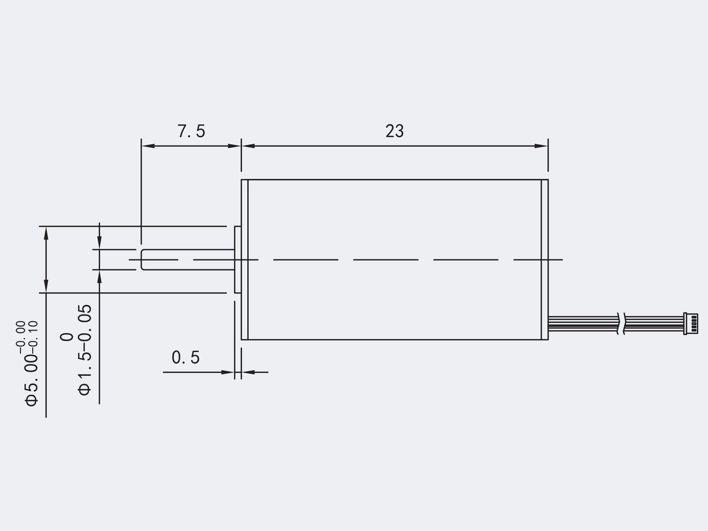

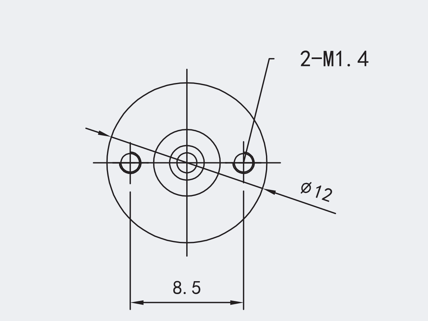

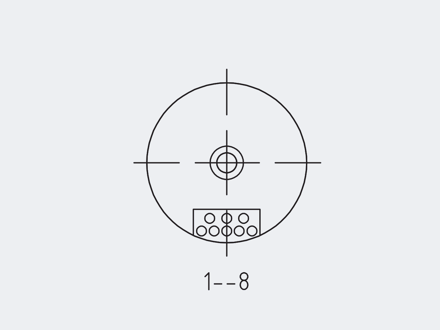

Model Dimension Drawings

Advantages

Ultra-compact design: The 12 mm diameter housing and 23 mm body length are ideal for space-constrained applications.

High-speed performance: Delivers a no-load speed of up to 26,000 rpm and a rated output power of 6 W.

Flexible motor control: Supports PWM speed control, CW/CCW rotation, and FG speed feedback.

Built-in motor protection: Locked-rotor and overcurrent protection help safeguard the motor during operation.

Multiple configuration options: Available in 12 V and 24 V versions and compatible with gearboxes and encoders.

Request A Quote

Technical Datas

Model	Rated Voltage	No-load		Rated				Stall		Parameters
Model	Rated Voltage	Speed	Current	Torque	Speed	Current	Power	Torque	Current	Torque Constant	Speed Constant	Speed/Torque Constant
Model	V	RPM	A	gf.cm	RPM	A	W	gf.cm	A	gf.cm/A	RPM/V	RPM/gf.cm
TCK1223-12250	12	24600	0.06	18.9	16900	0.55	6	89	1.50	44.8	2050	381
TCK1223-24250	24	26000	0.03	17.3	18600	0.24	6	88	1.02	86.5	1105	310
