TC60 60 mm Brushless DC Motor, 70-600 W

Specifications

Model: TC60BLD / TC60BLK Series
Rated Voltage: 12 V / 24 V / 36 V / 48 V / 310 V DC or 220 V AC
Rated Power: 70-600 W
Rated Speed: 1,500-3,000 rpm
Share as

Introduction

The TC60 series is a compact 60 mm brushless DC motor available with rated power from 70 to 600 W. It supports 12, 24, 36, 48, and 310 V DC or 220 V AC versions. Rated speeds range from 1,500 to 3,000 rpm, with rated torque up to 1.91 N.m and peak torque up to 5.73 N.m.

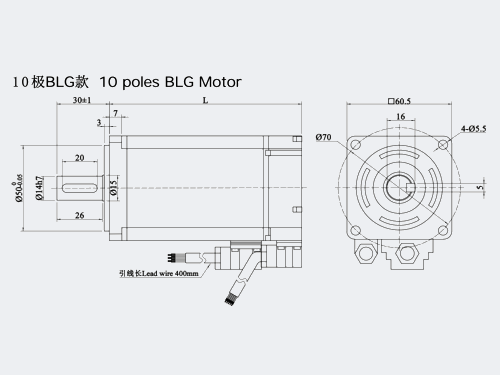

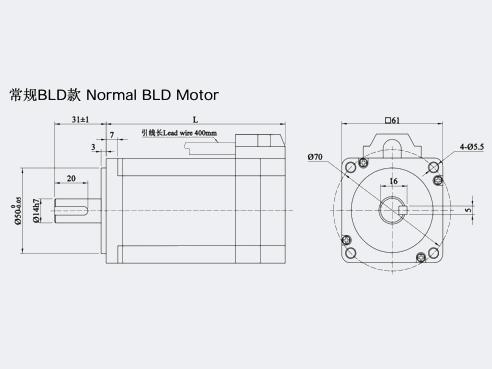

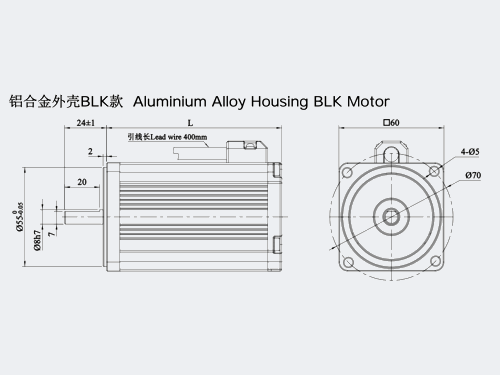

Model Dimension Drawings

Advantages

Compact high-output design: Delivers rated power from 70 W to 600 W in a 60 mm motor platform.
Flexible performance range: Offers rated speeds from 1,500 to 3,000 rpm and rated torque up to 1.91 N.m.
Strong peak torque: Provides up to 5.73 N.m for acceleration and intermittent load demands.
Broad voltage selection: Supports 12, 24, 36, 48, and 310 V DC or 220 V AC versions.
Configurable operating specifications: Voltage, power, speed, ambient-temperature range, and IP class can be customized.
Request A Quote

Continuous Rating Specifications

Model

Voltage
(V)

Rated Power
(W)

Rated Speed
(RPM)

Rated Current
(A)

Rated Torque
(N.m)

Peak Torque
(N.m)

No-load Current
(A)

Weight
(kg)

Motor Length L
(mm)

TC60BLD100-24A-30S

24

100

3000

6.0

0.32

0.95

≤1.2

1.0

68

TC60BLD100-24A-15S

24

100

1500

6.0

0.64

1.91

≤1.2

1.3

88

TC60BLD100-48A-30S

48

100

3000

3.0

0.32

0.95

≤0.6

1.0

68

TC60BLD200-24A-30S

24

200

3000

11.4

0.64

1.91

≤2.0

1.3

88

TC60BLD200-36A-20S

36

200

2000

7.6

0.95

2.86

≤1.5

1.6

108

TC60BLD200-48A-30S

48

200

3000

5.7

0.64

1.91

≤1.2

1.3

88

TC60BLD200-310A-30S

310/AC220

200

3000

0.9

0.64

1.91

≤0.2

1.3

88

TC60BLD300-48A-30S

48

300

3000

8.3

0.95

2.86

≤1.5

1.6

108

TC60BLD300-310A-30S

310

300

3000

1.3

0.95

2.86

≤0.2

1.6

108

TC60BLD400-48A-30S

48

400

3000

10.4

1.27

3.82

≤2.0

2.0

130

TC60BLD400-310A-30S

310/AC220

400

3000

1.7

1.27

3.82

≤0.3

2.0

130

TC60BLK70-12A-30S

12

70

3000

8.3

0.22

0.67

≤1.5

1.0

80

TC60BLK70-24A-30S

24

70

3000

4.2

0.22

0.67

≤0.8

1.0

80

TC60BLK150-24A-30S

24

150

3000

8.9

0.48

1.43

≤1.5

1.4

100

TC60BLK150-48A-30S

48

150

3000

4.5

0.48

1.43

≤1.0

1.4

100

TC60BLK200-24A-30S

24

200

3000

11.9

0.64

1.91

≤2.0

1.8

120

TC60BLK200-48A-30S

48

200

3000

6.0

0.64

1.91

≤1.2

1.8

120

TC60BLG400-48A-30S

48

400

3000

10.4

1.27

3.82

≤2.0

2.0

94

TC60BLG400-310A-30S

310/AC220

400

3000

1.6

1.27

3.82

≤0.3

2.0

94

TC60BLG600-48A-30S

48

600

3000

15.6

1.91

5.73

≤3.0

3.0

110

TC60BLG600-310A-30S

310/AC220

600

3000

2.4

1.91

5.73

≤0.5

3.0

110

Customization note: Voltage, power, speed, ambient temperature (default: -10°C to +40°C), and IP class (default: IP42) can be customized.
