TCJ2035-PG20 20 mm Brushless DC Planetary Gearmotor, 12/24 V

Specifications

Model: TCJ2035-1270-PG20-XX / TCJ2035-2495-PG20-XX
Rated Voltage: 12 V / 24 V
Rated Power: 11 W / 17 W
Gearbox Reduction Ratio: 4.38-850
Share as

Introduction

The TCJ2035-PG20 combines a compact 20 mm brushless DC motor with a precision planetary gearbox for high-torque, low-speed applications. Available for 12 V or 24 V operation, it delivers rated power from 11 to 17 W. Gear ratios from 4.38:1 to 850:1 provide rated output speeds from 7 to 1,781 rpm and torque up to 3.1 kgf.cm.

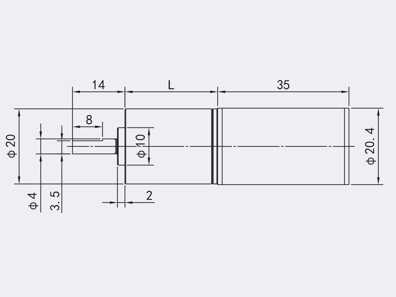

Model Dimension Drawings

Advantages

Compact planetary gearmotor: Integrates a brushless DC motor with a 20 mm planetary gearbox.
Wide range of gear ratios: Reduction ratios from 4.38:1 to 850:1 provide flexible speed and torque configurations.
Multiple torque options: Delivers rated output torque of up to 3.1 kgf.cm, depending on the selected ratio.
Efficient transmission: Gearbox efficiency reaches up to 80%, depending on the number of gear stages.
Multiple power options: Available in a 12 V/11 W version and a 24 V/17 W version.
Request A Quote

Motor Performance Parameters

Model

Rated Voltage (V)

No-load Speed (RPM)

No-load Current (A)

Rated Torque (gf.cm)

Rated Speed (RPM)

Rated Current (A)

Rated Power (W)

Stall Torque (gf.cm)

Stall Current (A)

TCJ2035-1270

12

7000

0.14

125

6000

0.90

11

900

6.00

TCJ2035-2495

24

9500

0.15

132

7800

0.70

17

765

3.50

Geared Motor Performance Parameters

Reduction Ratio

12V No-load Speed (RPM)

12V No-load Current (A)

12V Rated Torque (kgf.cm)

12V Rated Speed (RPM)

12V Rated Current (A)

12V Rated Power (W)

12V Efficiency (%)

12V Length L (mm)

24V No-load Speed (RPM)

24V No-load Current (A)

24V Rated Torque (kgf.cm)

24V Rated Speed (RPM)

24V Rated Current (A)

24V Rated Power (W)

24V Efficiency (%)

24V Length L (mm)

4.38

1598

0.16

0.44

1370

0.9

11

80

51.3

2169

0.15

0.46

1781

0.70

17

80

51.3

5.4

1296

0.16

0.54

1111

0.9

11

80

51.3

1759

0.15

0.57

1444

0.70

17

80

51.3

19

368

0.16

1.66

316

0.9

11

70

55.5

500

0.15

1.76

411

0.70

17

70

55.5

23.6

297

0.16

2.07

254

0.9

11

70

55.5

403

0.15

2.18

331

0.70

17

70

55.5

29

241

0.16

2.54

207

0.9

11

70

55.5

328

0.15

2.68

269

0.70

17

70

55.5

84

83

0.16

3.10

71

0.9

11

60

59.7

113

0.15

3.10

93

0.70

17

60

59.7

104

67

0.16

3.10

58

0.9

11

60

59.7

91

0.15

3.10

75

0.70

17

60

59.7

128

55

0.16

3.10

47

0.9

11

60

59.7

74

0.15

3.10

61

0.70

17

60

59.7

157

45

0.16

3.10

38

0.9

11

60

59.7

61

0.15

3.10

50

0.70

17

60

59.7

370

19

0.16

3.10

16

0.9

11

50

63.9

26

0.15

3.10

21

0.70

17

50

63.9

455

15

0.16

3.10

13

0.9

11

50

63.9

21

0.15

3.10

17

0.70

17

50

63.9

560

13

0.16

3.10

11

0.9

11

50

63.9

17

0.15

3.10

14

0.70

17

50

63.9

690

10

0.16

3.10

9

0.9

11

50

63.9

14

0.15

3.10

11

0.70

17

50

63.9

850

8

0.16

3.10

7

0.9

11

50

63.9

11

0.15

3.10

9

0.70

17

50

63.9
