TCK1630-E-PG16 16 mm Slotless Brushless DC Planetary Gearmotor with 1024 PPR Encoder

Specifications

Model: TCK1630-E-PG16

Encoder Type: Magnetic Encoder

Encoder Resolution: 1,024 PPR

Encoder Supply Voltage: 3.0-5.5 V

Share as

Request A Quote

Download PDF

Introduction

The TCK1630-E-PG16 combines a 16 mm brushless DC motor with a precision planetary gearbox and magnetic encoder. It offers a standard resolution of 1,024 PPR, optional resolutions from 8 to 2,048 PPR, and SPI or ABZ output. The encoder operates from 3.0 to 5.5 V and supports speeds up to 20,000 rpm.

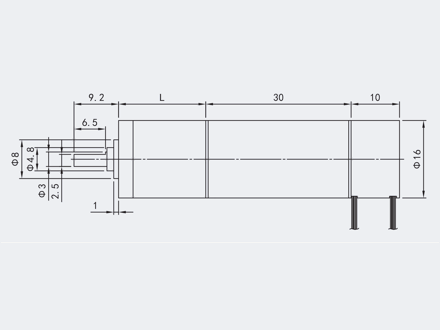

Model Dimension Drawings

Advantages

Compact integrated drive: Combines a slotless brushless motor, a PG16 planetary gearbox, and a magnetic encoder in a 16 mm diameter package.

Configurable resolution: Encoder options from 8 to 2,048 PPR support different speed- and position-control requirements.

Dual output capability: Supports SPI communication and ABZ incremental output for flexible control-system integration.

High-speed magnetic feedback: The non-contact encoder supports rotational speeds of up to 20,000 rpm.

Reliable operation: Supports a temperature range of -40 C to 125 C with integrated pin and power-supply protection.

Request A Quote

Technical Datas

No motor performance parameter table is shown in the supplied TCK1630-E-PG16 image. The image contains encoder electrical properties only; no values have been inferred or copied from another model.
