TCJ3650 36 mm Micro Brushless DC Motor, 12/24 V

Specifications

Model: TCJ3650-1245 / TCJ3650-24180

Rated Voltage: 12 V / 24 V

Rated Power: 14.4 W / 65 W

Rated Speed: 3845 rpm / 16105 rpm

Share as

Request A Quote

Download PDF

Introduction

The TCJ3650 is a compact 36 mm brushless DC motor available for 12 V / 24 V operation. The supplied performance table covers rated power of 14.4 W / 65 W, rated speeds of 3845 rpm / 16105 rpm, and rated torque of 250 gf.cm / 500 gf.cm. The source page also lists CW/CCW operation, FG signal output, and PWM speed control.

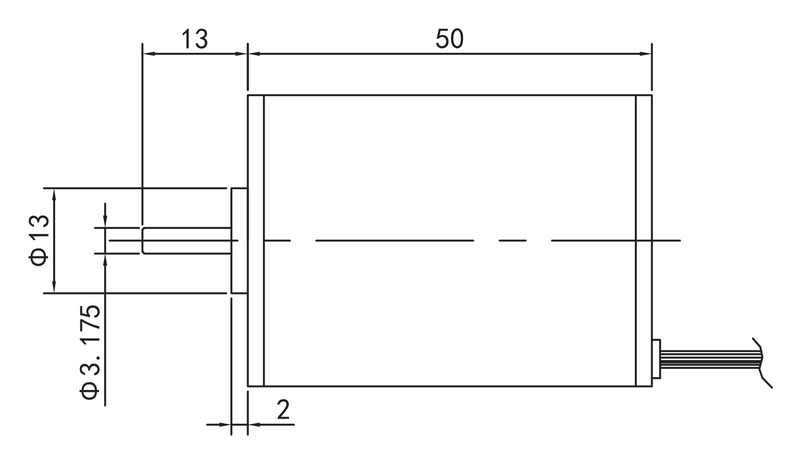

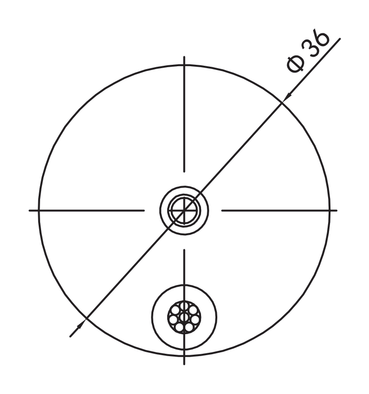

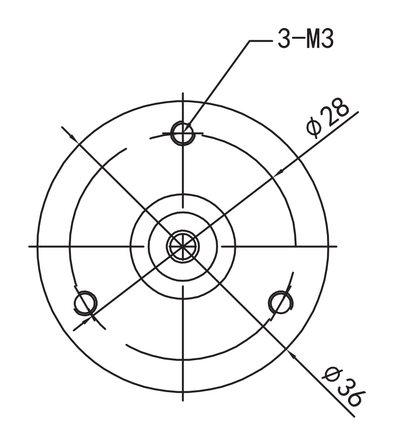

Model Dimension Drawings

Advantages

Compact frame: The 36 mm motor format supports space-constrained equipment designs.

Published performance options: Source-listed rated power is 14.4 W / 65 W, with rated speed of 3845 rpm / 16105 rpm.

Bidirectional operation: The source page lists CW/CCW rotation.

Speed-control and feedback functions: PWM speed control and FG signal output are listed on the source page.

Protection functions: Locked-rotor and overcurrent protection are listed in the function table.

Request A Quote

Motor Performance Parameters

Motor Model	Rated Voltage (V)	No-load Speed (rpm)	No-load Current (A)	Rated Torque (gf.cm)	Rated Speed (rpm)	Rated Current (A)	Rated Power (W)	Stall Torque (gf.cm)	Stall Current (A)
TCJ3650-1245	12	4300	0.14	250	3845	1.2	14.4	2600	10
TCJ3650-24180	24	17900	0.3	500	16105	2.7	65	3033	24
