TC5BLD300-GU 86 mm Brushless DC Gearmotor, 300 W, 12/24/36/48/310 V

Specifications

Model: TC5BLD300-GU

Gearhead: 5GU□K (Long-life, low-noise gearhead)

Rated Voltage: 12 V / 24 V / 36 V / 48 V / 310 V

Rated Power / Speed: 300 W / 3000 rpm

Share as

Request A Quote

Download PDF

Introduction

The TC5BLD300-GU combines the supplied 86 mm brushless DC motor with the Long-life, low-noise gearhead. The supplied catalog specifies 300 W, a rated motor speed of 3000 rpm, rated motor torque of 0.96 N·m, and peak motor torque of 2.87 N·m. Available voltage and reduction-ratio options are listed in the tables below.

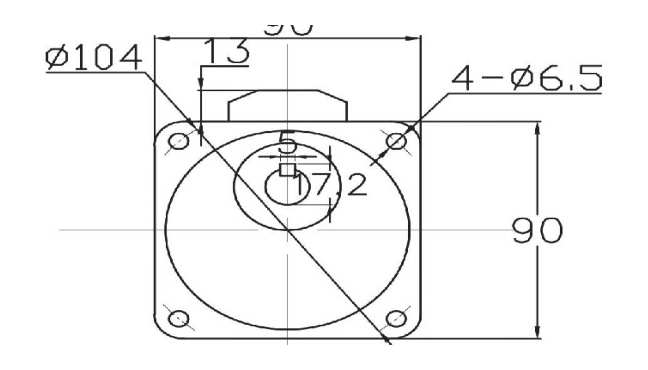

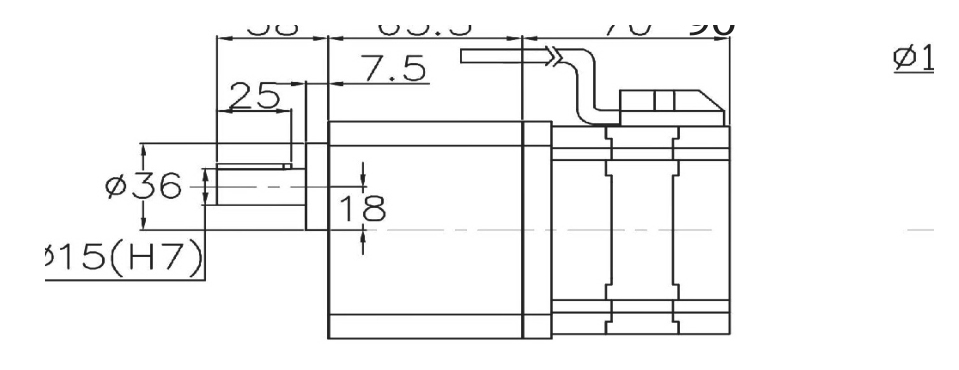

Model Dimension Drawings

Advantages

Matched drive configuration: The supplied 86 mm brushless DC motor is paired with the Long-life, low-noise gearhead.

Catalog-rated performance: 300 W at 3000 rpm, with rated motor torque of 0.96 N·m.

Peak motor torque: Up to 2.87 N·m according to the supplied catalog page.

Voltage options: 12 V / 24 V / 36 V / 48 V / 310 V.

Reduction-ratio selection: 3, 5, 7.5, 10, 12.5, 15, 18, 20, 25, 30, 36, 40, 50, 60, 75, 90, 100, 150, 180, 200.

Request A Quote

Continuous Rating Specifications

Model	Voltage (V)	Rated Power (W)	No-load Speed (rpm)	Rated Speed (rpm)	Rated Current (A)	Rated Torque (N.m)	Peak Torque (N.m)
TC5BLD300-12GU-30S	12	300	3300	3000	31.25	0.96	2.87
TC5BLD300-24GU-30S	24	300	3300	3000	15.63	0.96	2.87
TC5BLD300-36GU-30S	36	300	3300	3000	10.42	0.96	2.87
TC5BLD300-48GU-30S	48	300	3300	3000	7.81	0.96	2.87
TC5BLD300-310GU-30S	310	300	3300	3000	1.21	0.96	2.87

Gearhead Options

Gearhead Type	Gearhead Model	Available Reduction Ratios
Long-life, low-noise gearhead	5GU□K	3, 5, 7.5, 10, 12.5, 15, 18, 20, 25, 30, 36, 40, 50, 60, 75, 90, 100, 150, 180, 200

Catalog note: actual output speed may be approximately 2%-20% lower than the calculated value, depending on load.
