TCK1625-E-PG16 16 mm Slotless Brushless DC Planetary Gearmotor with 1024 PPR Encoder

Specifications

Model: TCK1625-E-PG16

Encoder Type: Magnetic Encoder

Encoder Resolution: 1,024 PPR

Encoder Supply Voltage: 3.0-5.5 V

Share as

Request A Quote

Download PDF

Introduction

The TCK1625-E-PG16 is a compact 16 mm brushless DC planetary gear motor equipped with a high-precision magnetic encoder. The standard encoder resolution is 1,024 PPR, with 8 to 2,048 PPR options available. It supports SPI and ABZ outputs, a 3.0-5.5 V supply, and speeds up to 20,000 rpm.

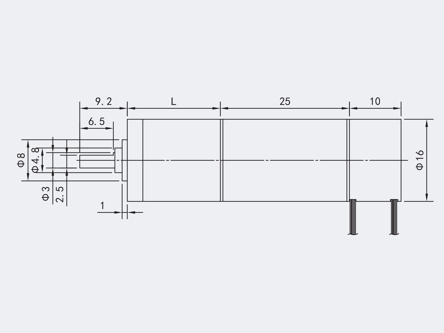

Model Dimension Drawings

Advantages

Integrated motion solution: Combines a slotless brushless motor, a PG16 planetary gearbox, and a magnetic encoder in a 16 mm diameter assembly.

High-resolution feedback: Multiple encoder resolutions from 8 to 2,048 PPR support different motion-control requirements.

Versatile output interfaces: Supports SPI communication and ABZ incremental output for flexible system integration.

High-speed magnetic sensing: The non-contact encoder supports rotational speeds of up to 20,000 rpm.

Reliable operation: Supports temperatures from -40 C to 125 C and includes integrated pin and power-supply protection.

Request A Quote

Technical Datas

No motor performance parameter table is shown in the supplied TCK1625-E-PG16 image. The image contains encoder electrical properties only; no values have been inferred or copied from another model.
