TCK1242-E-PG12 12 mm Slotless Brushless DC Planetary Gearmotor with Encoder

Specifications

Model: TCK1242-E-PG12
Encoder Resolution: 1,024 PPR
Encoder Type: Magnetic Encoder
Encoder Supply Voltage: 3.0-5.5 V
Share as

Introduction

The TCK1242-E-PG12 is a compact 12 mm brushless DC gear motor equipped with a high-precision magnetic encoder. The encoder offers a standard resolution of 1,024 PPR, optional resolutions from 8 to 2,048 PPR, and SPI or ABZ output. It operates from 3.0 to 5.5 V and supports speeds up to 20,000 rpm.

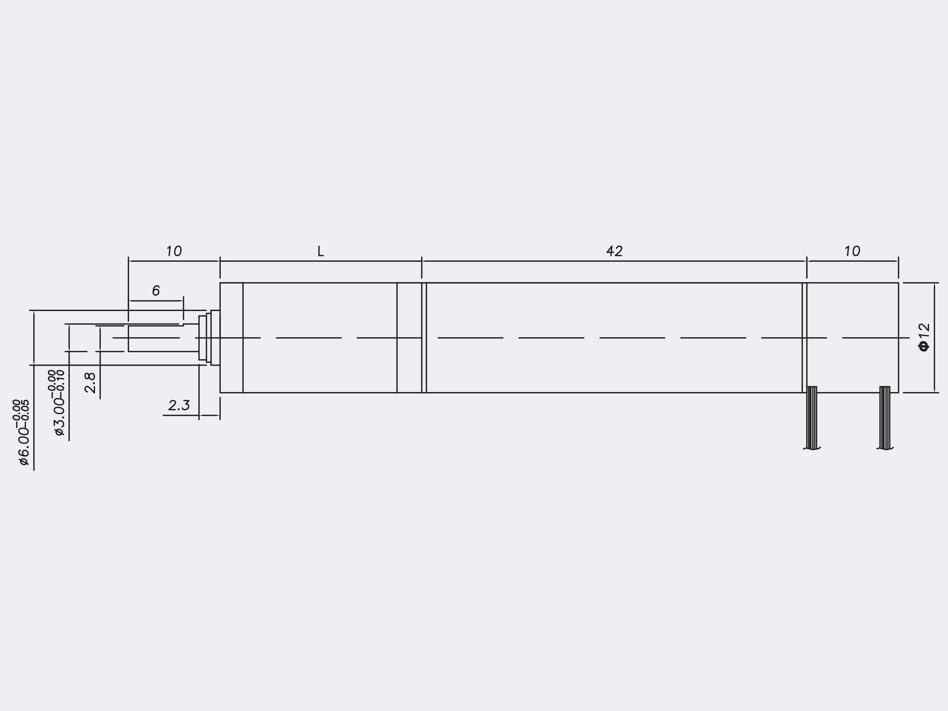

Model Dimension Drawings

Advantages

Integrated motion solution: Combines a 12 W slotless brushless motor, a PG12 planetary gearbox, and a magnetic encoder in a compact assembly.
High-resolution feedback: Multiple encoder resolutions from 8 to 2,048 PPR support different positioning and speed-control requirements.
Versatile output interfaces: Supports SPI communication and ABZ incremental output for flexible system integration.
High-speed magnetic sensing: The non-contact encoder supports rotational speeds of up to 20,000 rpm.
Reliable operation: Supports an operating temperature range of −40°C to 125°C and includes integrated pin and power-supply protection.
