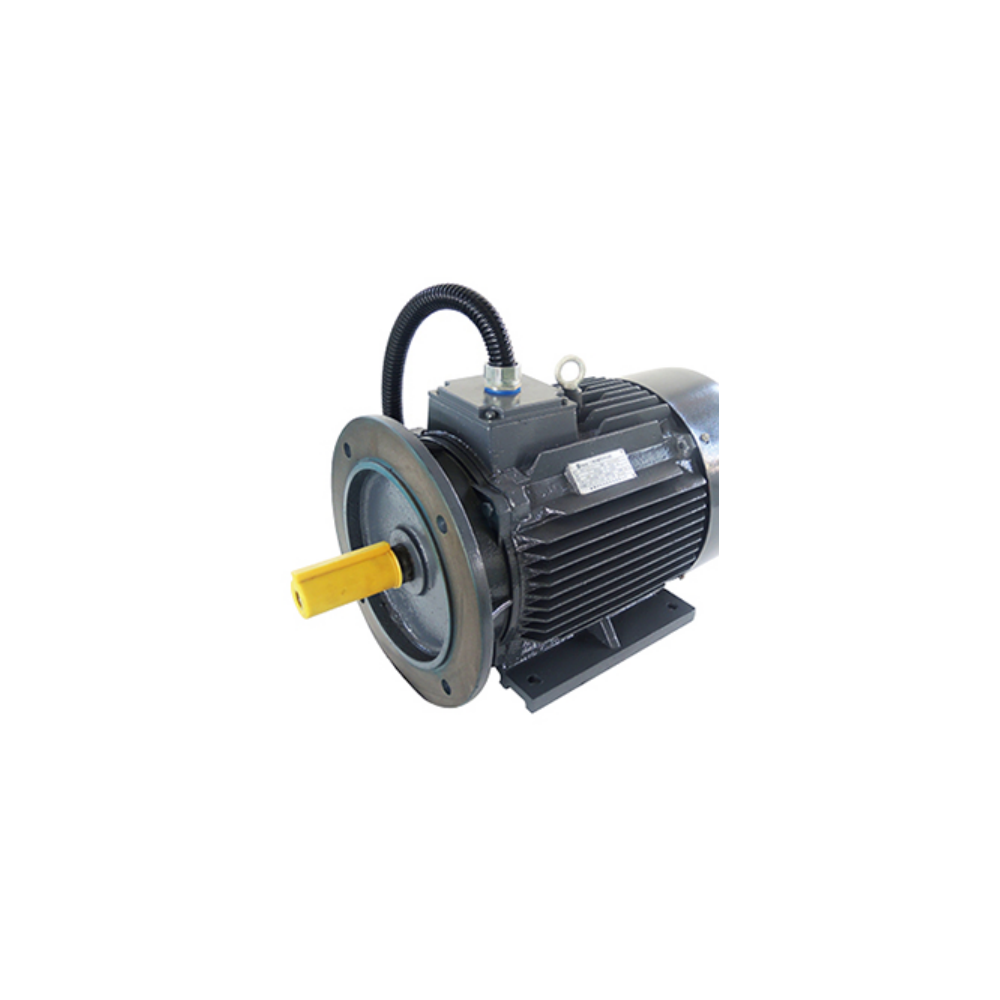

DYTYP Variable-Frequency Permanent Magnet Synchronous Motor, 5.5–160 kW

Specifications

Model: DYTYP Series

Rated Voltage: 380 V (other voltages available on request)

Rated Power: 5.5–160 kW

Rated Speed: 750–3,000 r/min

Share as

Request A Quote

Download PDF

Introduction

The DYTYP series comprises variable-frequency speed-regulating three-phase permanent magnet synchronous motors rated from 5.5 to 160 kW. The catalog specifies a fully enclosed construction with self-cooling or an independent fan, F-class insulation, S1 duty and IP55 protection. Standard voltage is 380 V, with other voltages available on request, and the motor is powered by a variable-frequency drive. The catalog specifies constant-torque operation up to rated frequency and constant-power operation above rated frequency. Applications include fans, pumps, compressors, belt conveyors and other machinery used in petrochemical, mining and textile operations.

Model Designation

DYTYP 132S 15-7.5 L: DYTYP identifies the variable-frequency PMSM series; 132S is the frame size; 15 denotes 1,500 r/min; 7.5 is rated output in kW; L denotes an aluminium housing. If L is omitted, the housing is cast iron.

Model Dimension Drawings

Advantages

Variable-frequency operation: Designed for operation from a variable-frequency drive.

Efficiency classification: The source catalog states compliance with Level 1 under GB/T 30523-2013.

Broad output range: Published ratings cover 5.5–160 kW and 750–3,000 r/min.

Industrial enclosure: Fully enclosed construction with self-cooling or independent-fan configurations, F-class insulation, S1 duty and IP55 protection.

Application flexibility: Intended for fans, pumps, compressors, belt conveyors and related industrial machinery.

Request A Quote

Technical Data

Model	Rated output (kW)	Rated voltage (V)	Rated current (A)	Poles	Frequency (Hz)	Speed (r/min)	Rated torque (N·m)	Efficiency (%)
DYTYP132S7.5-5.5	5.5	380	9.4	8	50	750	70.0	92.3
DYTYP132M7.5-7.5	7.5	380	12.7	8	50	750	95.5	93.2
DYTYP160L7.5-9	9	380	15.2	8	50	750	114.6	93.5
DYTYP160L7.5-11	11	380	18.6	8	50	750	140.1	93.7
DYTYP180L7.5-15	15	380	25.2	8	50	750	191.0	94.1
DYTYP225M7.5-30	30	380	49.9	8	50	750	382.0	95.1
DYTYP250M7.5-37	37	380	61.4	8	50	750	471.1	95.3
DYTYP280M7.5-45	45	380	74.6	8	50	750	573.0	95.5
DYTYP280M7.5-55	55	380	91.1	8	50	750	700.3	95.6
DYTYP280M7.5-75	75	380	124.0	8	50	750	955.0	95.7
DYTYP280M7.5-90	90	380	148.8	8	50	750	1146.0	95.3
DYTYP132S10-5.5	5.5	380	9.3	8	66.7	1000	52.5	93.4
DYTYP132S10-7.5	7.5	380	12.6	8	66.7	1000	71.6	94.0
DYTYP132M10-9	9	380	15.1	8	66.7	1000	86.0	94.3
DYTYP160M10-11	11	380	18.4	8	66.7	1000	105.1	94.5
DYTYP160L10-15	15	380	25.0	8	66.7	1000	143.3	94.9
DYTYP180M10-15	15	380	25.0	8	66.7	1000	143.3	94.9
DYTYP180L10-18.5	18.5	380	30.7	8	66.7	1000	176.7	95.3
DYTYP180L10-22	22	380	36.4	6	50.0	1000	210.1	95.6
DYTYP200L10-22	22	380	36.4	6	50.0	1000	210.1	95.6
DYTYP200L10-30	30	380	49.6	6	50.0	1000	286.5	95.8
DYTYP225S10-37	37	380	61.0	8	66.7	1000	353.4	96.0
DYTYP225M10-45	45	380	74.0	8	66.7	1000	429.8	96.2
DYTYP225M10-55	55	380	90.4	8	66.7	1000	525.3	96.3
DYTYP280M10-75	75	380	123.1	8	66.7	1000	716.3	96.4
DYTYP280M10-90	90	380	147.6	8	66.7	1000	859.5	96.5
DYTYP280M10-110	110	380	180.4	8	66.7	1000	1050.5	96.5
DYTYP112M15-5.5	5.5	380	9.5	4	50	1500	35.0	92.1
DYTYP132S15-7.5	7.5	380	12.8	8	100	1500	47.8	92.6
DYTYP132S15-9	9	380	15.3	8	100	1500	57.3	93.3
DYTYP132S15-11	11	380	18.6	8	100	1500	70.0	93.6
DYTYP132M15-15	15	380	25.3	8	100	1500	95.5	94.0
DYTYP160M15-15	15	380	25.3	8	100	1500	95.5	94.0
DYTYP160M15-18.5	18.5	380	31.0	8	100	1500	117.8	94.3
DYTYP160L15-22	22	380	36.8	8	100	1500	140.1	94.7
DYTYP180M15-22	22	380	36.8	8	100	1500	140.1	94.2
DYTYP180L15-30	30	380	50.0	8	100	1500	191.0	95.0
DYTYP200L15-30	30	380	50.0	6	75	1500	191.0	95.0
DYTYP200L15-37	37	380	61.4	6	75	1500	235.6	95.3
DYTYP225S15-45	45	380	74.5	8	100	1500	286.5	95.6
DYTYP225S15-55	55	380	90.9	8	100	1500	350.2	95.8
DYTYP250M15-75	75	380	123.6	8	100	1500	477.5	96.0
DYTYP250M15-90	90	380	148.1	8	100	1500	573.0	96.2
DYTYP280M15-110	110	380	180.6	8	100	1500	700.3	96.4
DYTYP280M15-132	132	380	216.5	8	100	1500	840.4	96.5
DYTYP112M30-5.5	5.5	380	9.3	4	100	3000	17.5	94.0
DYTYP112M30-7.5	7.5	380	12.6	4	100	3000	23.9	94.5
DYTYP132S30-11	11	380	18.3	8	200	3000	35.0	95.0
DYTYP132S30-15	15	380	24.9	8	200	3000	47.8	95.3
DYTYP160M30-18.5	18.5	380	30.6	8	200	3000	58.9	95.6
DYTYP160M30-22	22	380	36.3	8	200	3000	70.0	95.9
DYTYP160M30-30	30	380	49.4	8	200	3000	95.5	96.1
DYTYP160M30-37	37	380	60.8	8	200	3000	117.8	96.3
DYTYP180M30-45	45	380	73.9	8	200	3000	143.3	96.4
DYTYP200L30-55	55	380	90.2	6	150	3000	175.1	96.5
DYTYP225S30-75	75	380	122.9	8	200	3000	238.8	96.6
DYTYP225S30-90	90	380	147.3	8	200	3000	286.5	96.2
DYTYP250M30-110	110	380	179.8	8	200	3000	350.2	96.8
DYTYP250M30-132	132	380	215.8	8	200	3000	420.2	96.3
DYTYP280M30-160	160	380	261.1	8	200	3000	509.3	97.0
