TCL4235 42 mm Micro Brushless DC Motor, 12/24 V

Specifications

Model: TCL4235-1290 / TCL4235-2475

Rated Voltage: 12 V / 24 V

Rated Power: 40 W / 38 W

Rated Speed: 6900 rpm / 6000 rpm

Share as

Request A Quote

Download PDF

Introduction

The TCL4235 is a compact 42 mm brushless DC motor available for 12 V / 24 V operation. The supplied performance table covers rated power of 40 W / 38 W, rated speeds of 6900 rpm / 6000 rpm, and rated torque of 400 gf.cm / 500 gf.cm. The source page also lists CW/CCW operation, FG signal output, and PWM speed control.

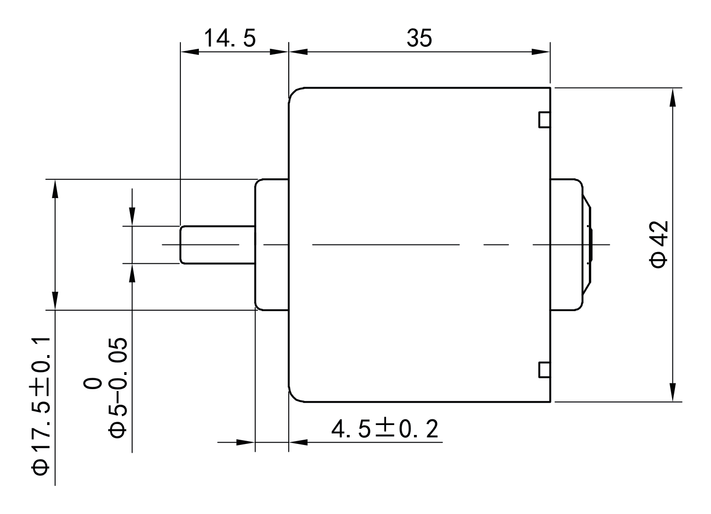

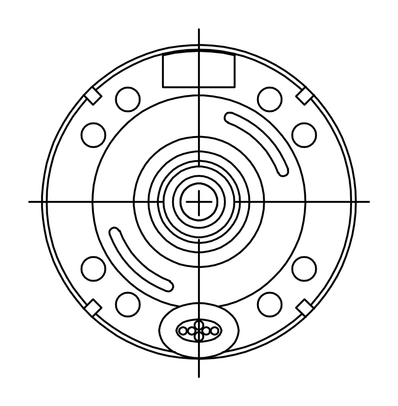

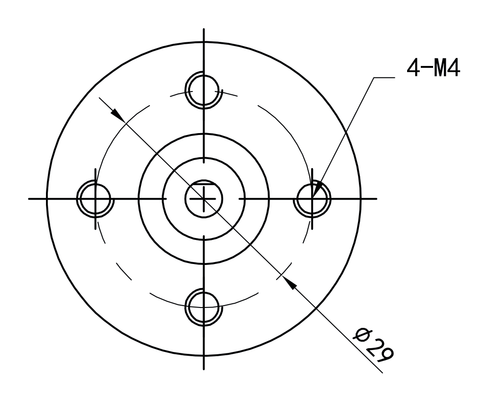

Model Dimension Drawings

Advantages

Compact frame: The 42 mm motor format supports space-constrained equipment designs.

Published performance options: Source-listed rated power is 40 W / 38 W, with rated speed of 6900 rpm / 6000 rpm.

Bidirectional operation: The source page lists CW/CCW rotation.

Speed-control and feedback functions: PWM speed control and FG signal output are listed on the source page.

Protection functions: Locked-rotor and overcurrent protection are listed in the function table.

Request A Quote

Motor Performance Parameters

Motor Model	Rated Voltage (V)	No-load Speed (rpm)	No-load Current (A)	Rated Torque (gf.cm)	Rated Speed (rpm)	Rated Current (A)	Rated Power (W)	Stall Torque (gf.cm)	Stall Current (A)
TCL4235-1290	12	9000	0.62	400	6900	3.2	40	3650	15
TCL4235-2475	24	7500	0.3	500	6000	1.6	38	4700	16
