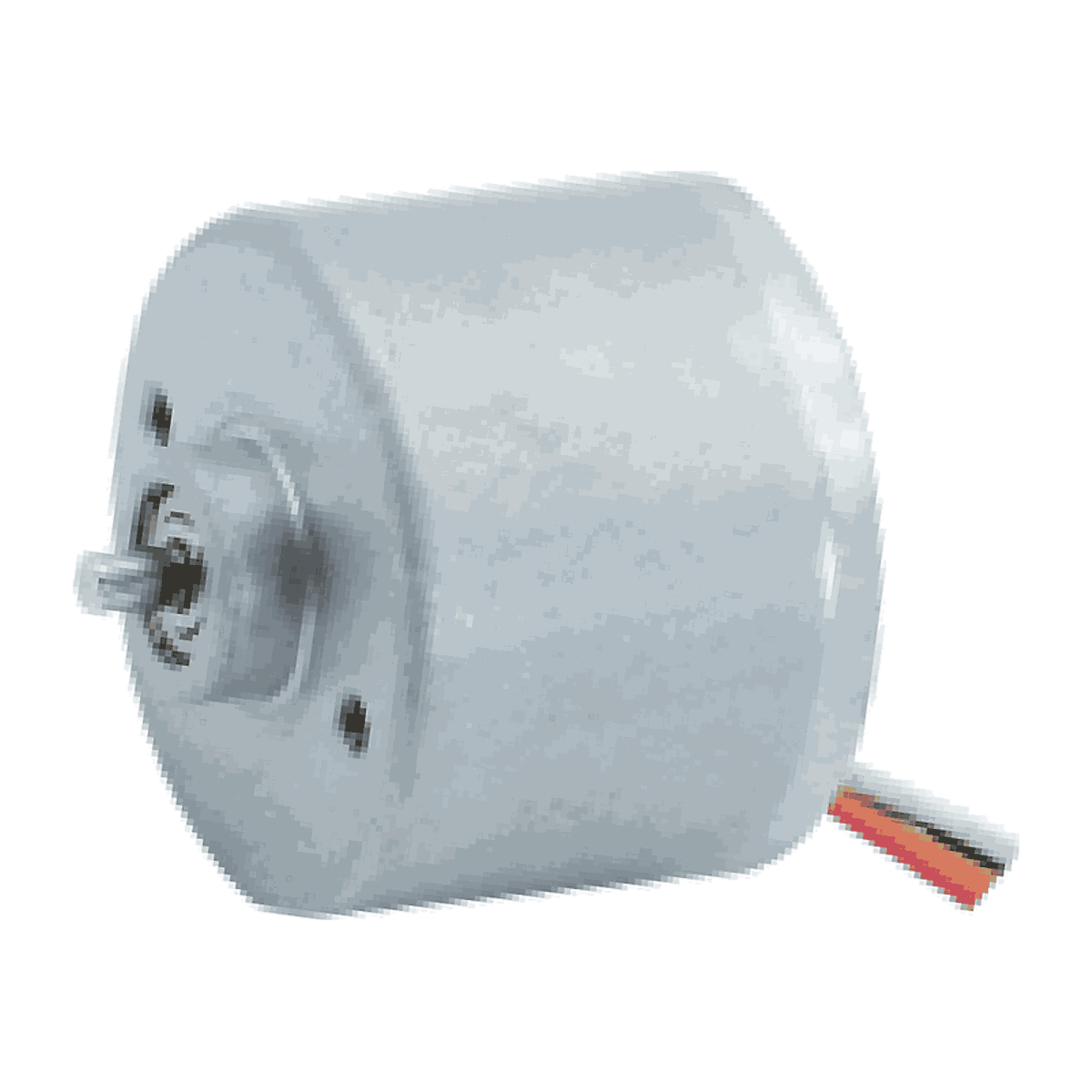

TCL3626 36 mm Micro Brushless DC Motor, 12/24 V

Specifications

Model: TCL3626-1265 / TCL3626-2460

Rated Voltage: 12 V / 24 V

Rated Power: 14.4 W / 12 W

Rated Speed: 5649 rpm / 5022 rpm

Share as

Request A Quote

Download PDF

Introduction

The TCL3626 is a compact 36 mm brushless DC motor available for 12 V / 24 V operation. The supplied performance table covers rated power of 14.4 W / 12 W, rated speeds of 5649 rpm / 5022 rpm, and rated torque of 200 gf.cm / 270 gf.cm. The source page also lists CW/CCW operation, FG signal output, and PWM speed control.

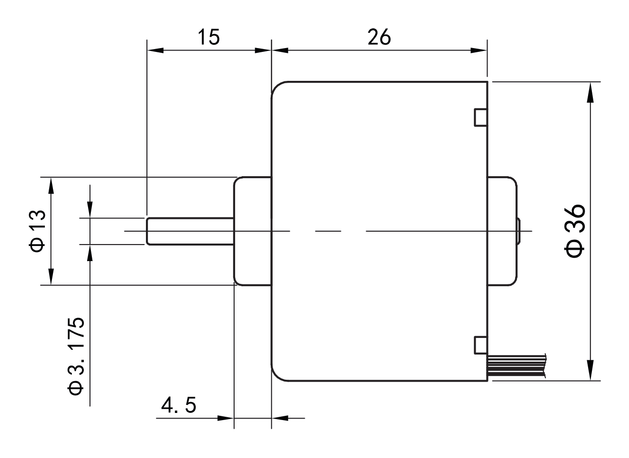

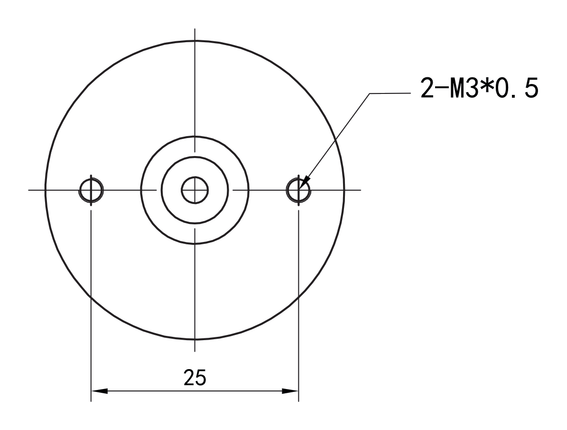

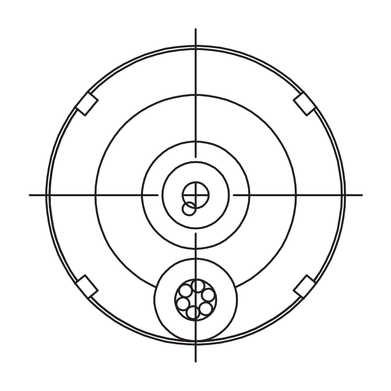

Model Dimension Drawings

Advantages

Compact frame: The 36 mm motor format supports space-constrained equipment designs.

Published performance options: Source-listed rated power is 14.4 W / 12 W, with rated speed of 5649 rpm / 5022 rpm.

Bidirectional operation: The source page lists CW/CCW rotation.

Speed-control and feedback functions: PWM speed control and FG signal output are listed on the source page.

Protection functions: Locked-rotor and overcurrent protection are listed in the function table.

Request A Quote

Motor Performance Parameters

Motor Model	Rated Voltage (V)	No-load Speed (rpm)	No-load Current (A)	Rated Torque (gf.cm)	Rated Speed (rpm)	Rated Current (A)	Rated Power (W)	Stall Torque (gf.cm)	Stall Current (A)
TCL3626-1265	12	6500	0.17	200	5649	1.2	14.4	1267	7.5
TCL3626-2460	24	5800	0.08	270	5022	0.5	12	1270	3.4
