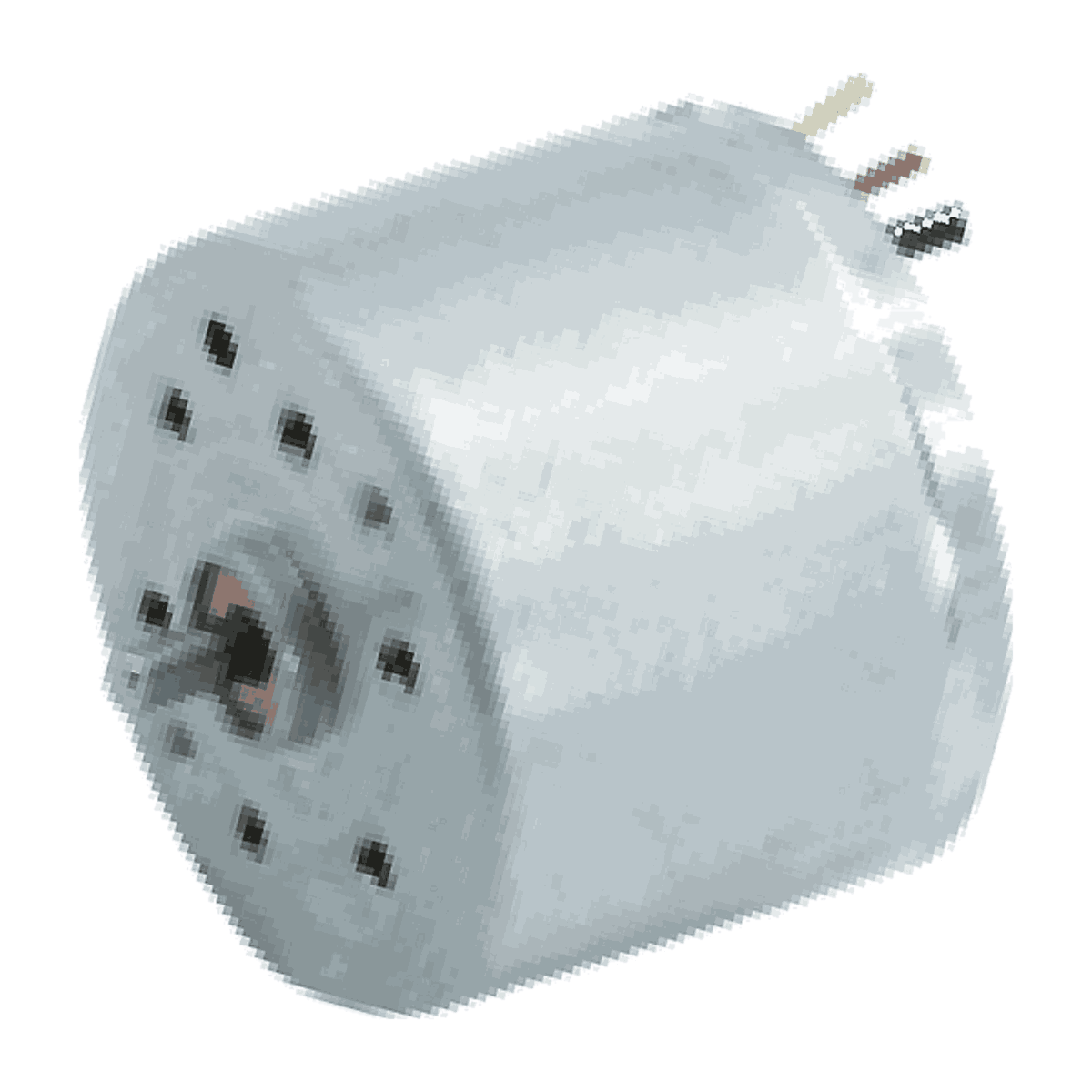

TCL2418 24 mm Micro Brushless DC Motor, 12/24 V

Specifications

Model: TCL2418-1270 / TCL2418-2490

Rated Voltage: 12 V / 24 V

Rated Power: 5 W / 10 W

Rated Speed: 5740 rpm / 7611 rpm

Share as

Request A Quote

Download PDF

Introduction

The TCL2418 is a compact 24 mm brushless DC motor available for 12 V / 24 V operation. The supplied performance table covers rated power of 5 W / 10 W, rated speeds of 5740 rpm / 7611 rpm, and rated torque of 58 gf.cm / 89 gf.cm. The source page also lists CW/CCW operation, FG signal output, and PWM speed control.

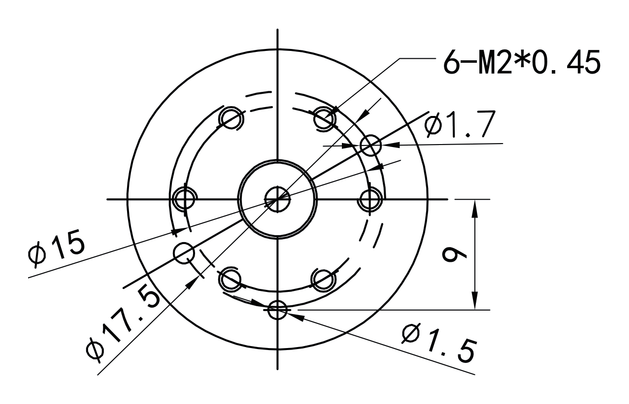

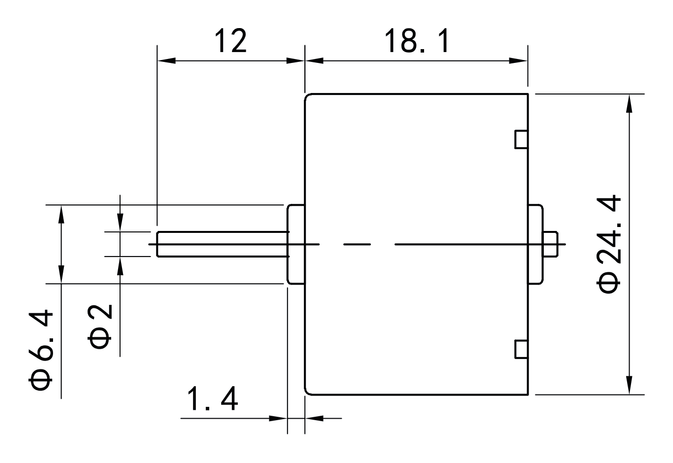

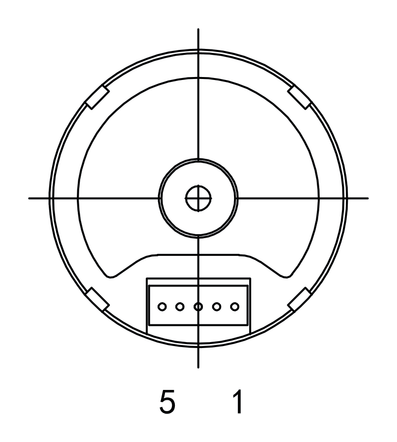

Model Dimension Drawings

Advantages

Compact frame: The 24 mm motor format supports space-constrained equipment designs.

Published performance options: Source-listed rated power is 5 W / 10 W, with rated speed of 5740 rpm / 7611 rpm.

Bidirectional operation: The source page lists CW/CCW rotation.

Speed-control and feedback functions: PWM speed control and FG signal output are listed on the source page.

Protection functions: Locked-rotor and overcurrent protection are listed in the function table.

Request A Quote

Motor Performance Parameters

Motor Model	Rated Voltage (V)	No-load Speed (rpm)	No-load Current (A)	Rated Torque (gf.cm)	Rated Speed (rpm)	Rated Current (A)	Rated Power (W)	Stall Torque (gf.cm)	Stall Current (A)
TCL2418-1270	12	6700	0.07	58	5740	0.4	5	405	2.5
TCL2418-2490	24	9000	0.08	89	7611	0.4	10	578	2.4
