TCJ4560-PG45 45 mm Micro Brushless DC Planetary Gearmotor, 12/24 V

Specifications

Model: TCJ4560-1250-PG45-XX / TCJ4560-2475-PG45-XX

Rated Voltage: 12 V / 24 V

Rated Power: 50 W / 72 W

Gearbox Reduction Ratio: 3.7-625

Share as

Request A Quote

Download PDF

Introduction

The TCJ4560-PG45 combines a compact 45 mm brushless DC motor with a reduction gearbox for lower-speed, higher-torque operation. The supplied variants operate at 12 V / 24 V with rated power of 50 W / 72 W. Available reduction ratios from 3.7-625:1 provide rated output speeds of 6-1486 rpm and rated output torque up to 70 kgf.cm.

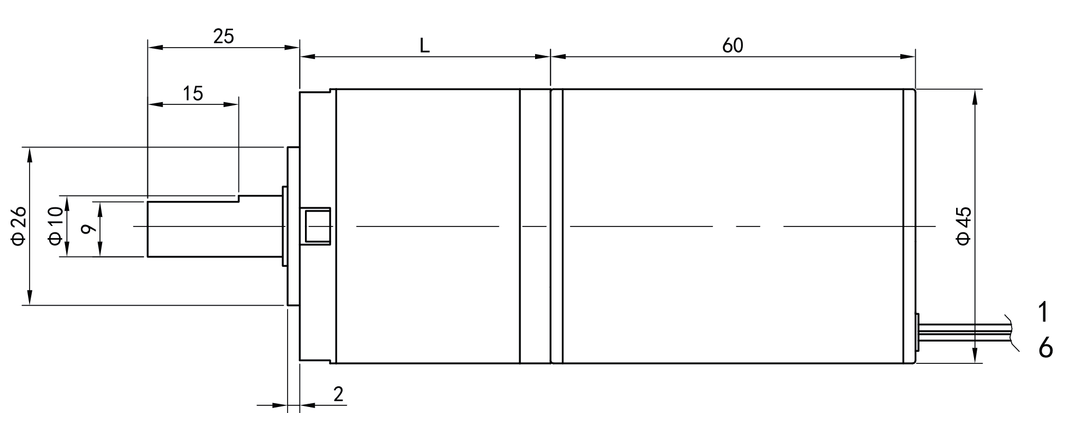

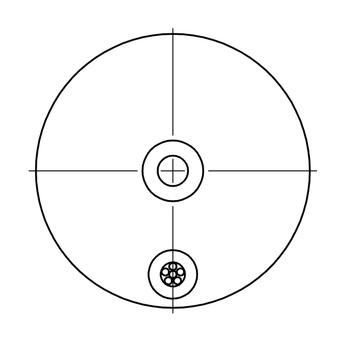

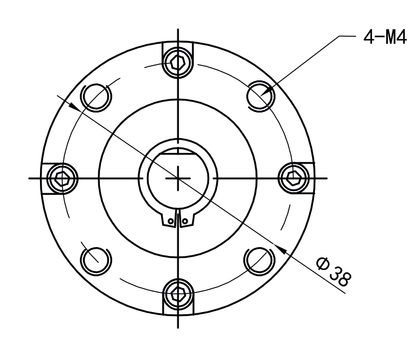

Model Dimension Drawings

Advantages

Compact geared configuration: Integrates a 45 mm brushless DC motor and gearbox in one assembly.

Broad ratio selection: Available reduction ratios range from 3.7:1 to 625:1.

Multiple output-torque options: Rated output torque reaches up to 70 kgf.cm, depending on ratio and voltage.

Published gearbox efficiency: The supplied table lists efficiency values from 50% to 80%.

Voltage options: Available in 12 V / 24 V versions.

Request A Quote

Motor Performance Parameters

Motor Model	Rated Voltage (V)	No-load Speed (rpm)	No-load Current (A)	Rated Torque (gf.cm)	Rated Speed (rpm)	Rated Current (A)	Rated Power (W)	Stall Torque (gf.cm)	Stall Current (A)
TCJ4560-1250	12	5000	0.23	900	3700	4.2	50	3500	13
TCJ4560-2475	24	7500	0.31	1000	5500	3	72	5000	17

Geared Motor Performance Parameters

TCJ4560-1250-PG45-XX | Rated Voltage: 12 V

Reduction Ratio	No-load Speed (rpm)	No-load Current (A)	Rated Torque (kgf.cm)	Rated Speed (rpm)	Rated Current (A)	Rated Power (W)	Efficiency (%)	Length (mm)
3.7	1351	0.25	2.66	1000	4.2	50	80	103.1
5	1000	0.25	3.6	740	4.2	50	80	103.1
13.7	365	0.25	8.63	270	4.2	50	70	101.2
18.5	270	0.25	11.66	200	4.2	50	70	101.2
25	200	0.25	15.75	148	4.2	50	70	101.2
51	98	0.25	27.54	73	4.2	50	60	109.3
68.5	73	0.25	36.99	54	4.2	50	60	109.3
92.5	54	0.25	49.95	40	4.2	50	60	109.3
125	40	0.25	67.5	30	4.2	50	60	109.3
188	27	0.25	70	20	4.2	50	50	120.4
256	20	0.25	70	14	4.2	50	50	120.4
345	14	0.25	70	11	4.2	50	50	120.4
462	11	0.25	70	8	4.2	50	50	120.4
625	8	0.25	70	6	4.2	50	50	120.4

TCJ4560-2475-PG45-XX | Rated Voltage: 24 V

Reduction Ratio	No-load Speed (rpm)	No-load Current (A)	Rated Torque (kgf.cm)	Rated Speed (rpm)	Rated Current (A)	Rated Power (W)	Efficiency (%)	Length (mm)
3.7	2027	0.35	2.96	1486	3	72	80	103.1
5	1500	0.35	4	1100	3	72	80	103.1
13.7	547	0.35	9.59	401	3	72	70	101.2
18.5	405	0.35	12.95	297	3	72	70	101.2
25	300	0.35	17.5	220	3	72	70	101.2
51	147	0.35	30.6	108	3	72	60	109.3
68.5	109	0.35	41.1	80	3	72	60	109.3
92.5	81	0.35	55.5	59	3	72	60	109.3
125	60	0.35	70	44	3	72	60	109.3
188	40	0.35	70	29	3	72	50	120.4
256	29	0.35	70	21	3	72	50	120.4
345	22	0.35	70	16	3	72	50	120.4
462	16	0.35	70	12	3	72	50	120.4
625	12	0.35	70	9	3	72	50	120.4
