TCJ3257 32 mm Micro Brushless DC Motor, 12/24 V

Specifications

Model: TCJ3257-1290 / TCJ3257-2490

Rated Voltage: 12 V / 24 V

Rated Power: 22 W / 29 W

Rated Speed: 6800 rpm / 6400 rpm

Share as

Request A Quote

Download PDF

Introduction

The TCJ3257 is a compact 32 mm brushless DC motor available for 12 V / 24 V operation. The supplied performance table covers rated power of 22 W / 29 W, rated speeds of 6800 rpm / 6400 rpm, and rated torque of 300 gf.cm / 400 gf.cm. The source page also lists CW/CCW operation, FG signal output, and PWM speed control.

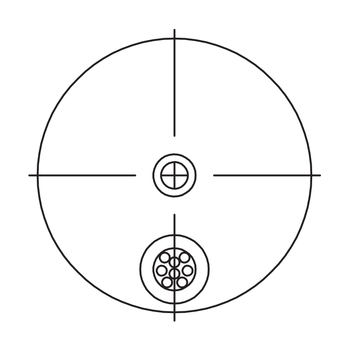

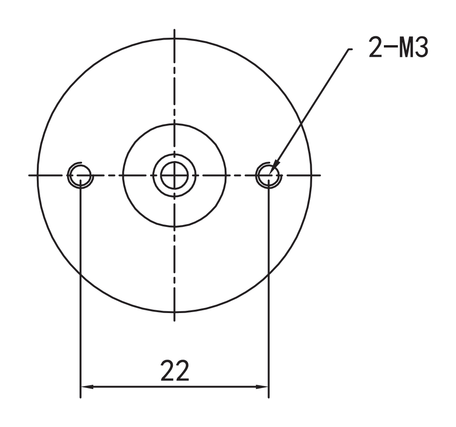

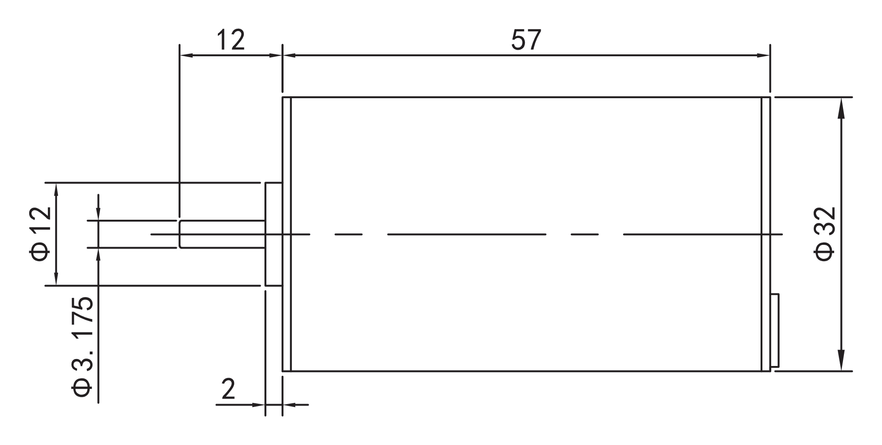

Model Dimension Drawings

Advantages

Compact frame: The 32 mm motor format supports space-constrained equipment designs.

Published performance options: Source-listed rated power is 22 W / 29 W, with rated speed of 6800 rpm / 6400 rpm.

Bidirectional operation: The source page lists CW/CCW rotation.

Speed-control and feedback functions: PWM speed control and FG signal output are listed on the source page.

Protection functions: Locked-rotor and overcurrent protection are listed in the function table.

Request A Quote

Motor Performance Parameters

Motor Model	Rated Voltage (V)	No-load Speed (rpm)	No-load Current (A)	Rated Torque (gf.cm)	Rated Speed (rpm)	Rated Current (A)	Rated Power (W)	Stall Torque (gf.cm)	Stall Current (A)
TCJ3257-1290	12	9000	0.35	300	6800	1.8	22	1500	10
TCJ3257-2490	24	8500	0.15	400	6400	1.2	29	1600	7.5
