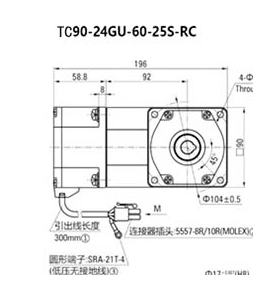

The TC90-GU-RC/RT combines the supplied 90 mm brushless DC motor with the Arc-cone right-angle reduction gearbox. The motor performance page rates the 120 W motor at 2500 rpm, with rated motor torque of 0.458 N·m and peak motor torque of 0.687 N·m. The gearbox page also lists 60 W and 90 W motor combinations. Available voltage and reduction-ratio options are listed in the tables below.
Model | Voltage (V) | Rated Power (W) | No-load Speed (rpm) | Rated Speed (rpm) | Rated Current (A) | Rated Torque (N.m) | Peak Torque (N.m) |
TC90-24-120-25S | 24 (36/48 optional) | 120 | — | 2500 | 6.8 | 0.458 | 0.687 |
Gearhead Type | Gearhead Model | Available Reduction Ratios |
Arc-cone right-angle reduction gearbox | TC90-□GU-60/90/120-25S-5GU□RC/RT | 7.5, 9, 10, 12.5, 15, 18, 20, 25, 30, 36, 50, 60, 75, 90, 100, 120, 150, 180 |
Catalog note: actual output speed may be approximately 2%-20% lower than the calculated value, depending on load.
