TC6BLD750-GU 86 mm Brushless DC Gearmotor, 750 W, 24/36/48/310 V

Specifications

Model: TC6BLD750-GU

Gearhead: 6GU□K (Long-life, low-noise gearhead)

Rated Voltage: 24 V / 36 V / 48 V / 310 V

Rated Power / Speed: 750 W / 3000 rpm

Share as

Request A Quote

Download PDF

Introduction

The TC6BLD750-GU combines the supplied 86 mm brushless DC motor with the Long-life, low-noise gearhead. The supplied catalog specifies 750 W, a rated motor speed of 3000 rpm, rated motor torque of 2.39 N·m, and peak motor torque of 7.16 N·m. Available voltage and reduction-ratio options are listed in the tables below.

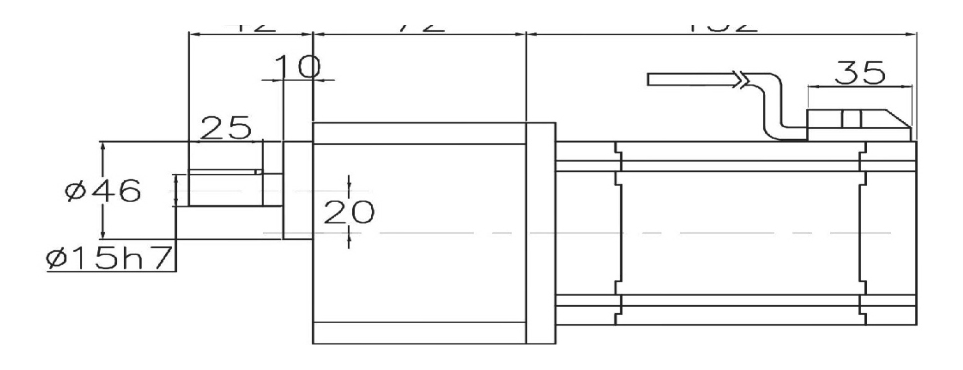

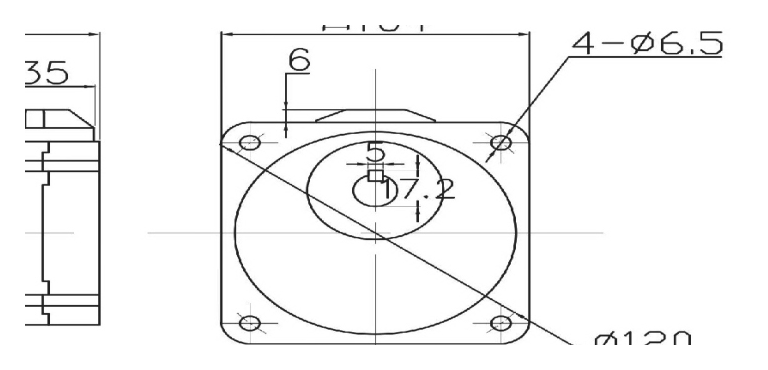

Model Dimension Drawings

Advantages

Matched drive configuration: The supplied 86 mm brushless DC motor is paired with the Long-life, low-noise gearhead.

Catalog-rated performance: 750 W at 3000 rpm, with rated motor torque of 2.39 N·m.

Peak motor torque: Up to 7.16 N·m according to the supplied catalog page.

Voltage options: 24 V / 36 V / 48 V / 310 V.

Reduction-ratio selection: 3, 5, 7.5, 10, 12.5, 15, 18, 20, 25, 30, 36, 40, 50, 60, 75, 90, 100, 150, 180, 200, 300.

Request A Quote

Continuous Rating Specifications

Model	Voltage (V)	Rated Power (W)	No-load Speed (rpm)	Rated Speed (rpm)	Rated Current (A)	Rated Torque (N.m)	Peak Torque (N.m)
TC6BLD750-24GU-30S	24	750	3300	3000	39.06	2.39	7.16
TC6BLD750-36GU-30S	36	750	3300	3000	26.04	2.39	7.16
TC6BLD750-48GU-30S	48	750	3300	3000	19.53	2.39	7.16
TC6BLD750-310GU-30S	310	750	3300	3000	3.02	2.39	7.16

Gearhead Options

Gearhead Type	Gearhead Model	Available Reduction Ratios
Long-life, low-noise gearhead	6GU□K	3, 5, 7.5, 10, 12.5, 15, 18, 20, 25, 30, 36, 40, 50, 60, 75, 90, 100, 150, 180, 200, 300

Catalog note: actual output speed may be approximately 2%-20% lower than the calculated value, depending on load.
